2. Rising or Falling Supplies

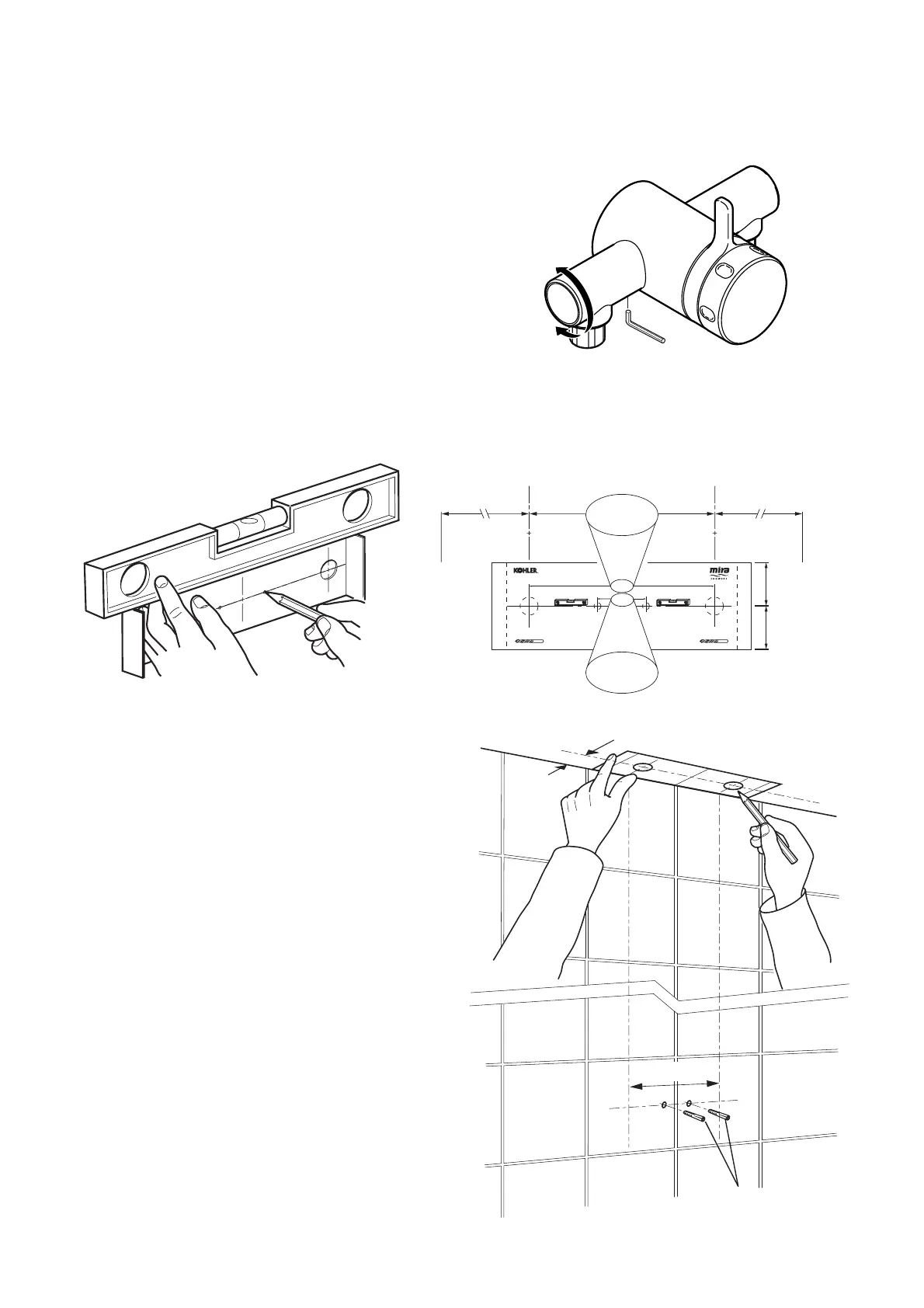

2.1 Loosen the Grubscrew on each
Elbow using the 2.5 mm Hexagon
Key (supplied) and rotate the Elbow
90° as required. Retighten the
Grubscrews.
2.2 Use the Installation Template to mark
the positions of the fi xing holes for the
Backplate.
Note! Allow a minimum of 150 mm
either side of the unit to allow servicing
of the hot and cold Inlet Filters.
Wall Plugs
40 mm
153 mm
Shower Control
Backplate Fixing Points
(Ø6 mm)
Bend tabs inwards
Use as a support for the spirit level
Bend tabs inwards
Use as a support for the spirit level
Hot Supply Inlet
(Ø15 mm)
Make sure that supply pipes are thoroughly flushed through
before connection to the shower control
Cold Supply Inlet
(Ø15 mm)
153 mm
150 mm 150 mm
40 mm
35 mm
35 mm
35 mm
2.3 For solid walls, drill the holes for the
Backplate with a 6 mm diameter drill
and insert the Wall Plugs (supplied).
For other types of wall structure,
alternative fi xings may be required
(not supplied).
2.4 For both rising and falling supplies:
Using the Installation Template as
a guide, mark the pipe positions
on the ceiling and set the centres
35 mm from the fi nished wall
(refer to illustration).
153 mm
To Next Page
