27
Backplate
Flow
Lever
Temperature
Control
Attach the Backplate using the
two Shroud Screws removed
previously. Tighten the
screws until the foam seal is
compressed against the fi nished
wall. Do not overtighten.
Locate the Concealing Plate
onto the Backplate and push
fi rmly until it “snaps” into place.
Make sure the slot is at the
bottom of the plate.
Locate the Flow Lever and push
fi rmly into place. Fit the Bearing
onto the Flow Lever.

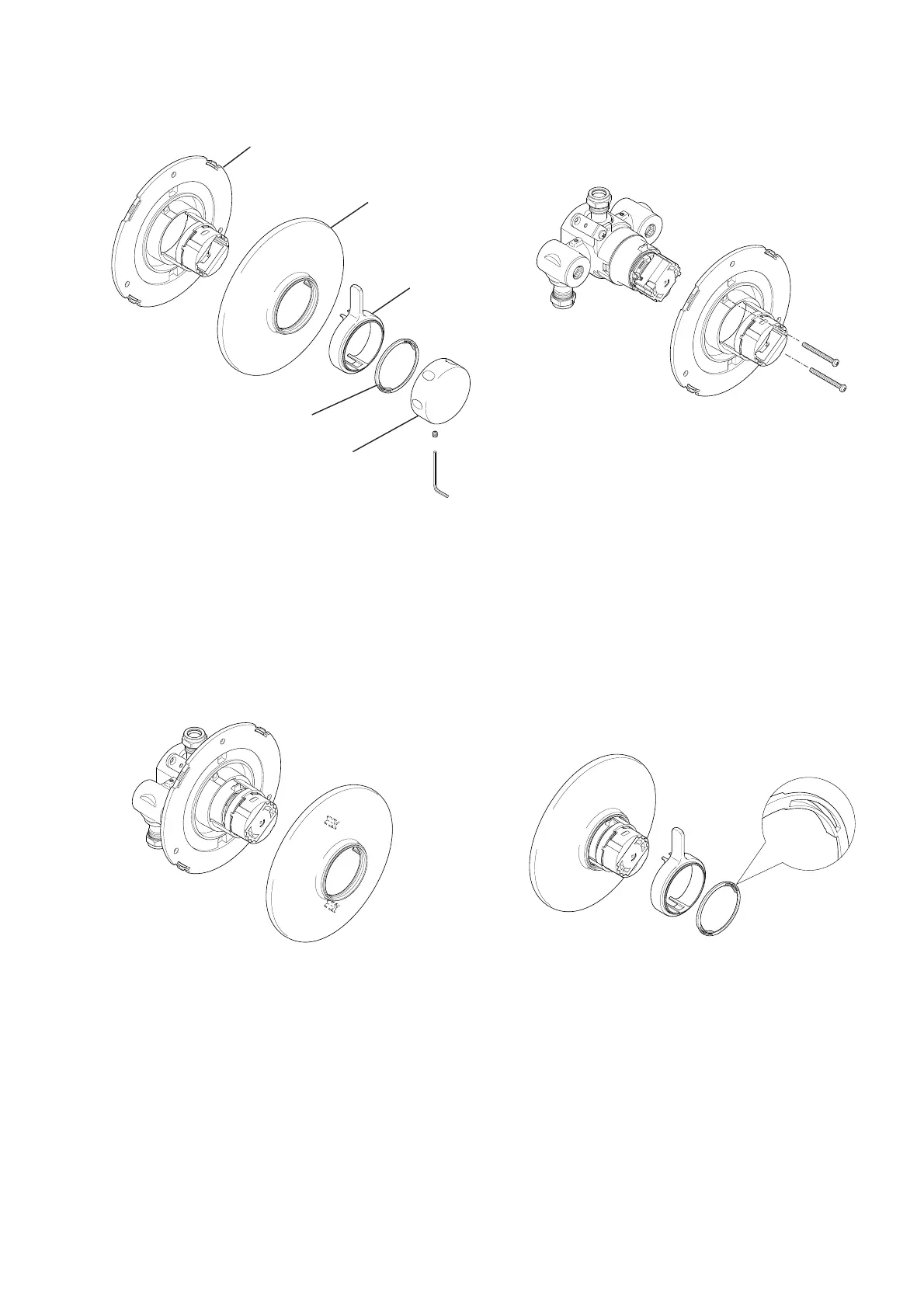

Carefully separate the control
assembly as shown.
Control Assembly (Built-in Model)
Refer to section: “Commissioning” for fi nal assembly.
1. 2.
3.
4.
Concealing
Plate
Bearing
To Next Page
