22

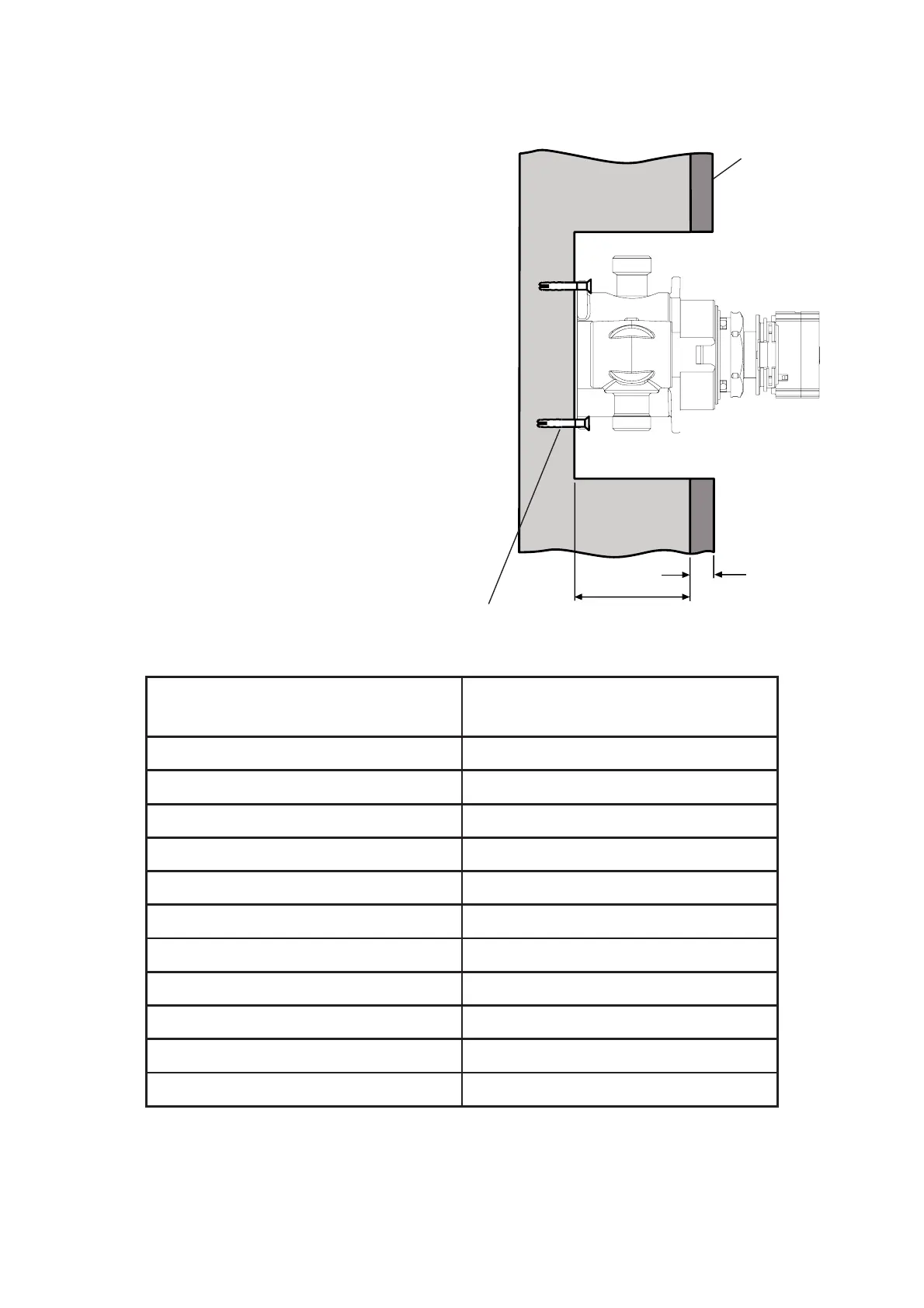

2. Solid Wall or Stud Partition
(Using Rear Fixing Points on the Thermostatic Mixer)
Finished Wall Thickness
(e.g. tile and adhesive)
Wall Cutout Depth “X”
4 mm 81 - 63 mm
6 mm 79 - 61 mm
8 mm 77 - 59 mm
10 mm 75 - 57 mm
12 mm 73 - 55 mm
14 mm 71 - 55 mm
16 mm 69 - 55 mm
18 mm 67 - 55 mm
20 mm 65 - 55 mm
22 mm 63 - 55 mm
24 mm 61 - 55 mm
Finished Wall
Surface
Finished Wall
Thickness
Depth “X”
Rear Fixing
2.1 Refer to section: “1. Solid Wall or
Stud Partition (Using Securing
Brackets - Mounting off Front
Face of Wall)” and follow steps 1.1
to 1.4.
2.2 Cut away the plasterboard and/or
brick work to the required depth.
Important! This depth “X” will
depend on the fi nished wall thickness
e.g. tiles or facia board. Refer to the
table for this measurement.
For stud partitions depth “X” refers to
the distance from the rear mounting
e.g. timber noggin, to the front of the
wall (before tiling).
To Next Page
