19

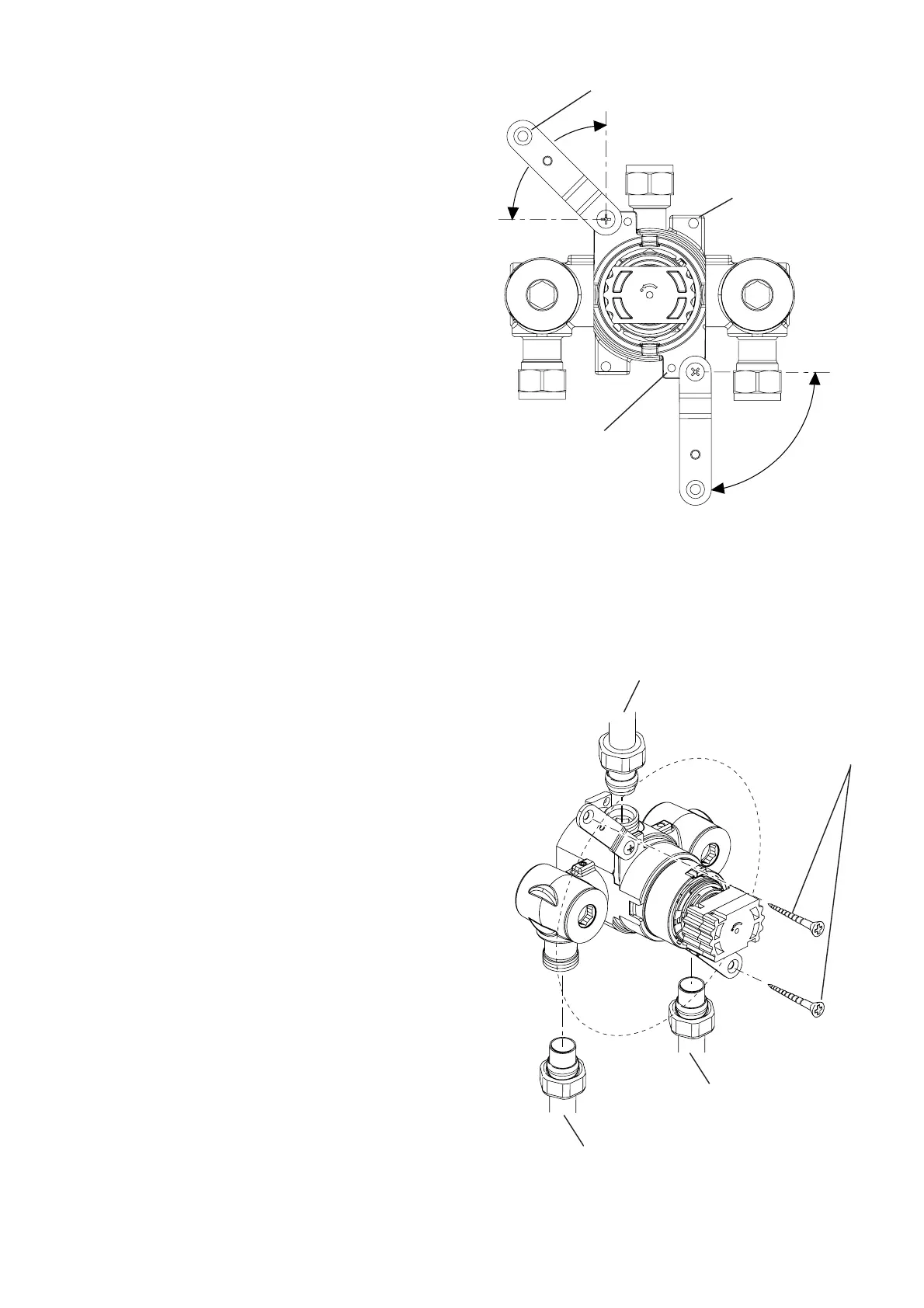

Rotate for Suitable
Fixing Point
Backplate
securing hole
Rear Fixing Point
Countersunk Fixing Hole
Screws
Outlet Pipe to Fittings
Hot Supply
Cold Supply
1.7 Fit the Securing Brackets to the unit
with the Bracket Screws.
Important! Make sure that the
correct holes are used, otherwise the
Backplate cannot be fi tted.
Note! The Securing Brackets can be
rotated for suitable fi xing points.
1.8 Making sure that the unit is level, mark
the positions for the countersunk
fi xing holes on the wall.
1.9 For solid walls, drill two 6 mm
diameter holes for the Wall Plugs.
Caution! Do not drill into pipes or
electrical cables buried in the wall.
1.10 Fit the Wall Plugs provided and fi x
the unit to the wall with the Screws
provided.
Note! For stud partition installations,
alternative fi xings may be required
(not supplied).
1.11 Connect the hot and cold supply
pipes and tighten the Compression
Nuts.
Caution! Make sure that the Olives
are fi tted and all pipework is fl ushed
through before connecting to the
unit.
Note! Securing Brackets shown
in preferred position to allow the
Compression Nuts to be tightened.
To Next Page
