21

Mechanical Installation

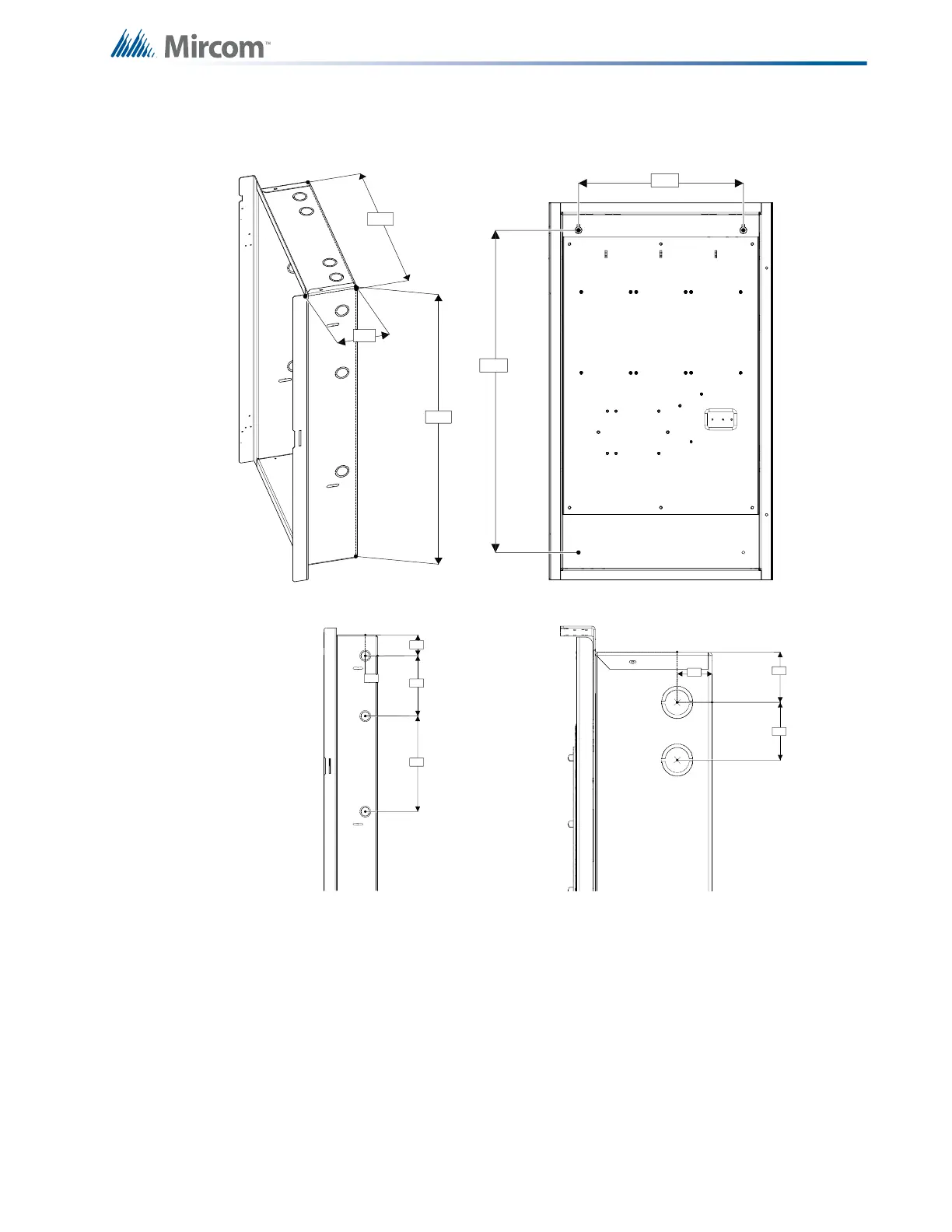

Figure 4 BBX-1024DS and BBX-1024DSR Installation Instructions and Dimensions

26.0 "

14.5 "

4.2 "

External Dimensions

12.0 "

23.5 "

Mounting Dimensions

1.3 "

1.7 "

2.0 "

Top View

2.1 "

1.3 "

6.0 "

9.5 "

Side View
