Field Wiring

7.3 Indicating Circuit Wiring

The FR-320 Series Fire Alarm supports Class B or Style Y and Class A Style Z wiring for its

indicating circuits. Each circuit is supervised by a 3.9KΩ EOL resistor or active EOL module.

Each indicating circuit provides up to 1.7 A, 5 A maximum total if no auxiliaries are used.

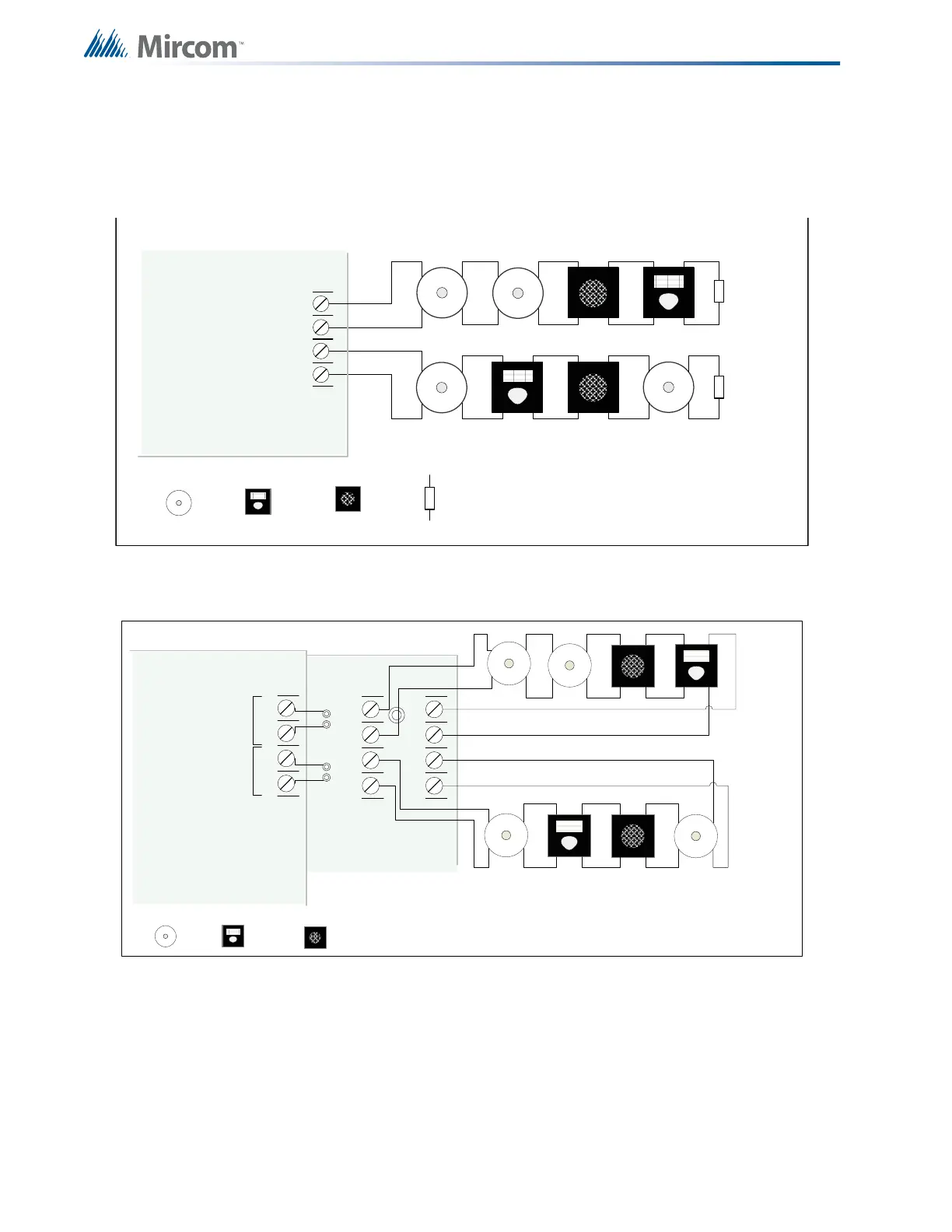

Figure 15 Indicating circuit – Class B or Style Y wiring

Figure 16 Indicating circuit –Class A or Style Z wiring

-SIG 1 +

STYLE Y

WIRING

STYLE Y

WIRING

INDICATING

CIRCUIT - 1

INDICATING

CIRCUIT - 2

BELL STROBE 3.9K 1/2 WATT ELR

INDICATING

CIRCUIT #1

INDICATING

CIRCUIT #2

HORN

FR-320 Panel

-SIG 2 +

BELL STROBE HORN

STYLE Y

WIRING

STYLE Y

WIRING

INDICATING

CIRCUIT #1

INDICATING

CIRCUIT #2

INDICATING

CIRCUIT 1

INDICATING

CIRCUIT 2

OCAC-302 CLASS A

CONVERTER MODULE

FR-320 Panel

BL K R ED

-SIG1 OUT+-SIG2 OUT+

-SIG1 RET+-SIG2 RET+

SIG 1SIG 2
