136 MiVoice 5380 / MiVoice 5380 IP
eud-1679/1.0 – R3.0 – 08.2015
Installation and first-time operation
MiVoice M530 / M535 expansion key module
(optional)
You can connect up to 3 MiVoice M530 expansion key modules with 20 configur-
able keys each and up to 3 MiVoice M535 expansion key modules with 3x15 config-
urable keys to your phone. You can freely combine MiVoice M530 and
MiVoice M535. Each key has an LED for visual signalling.

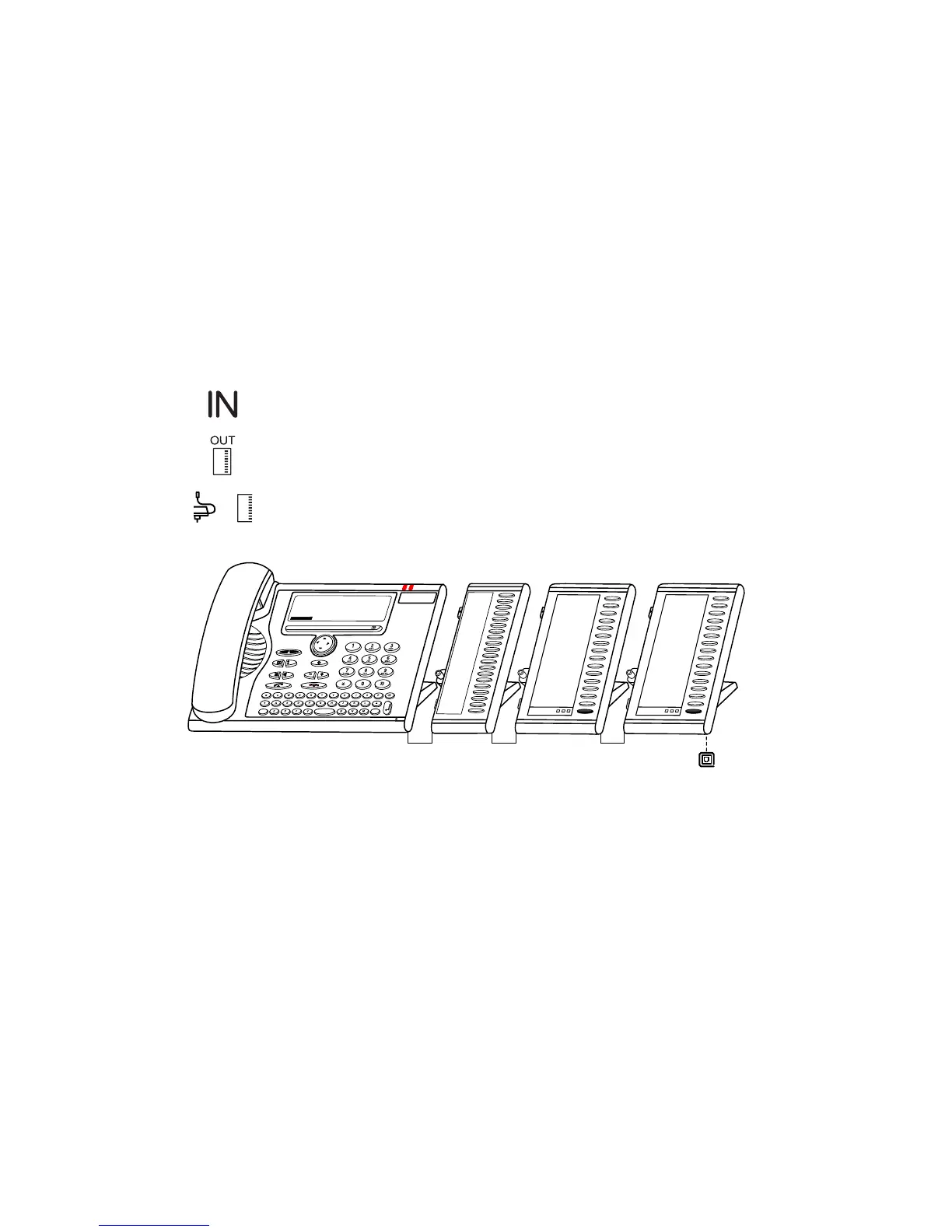

Connections
Connecting the MiVoice M530 / M535 expansion key module
Connecting further MiVoice M530 / M535 expansion key modules (sym-
bol on MiVoice M530)
Connecting further MiVoice M530 / M535 expansion key modules or
power supply (symbol on MiVoice M535)
or
OUT IN OUT IN OUT IN
