Mitel MX-ONE - Leveling the Cabinet

20/1531-ASP11301 Uen B5 2017-03-23 10
I
NSTALLING CABINET
2.2.5 LEVELING THE CABINET

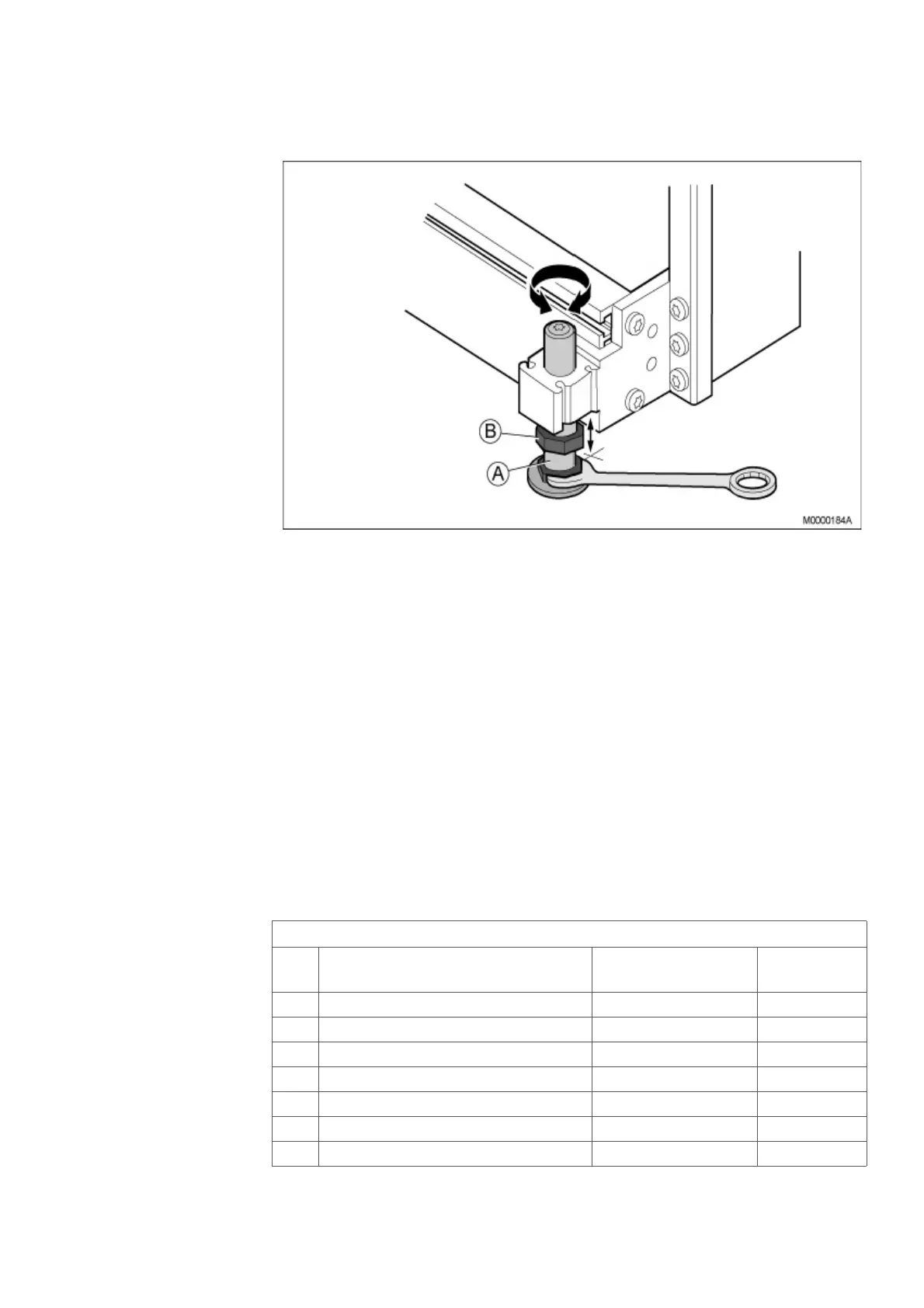

Figure 3: Leveling the Cabinet
1. Level the cabinet by adjusting the feet (A) using the 24-mm U-ring wrench, see
Figure 3:Leveling the Cabinet on page 10
2. Verify that the cabinet is leveled horizontally and vertically, using a water level.
3. Tighten the locking nuts (B) on all feet using the 24-mm U-ring wrench, see
Figure 3:Leveling the Cabinet on page 10
4. Proceed to the next installation stage:
• For installation of a cabinet with tip protection, see 2.2.6 Installing the
Cabinet with Tip Protection on page 9 .
• For installation of a cabinet with earthquake bracing frames, see 2.2.7
Installing the Cabinet with Earthquake Bracing on page 13 .
2.2.6 INSTALLING THE CABINET WITH TIP PROTECTION
Table 3 Mounting Set for Tip Protection
18/BYB 501/4 Tip protection, generic
Po
s. Title/Function Product Number Quantity
A YOKE SXA 123 0786/1 2
B SPACER SXA 123 0788/1 6
C EXPANDER SCREW M 8X90 NSV 905 0805 4
D INSULATING WASHER SRB 186 080 4
E SUPPORT SXA 123 0785/1 4
F CLAMP2 SXA 123 0787/1 4
G NUT M 8 SBM 146 080/03 4
