INSTALLING CHASSIS IN A CABINET
11 20/1531-ASP11301 Uen B5 2017-03-23

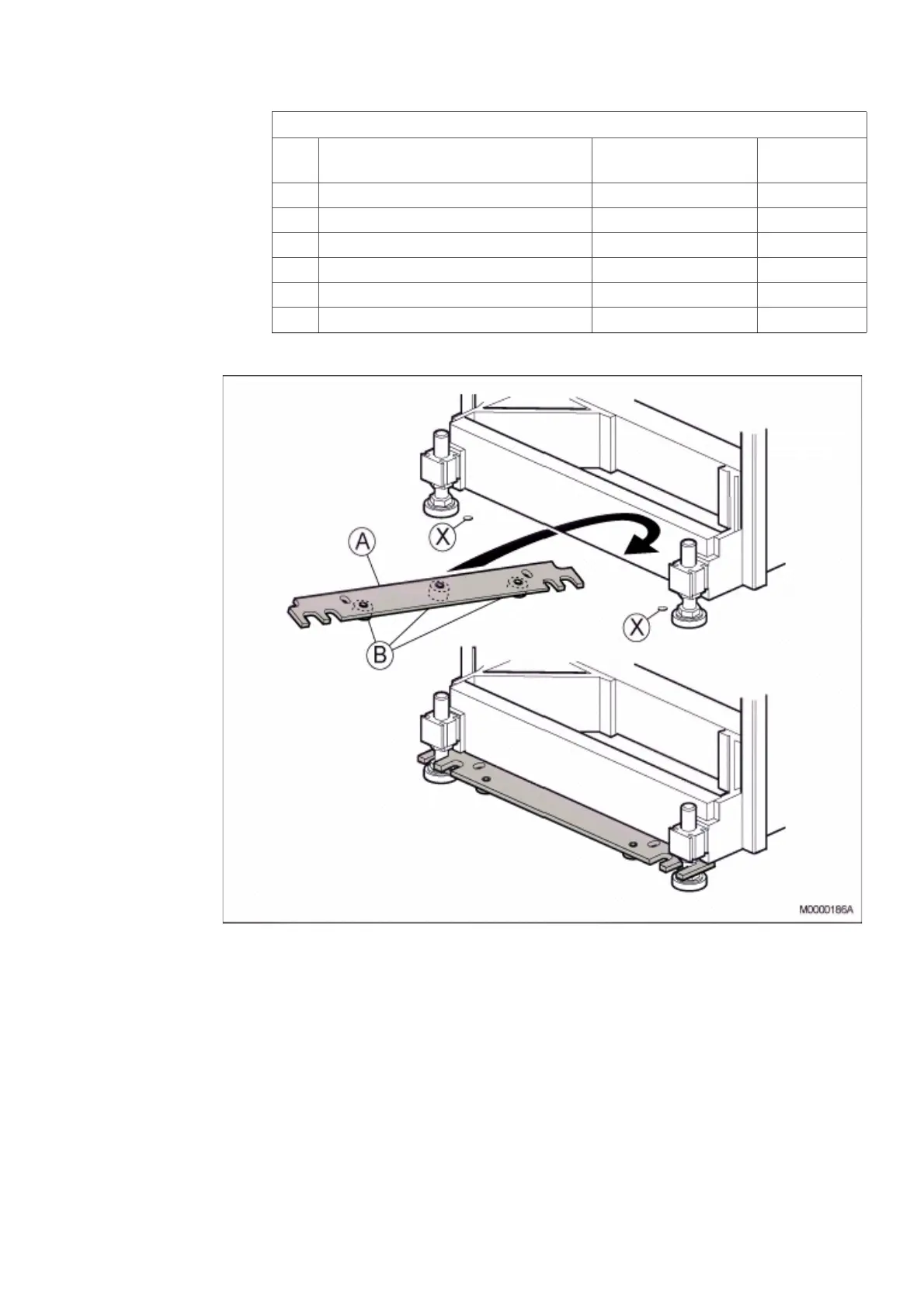

Figure 4: Installing the Tip Protection
Note: The following procedure must be performed for the feet at the front and for the
feet at the back:
1. Insert three spacers (B) in the holes in the yoke (A), see Figure 3 Installing the
Tip Protection on page 10
2. Slide the yoke under the cabinet between the feet.
3. Move the yoke back over the feet.
4. Align the holes in the yoke with the two anchoring holes (X) in the floor.
H INSULATING PLATE SXA 123 0789/1 4
STUD SCREW M 8X650 SBK 255 70 4
EXPANDER NUT M 8x30 SXA 113 2519 4
L WASHER SCA 101 080/03 8
BUSHING SRG 107 16/1 4
WASHER SCA 350 06 4
18/BYB 501/4 Tip protection, generic
Po
s. Title/Function Product Number Quantity
