20/1531-ASP11301 Uen B5 2017-03-23 40
I
NSTALLING CABINET
2.11 LABELING
Before cabling the cabinet it is necessary to label the media gateway parts used per
Server, using the labels provided in label sets SVH 277 02/1 - /5, see 17 Gateway
Labels on page 40. The cabinet must be labeled with the number of Servers that is
installed in the cabinet. It is recommended to label the following items:
• Cabinet
• MX-ONE 1U
• MX-ONE Lite (3U-chassis)
• MX-ONE Classic (7U-chassis)
• AC/DC
• Other servers
Table 17 Gateway Labels
For recommended labeling in BYB 501, see on page 40.

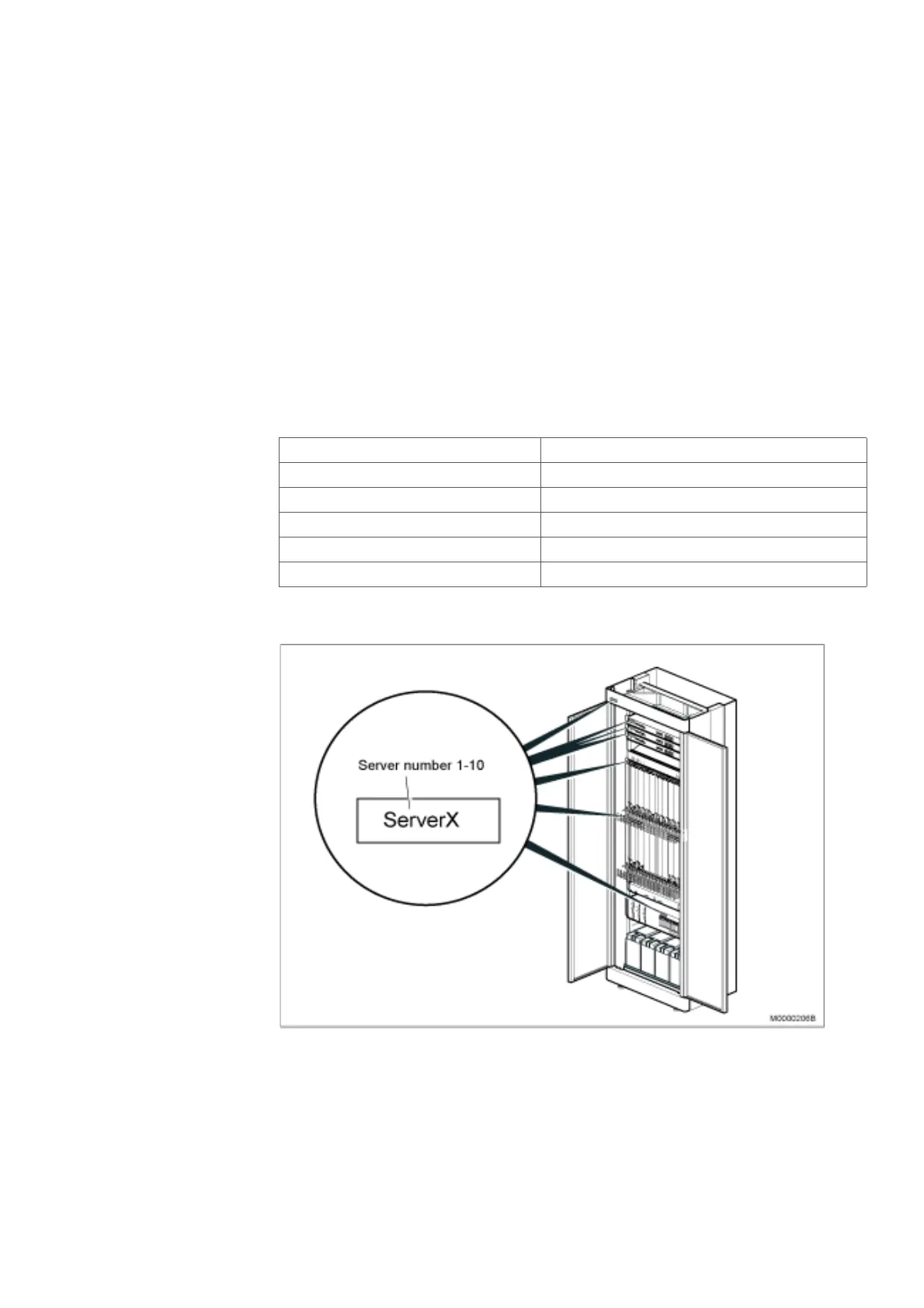

Figure 33: Labeling of BYB 501
2.11.1 LABELING CABLES
For labeling of cables see document 21/1531-ASP11301.
Product Number Server Number
SVH 277 02/1 1 - 10
SVH 277 02/2 11 - 20
SVH 277 02/3 21 - 30
SVH 277 02/4 31 - 40
SVH 277 02/5 41 - 124 (one for each Server)
