INSTALLING CHASSIS IN A CABINET
41 20/1531-ASP11301 Uen B5 2017-03-23
2.11.2 WARNING LABEL, ENERGY HAZARD
The warning label, energy hazard (SVB 131 75) is for indoor use on aluminum, steel,
or rigid plastic surface. It is made of self adhesive plastic material and not removable.
Fasten the warning label below the circuit breakers on the front of the AC/DC unit, see
Figure 34:Warning Label SVB 131 75 on page 41.

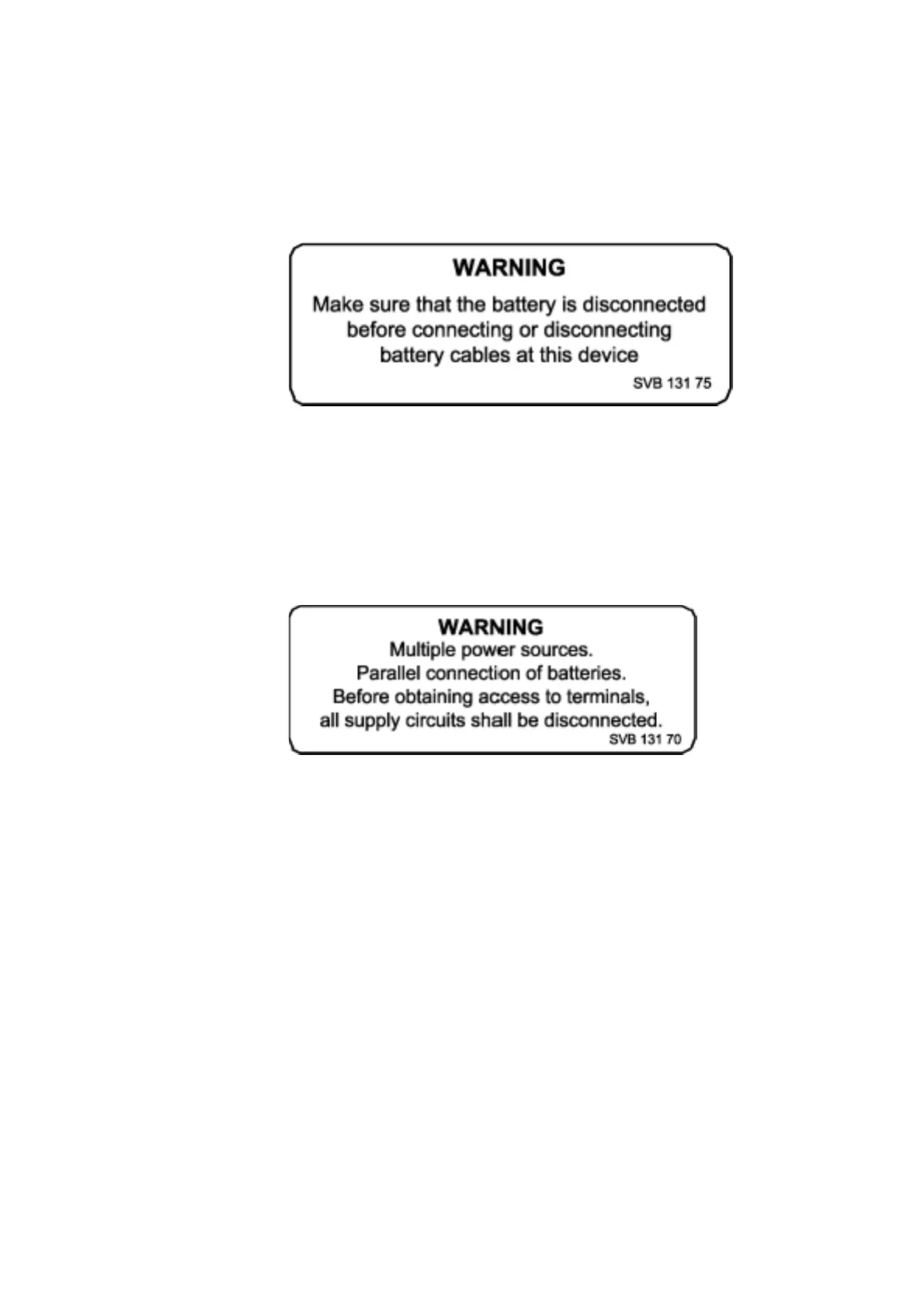

Figure 34: Warning Label SVB 131 75
2.11.3 WARNING LABEL, PARALLEL CONNECTION OF BATTERIES
The warning label, parallel connection of batteries (SVB 131 70) is for indoor use on
aluminum, steel, or rigid plastic surface. It is made of self adhesive plastic material and
not removable. Fasten three (3) warning labels, one on the right-hand side battery, and
two at the bottom of the cabinet, see on page 23 and see on page 41.
Figure 35: Warning Label SVB 131 70
Note: Battery warning labels are also available in German and French.
