INSTALLING CHASSIS IN A CABINET
19 20/1531-ASP11301 Uen B5 2017-03-23

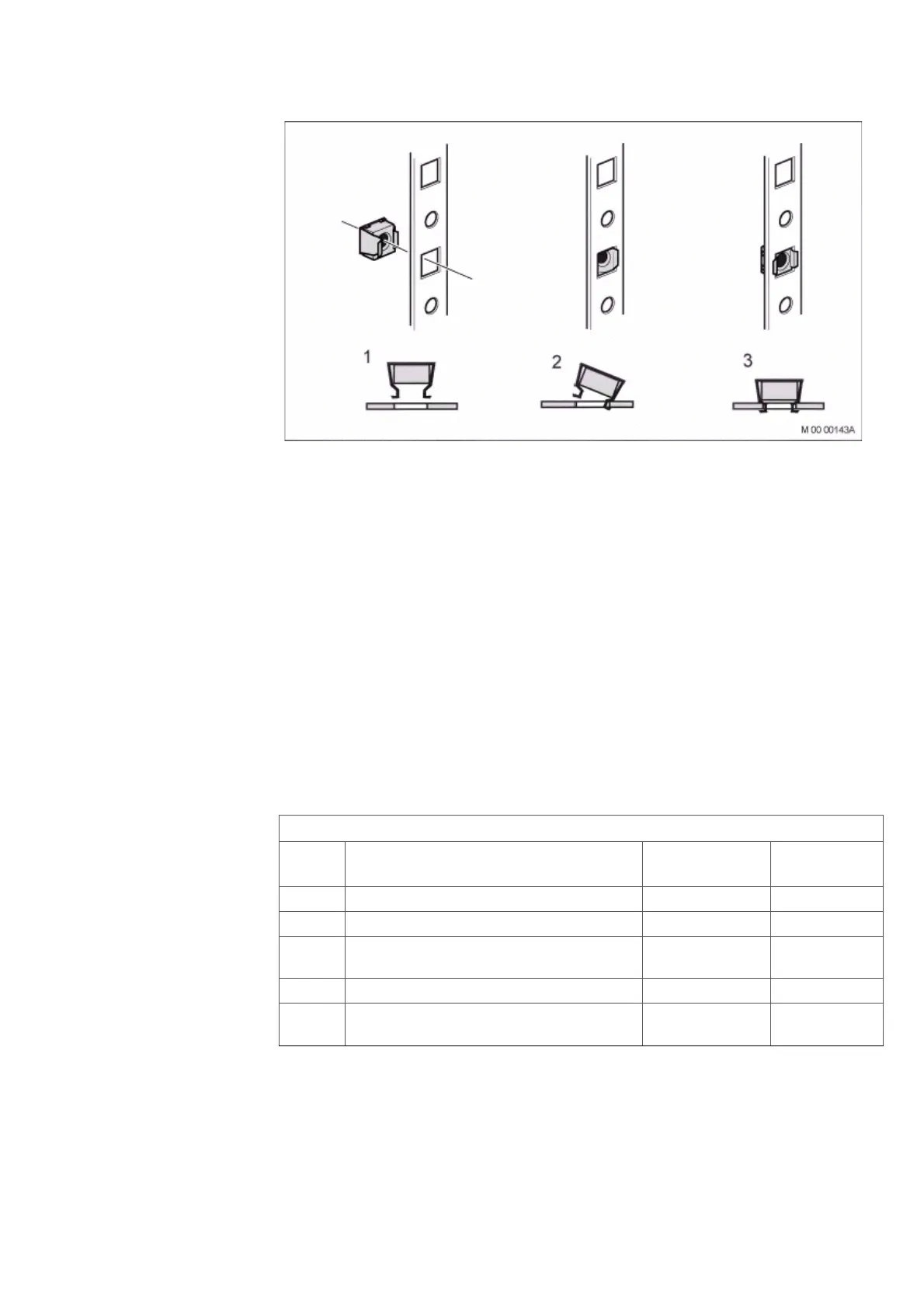

Figure 12: Mounting the Captive Nuts in the Rack
2.4 INSTALLING BATTERIES
This section describes the installation of 31-Ah ( BKB 201 003/1 ) and 62-Ah ( BKB
201 003/2 )
batteries. Make sure to leave room in the cabinet for the bigger batteries
(62 Ah) even when installing smaller batteries.
Begin battery installation by installing the battery shelf, that is supplied with the
mounting set for the power equipment, at the bottom of the cabinet, see Figure
13:Installing the Battery Shelf on page 20.
2.4.1 INSTALLING BATTERY SHELF
Use the following material set when installing the battery shelf:
Table 7 Material Set for Battery Shelf
NTM 144 266 Material set for battery shelf in 19-inch cabinet or frame
Pos. Title/Function
Product
Number Quantity
B Battery shelf 1
L Strapping belt 1
K Set of 10-mm spacers for separating battery
blocks
1
A Captive nuts M6 SBM 173 060/03 4
C Screws M6X16 78/SBA 121
060/0160
4
