NSTALLING CABINET

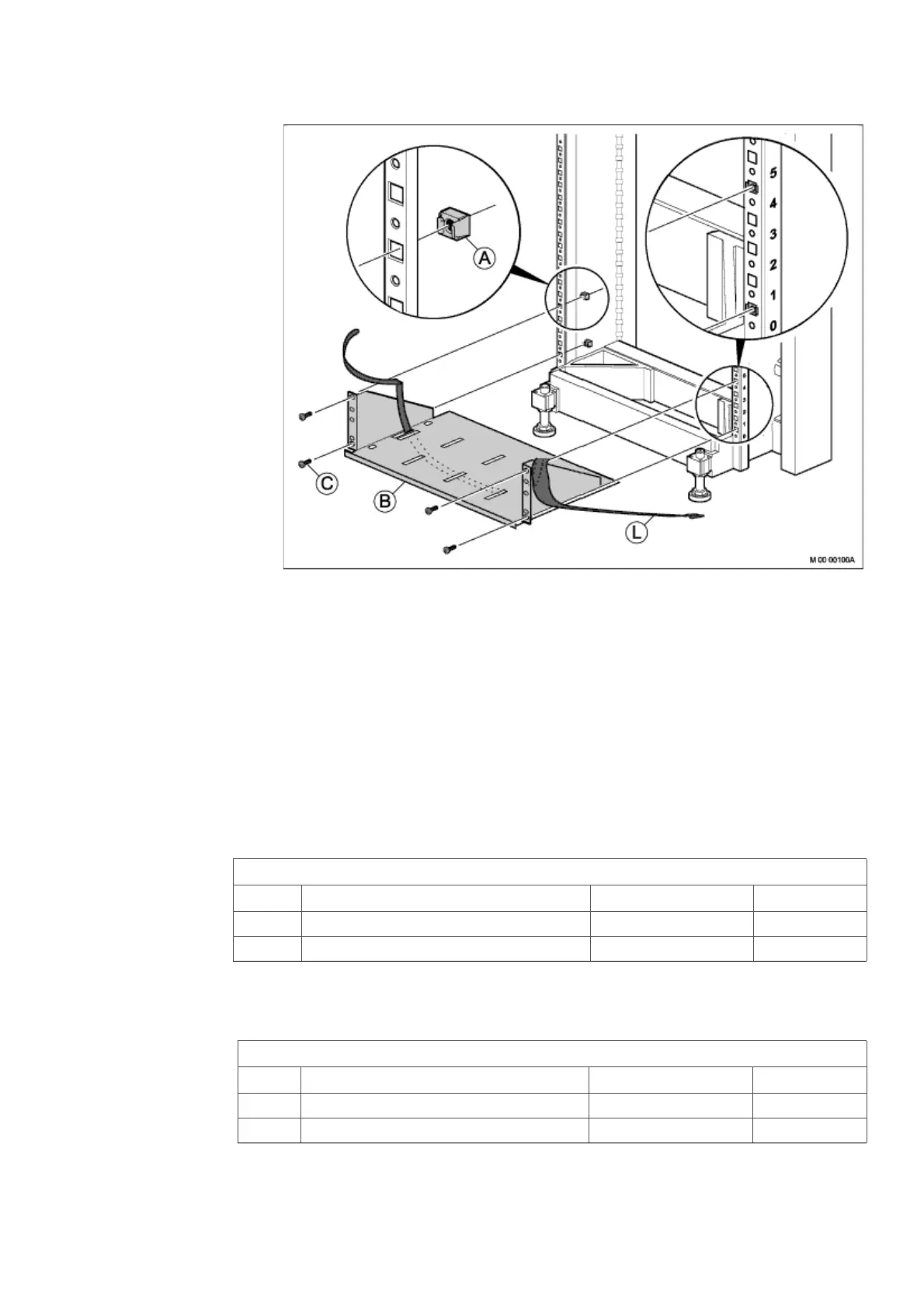

Figure 13: Installing the Battery Shelf
1. Mount four captive nuts (A) (2.3 Installing Supporting Captive Nuts on page 18)
in the cabinet according to the number positions shown, see Figure 13:Installing
the Battery Shelf on page 20.
2. Insert the strapping belt (L) through the battery shelf.
3. Fasten the battery shelf (B) using four screws (C).
2.4.2 INSTALLING THE BATTERY STRING
Use one of the following material sets when installing the batteries:
Table 8 Material Set for 48 V 31-Ah Battery
Table 9 Material Set for 48 V 62-Ah Battery
BKB 201 003/1 Material set for 48 V 31-Ah battery
Pos. Title/Function Product Number Quantity
A Battery set BKC 508 03/1 4
Mounting set for battery NTM 144 265 1
BKB 201 003/2 Material set for 48 V 62-Ah battery
Pos. Title/Function Product Number Quantity
A Battery set BKC 508 03/2 4
Mounting set for battery NTM 144 265 1
