INSTALLING CHASSIS IN A CABINET
35 20/1531-ASP11301 Uen B5 2017-03-23

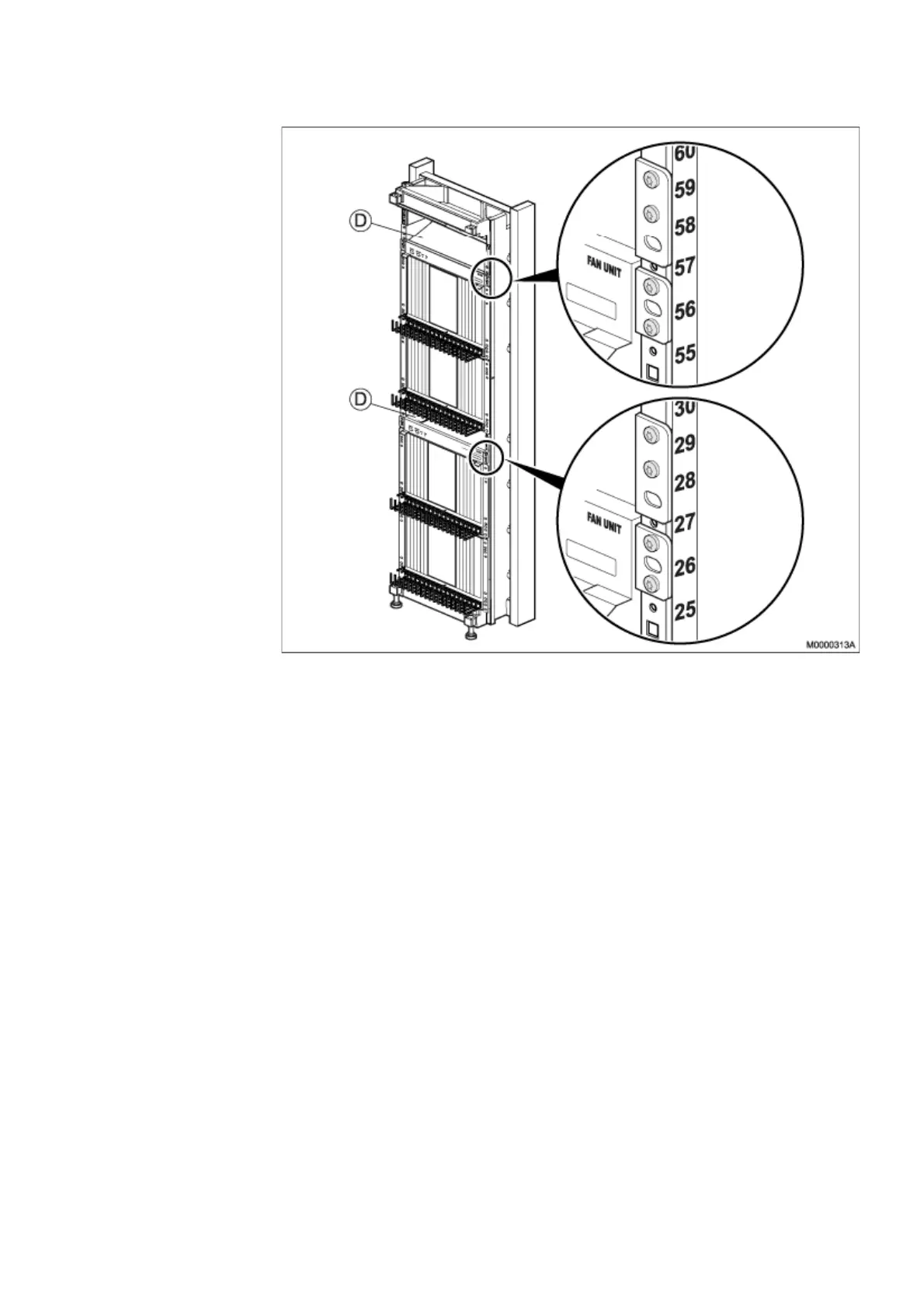

Figure 28: A four MX-ONE Classic Rack
When installing a four-MX-ONE Classic-equipped exchange cabinet (2 x subrack A+B
or A+A) without internal power and batteries, two fan units with upper air plates (D) are
mounted in the cabinet.
2.8 INSTALLING SERVERS
Install the standard servers in a standard server cabinet (locally sourced). Install the 1U
chassis including the ASU in a BYB 501 cabinet.
For the installation procedure for the standard server cabinet, refer to manufacturer
instructions.
2.8.1 INSTALLING MX-ONE 1U CHASSIS
This section describes how to install the 1U chassis, MX-ONE 1U in the BYB 501
cabinet. Additional 1U chassis can be installed directly above the first one in the same
way as the first 1U chassis.
Use the following mounting set to install the MX-ONE 1U chassis in the cabinet.
