INSTALLING CHASSIS IN A CABINET
29 20/1531-ASP11301 Uen B5 2017-03-23
2.6.3 MOUNTING THE FRONT AIR PLATE IN SUBRACK A
To prepare subrack A for installation in the cabinet, first mount front and rear air plates
in the subrack as follows:

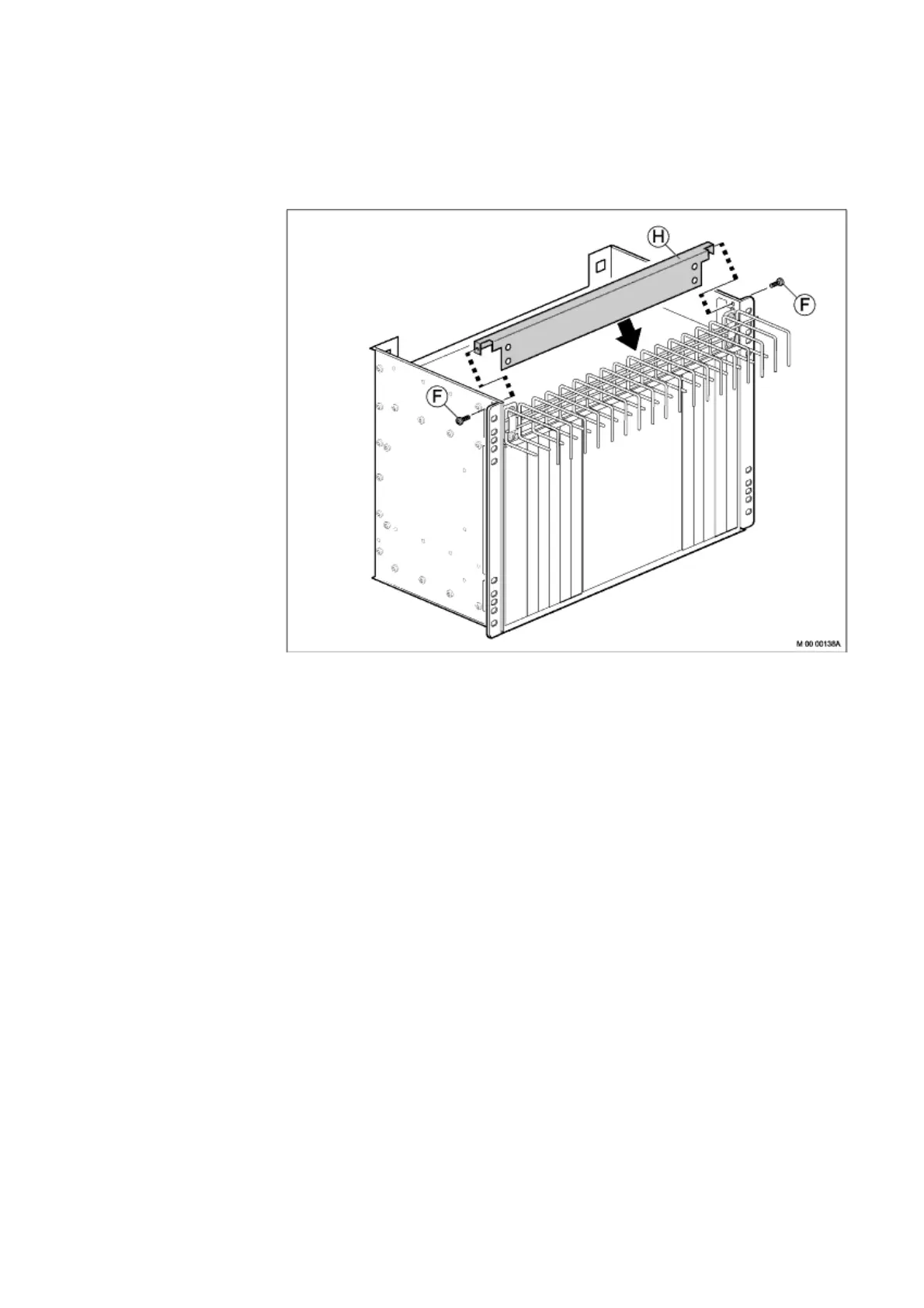

Figure 22: Mounting the Front Air Plate in Subrack A
1. Place subrack A in an upside-down position on a steady work surface.
2. Insert the front air plate (H) to the slot against the cable chute.
3. Fasten the front air plate to the subrack by using two screws (F).
Parts from this mounting set are used at a later installation stage, leave the remaining
parts at hand.
