APPX
Appendix 2 I/O Signals
139
A

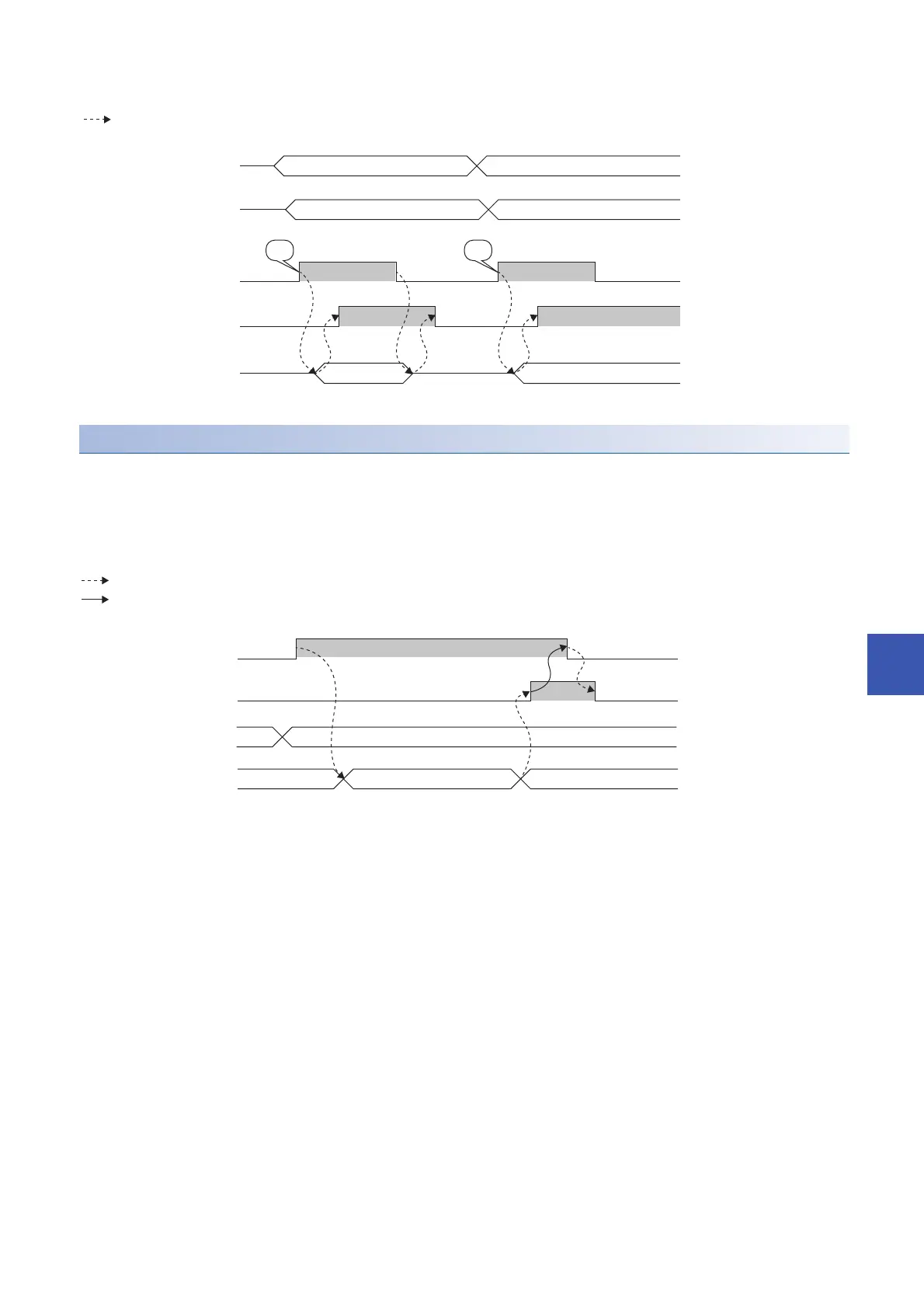

■'EtherNet/IP data link continuation specification request' (Un\G16635) is set
PING test execution request (Y12)
Turn this signal off and on to execute a PING test.
• Off to on: PING test execution request
• On to off: PING test completion request
Turning on 'PING test execution request' (Y12) clears 'PING test result area' (Un\G27908 to Un\G27911).
Turning off 'PING test execution request' (Y12) turns 'PING test completion' (X12) on and off.
(1) Parameter setting
ON
OFF
OFF OFF OFF
ON
ON
OFF OFF
ON
(1) (1)
'EtherNet/IP data link
continuation specification
state' (Un\G16635)
'EtherNet/IP communication
start request' (Y10)
'EtherNet/IP communication
in process' (X10)
EtherNet/IP communications
Communication enabled Communication enabled
Stop specification status Continuation setting status
'EtherNet/IP data link
continuation specification
request' (Un\G16634)
Stop specification request Continuation setting request
Performed by the RJ71EIP91
ON
ON
OFF OFF
OFF OFF
0 PING test result
'PING test request area'
(Un\G27904 to Un\G27907)
'PING test result area'
(Un\G27908 to Un\G27911)
'PING test execution request'
(Y12)
'PING test completion' (X12)
Request data setting
Performed by the RJ71EIP91
Performed by the program
