3 PROGRAMMING
3.5 Communication Example of Safety Communication Function Used in a Redundant Line
213
3
Checking the network status
After starting up the system, check whether data link can be normally performed. For the check, use the CC-Link IE Field
Network diagnostics of the engineering tool.
1. Connect the engineering tool to the SIL2 Process CPU of the master station.
2. Start the CC-Link IE Field Network diagnostics.
[Diagnostics] [CC-Link IE Field Diagnostics]

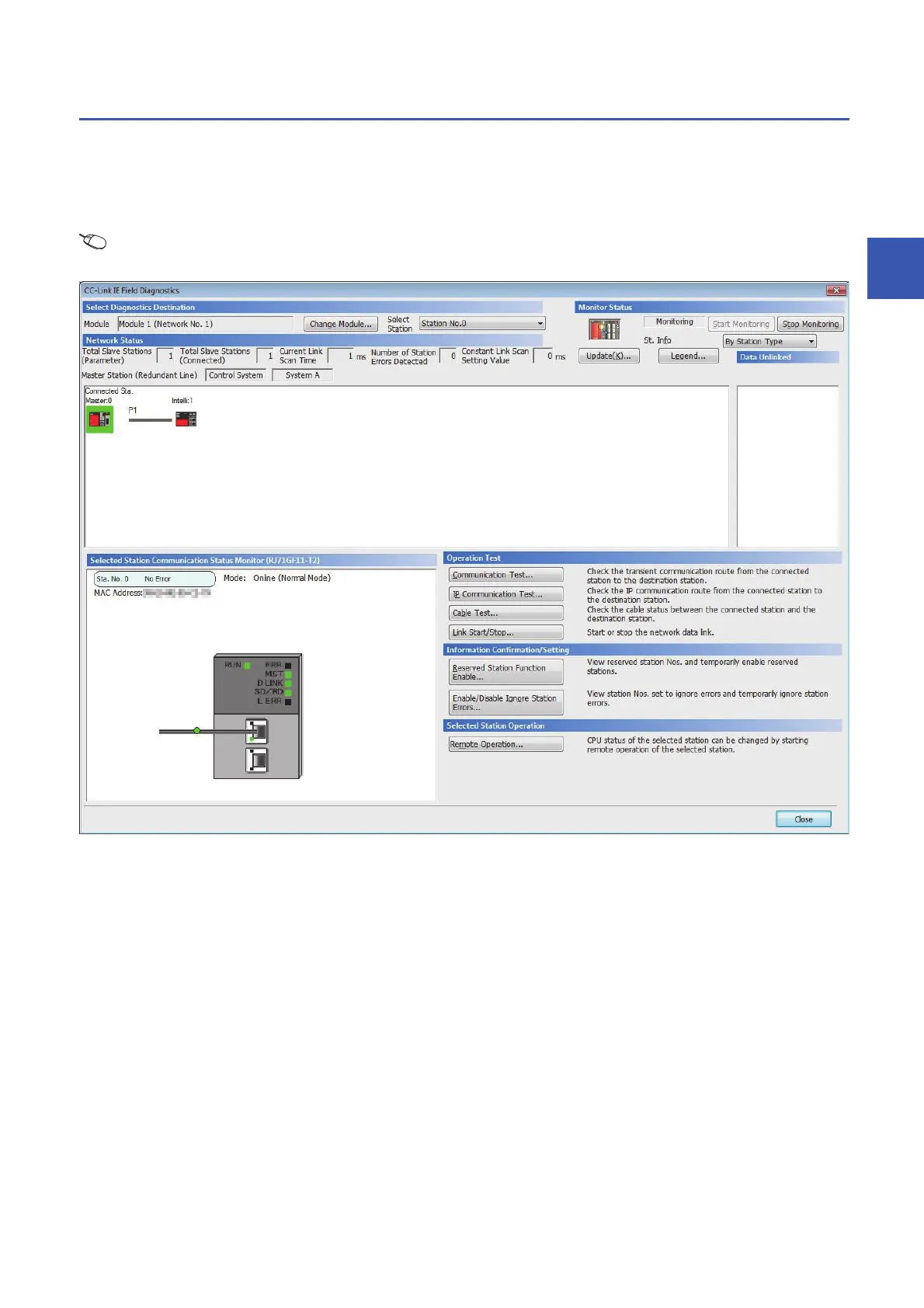

If the following display appears, data link is normal.
