4 - 13
4 INSTALLATION AND WIRING
4.2.2 Battery cable

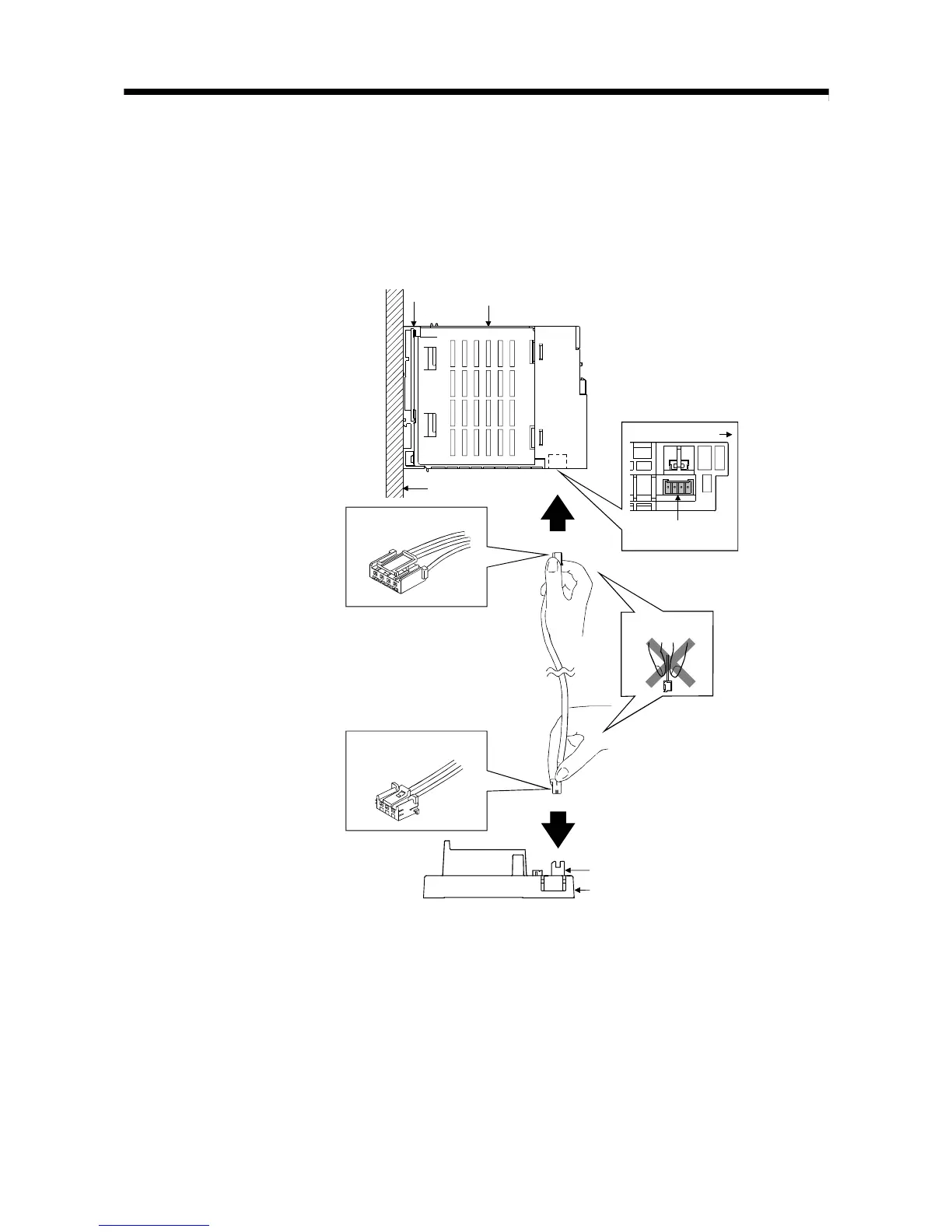

(1) Handling the battery cable
(a) Precautions for handling the battery cable
• For connection or removal of the battery cable, do it surely while holding a
connector.
CPU connector (CPU)
Battery holder unit
(Q170DBATC)
Connector for CPU side
Connector for battery side
Do not hold
lead wire
Control panel
Base unit
Motion CPU module
Battery connector
(BAT)
Bottom
Front
(b) Connection of the battery cable
• For connection of a connector to the Motion CPU module, connect it surely
to the battery connector (BAT) of Motion CPU module while holding a
connector. Be sure to insert it until it clicks.
• For connection of a connector to the battery holder unit, connect it surely to
the CPU connector (CPU) of battery holder while holding a connector. Be
sure to insert it until it clicks
