2 SYSTEM CONFIGURATION

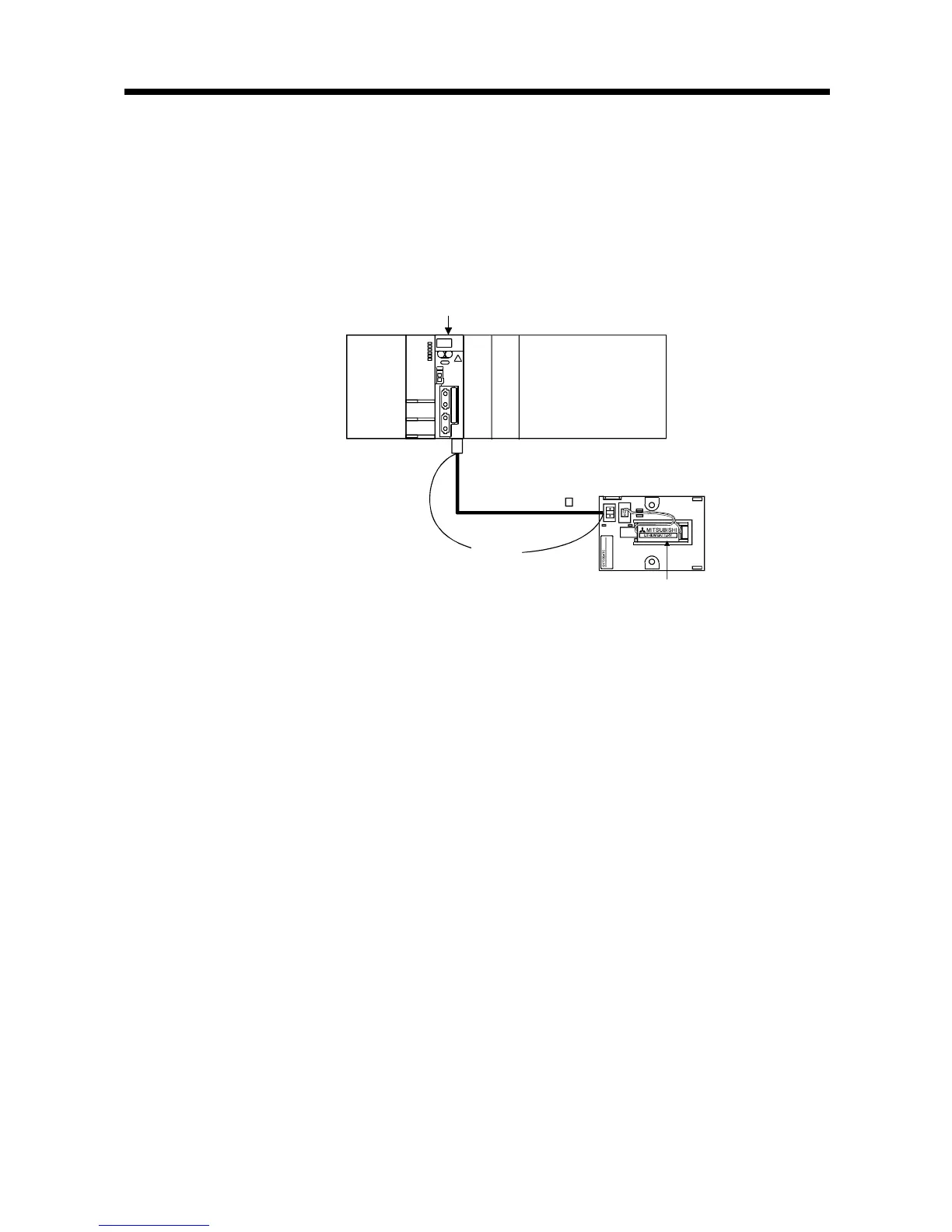

(3) Connection procedure with Motion CPU module
(a) Set Q6BAT to Battery holder unit(Q170DBATC).
(b) Connect the lead connector of Q6BAT to the connector (BATTERY) of
Q170DBATC.
(c) Connect between the connector (BAT) of Motion CPU module and
connector (CPU) of Q170DBATC.
Battery holder unit
(Q170DBATC)
BAT
Q6BAT
0.5[m]
(1.64[ft.])
Motion CPU module
Battery cable
(Q170DBATCBL )
