(2) For Q3MEM-4MBS and Q3MEM-8MBS

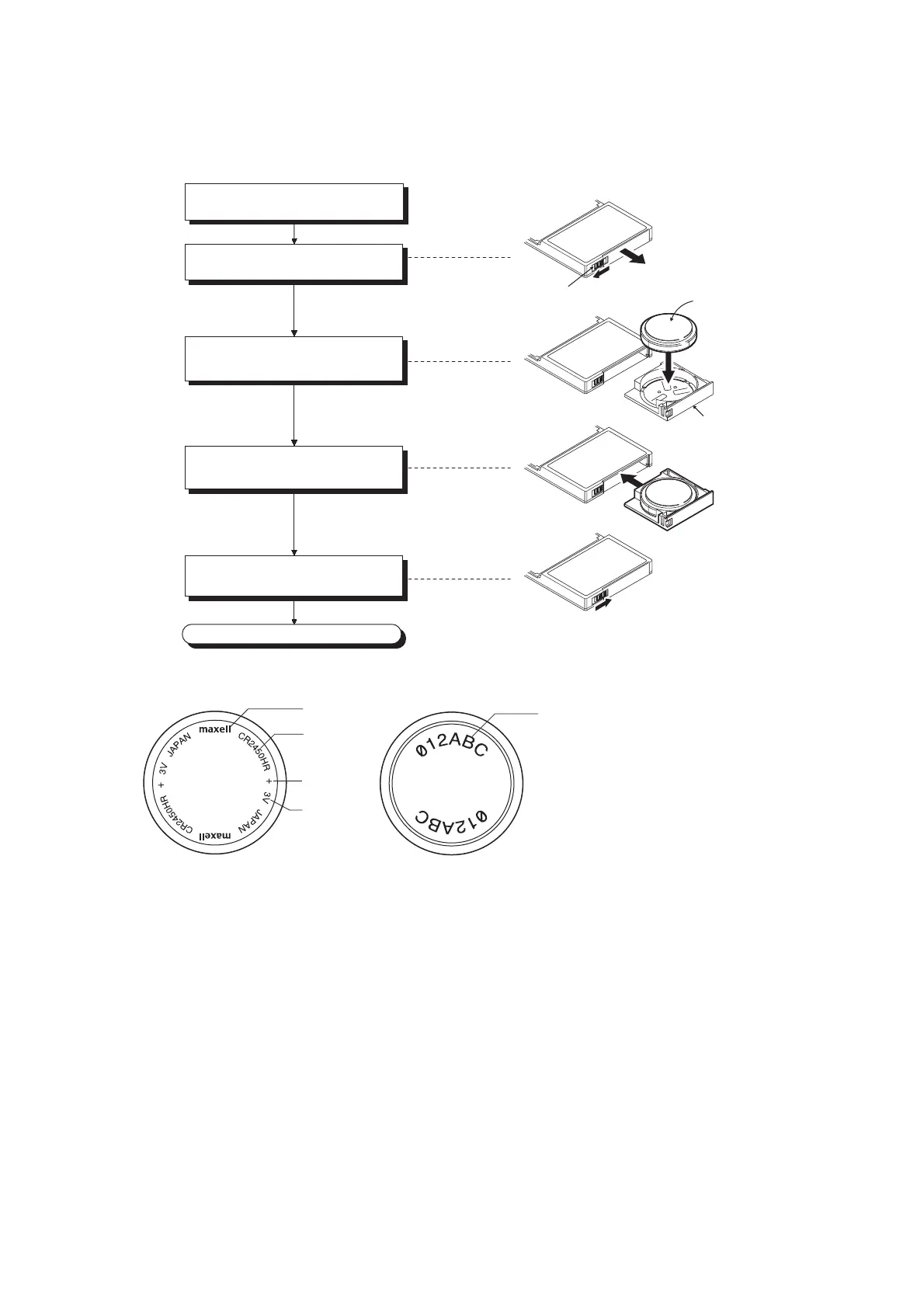

*1 The following shows the direction of a battery.
Completed
Set the battery holder fixing switch
to the RELEASE position.
Pull out the battery holder of the
SRAM card.
Set the battery on the holder with
the positive (+) side facing up.
Place the holder back to the SRAM
card.
Set the battery holder fixing switch
to the LOCK position.
RELEASE
position
Battery holder
fixing switch
Positive (+) side
*1
Battery holder
LOCK
position
Product number
(The number differs depending on the date
of manufacture.)
Maker name
Positive (+) side Negative (-) side
Model
Polarity
Voltage
