Mitsubishi 7011A SERIES User Manual

MITSUBISHI ELECTRIC 7011A SERIES UPS
MITSUBISHI
ELECTRIC
7011A SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
2-8

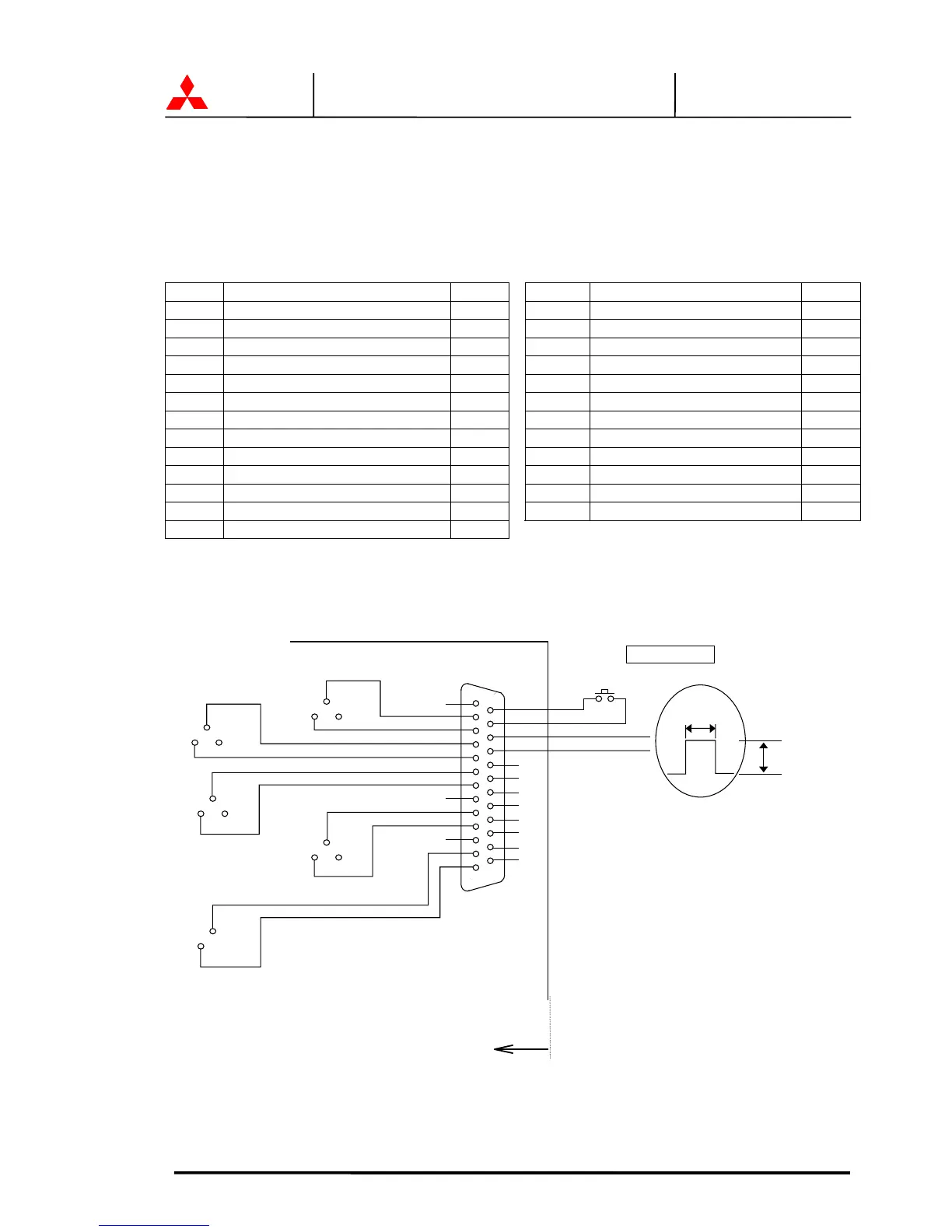

2.4 D-SUB 25 PIN CONNECTOR
Uses dry contact on/off to express NORMAL, FAULT, ON BATTERY, BATTERY LOW, ON
BYPASS, ON INVERTER status. Connections not to exceed NEC Class 2.
TABLE 2.1 D-Sub 25 Pin connector
Pin No. Signal I/O Pin No. Signal I/O
1 Failure A Contact Output 14 Output
2 Failure A Contact com Output 15 Output
3 Output 16 Output
4 Battery Operation A Contact Output 17 Output
5 Battery Operation com Output 18 Output
6 Output 19 Output
7 Battery Low Voltage A Contact Output 20 Output
8 Battery Low Voltage A Contact com Output 21 Output
9 Bypass Operation A Contact Output 22 Shut Off Input
10 Bypass Operation A Contact com Output 23 Shut Off common Input
11 Inverter Operation A Contact Output 24 RE-EPO Input
12 Inverter Operation A Contact com Output 25 RE-EPO common Input
13 Output
FIGURE 2.10 D-sub 25 Pin Connectors
UPS
(User supplied)
>0.5sec
COM
NO NC
COM
NO NC
COM
NO
Failure
Battery Operation
Battery Low
Bypass Operation
Inverter Operation
COM
NO NC
COM
NO NC
13
12
11
10
9
8
7
6
5
4
3
2
1
25
24
23
22
21
20
19
18
17
16
15
14
Remote Shut Off Siganl
Imin < 20mA
7V - 15V
Remote EOP
RYER-A
