B) Input Contacts(for remote access of UPS)
External contacts are provided by the user of the UPS system. Terminal voltage at the
UPS is 24Vdc. Provide external dry contact accordingly.
CAUTION:
Do not apply voltage to remote access input terminals. Damage
to UPS may result.
Refer to Figure 2.12 for typical wiring configuration. Although this figure applies to the
RE-STARTUP terminals, the same wiring arrangement is used for RE-EPO; RE-
SHUTDOWN, Battery temperature.

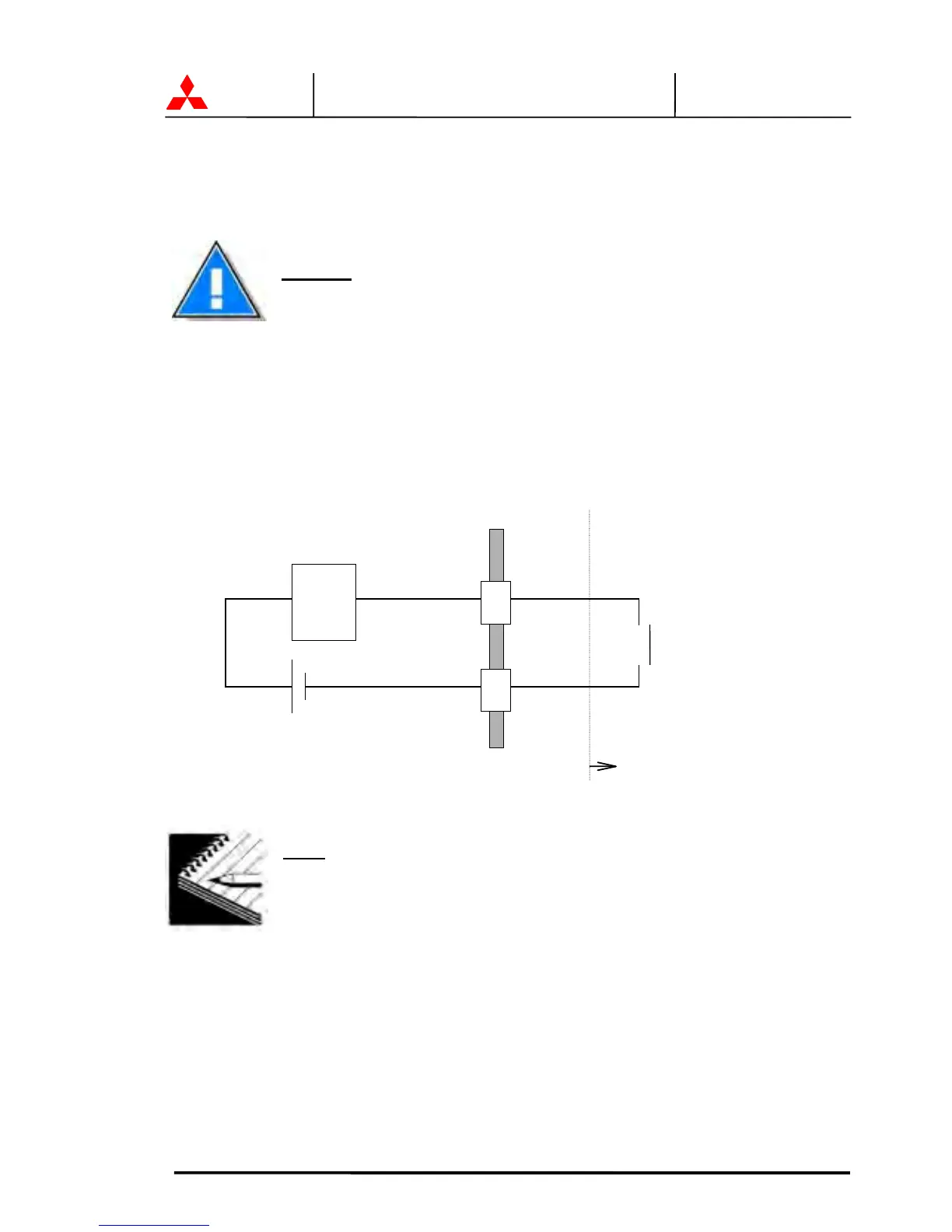

FIGURE 2.13 Remote "Startup" Contact Connections
NOTE:
In all cases, a switch having a protective cover is recommended in
order to reduce possibility of accidental operation.
User supplied
Startup
UPS Cabinet
External to UPS
Cabinet
Relay
Coil
24VDC
Relay Coil current: 8.3mA
Common
Start
Switch
Use Momentary
Switches Only
