MITSUBISHI
ELECTRIC
7011A SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
3-2
MITSUBISHI ELECTRIC 7011A SERIES UPS
3.3 INSTALLATION PROCEDURE
A) Note the load tolerance of the floor
Refer to TABLE 3.1 for list of UPS weights:
TABLE 3.1 List of UPS weights (lb.)
UPS Capacity (kVA) 6 8 10 12
Weight (lb.) 307 507 507 507
B) Minimum clearance required for ventilation
Right side 1.2" (30 mm) (not required when sidecars are used)
Left side 1.2" (30 mm) (not required when sidecars are used)
Back side 3.9" (100 mm)
Top side 23.5" (600 mm)
C) Space requirement for routine maintenance
Allow for the following space at the time of installation.
Front 39.2" (1000 mm)
Sides 1.2" (30 mm)
Rear 39.2" (1000 mm)
(3.9” (100mm) when cable connected at the rear side is drawn
from the front side)

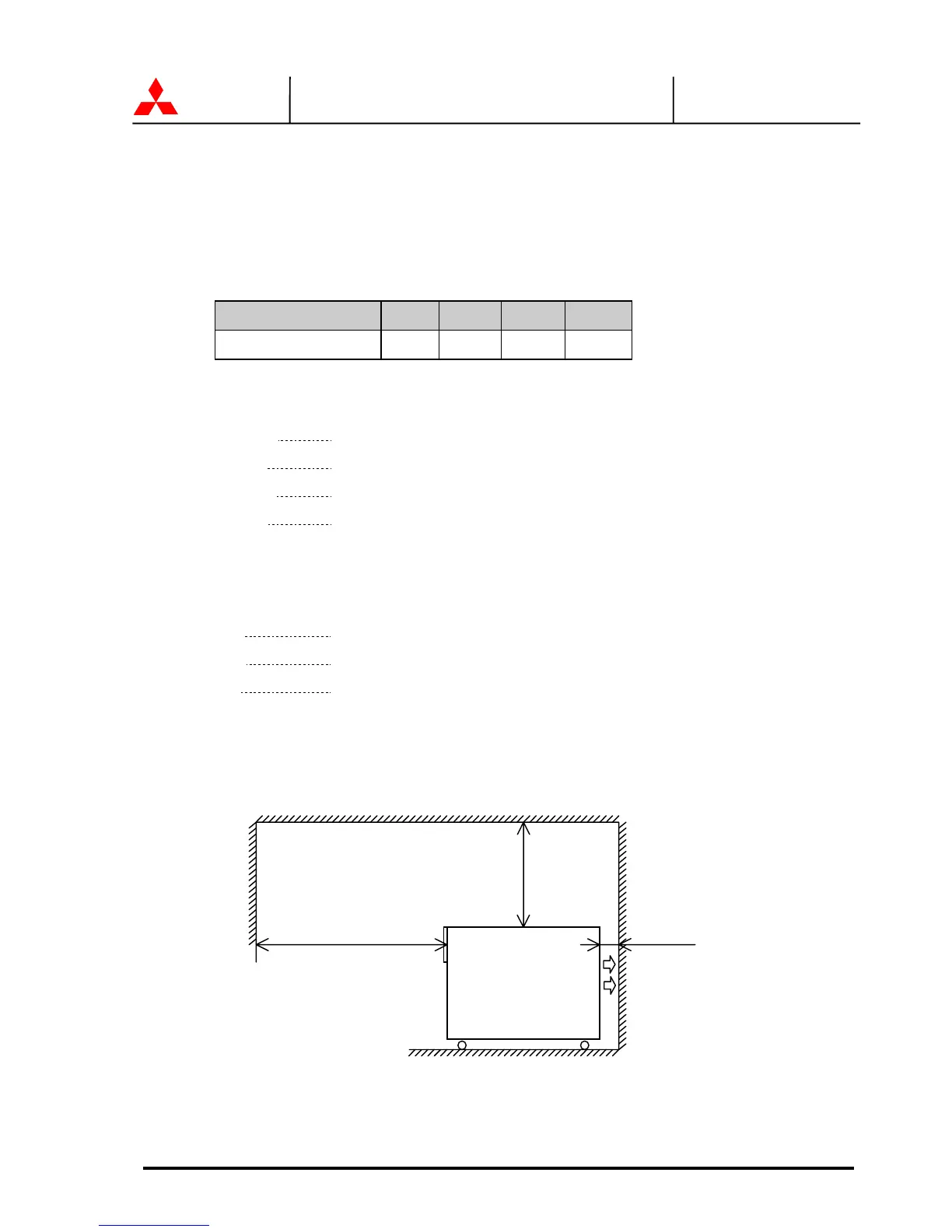

FIGURE 3.1 Clearance for ventilation and maintenance
3.9" (100mm)
For Air exhaust
23.5" (600mm)
For Maintenance
39.2" (1000mm)
For Maintenance
To Next Page
