MITSUBISHI
ELECTRIC
7011A SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
3-5
MITSUBISHI ELECTRIC 7011A SERIES UPS

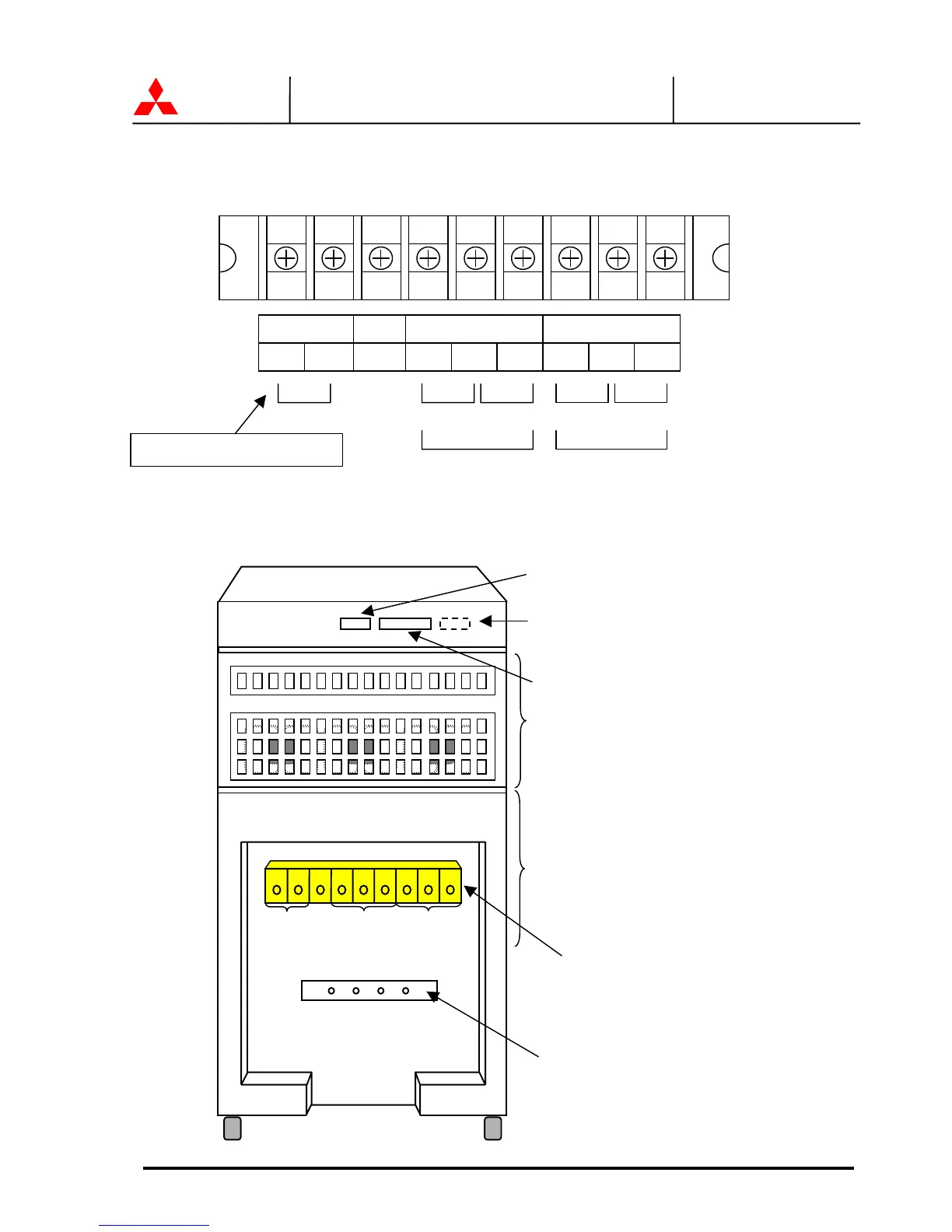

FIGURE 3.3 Terminal Block
FIGURE 3.4 Field Wire Terminal Block (6kVA) (Rear View)
I/O Module
Rectifier/Inverter Module
LL POWER TERMINALS
USE 1/4” (6 MM) DIAMETER BOLTS
5. Field Wire Terminal Block
6. Groundin
Ba
7. RS232C
9. External Signal Terminal Block
(Optional: Cover Plate when not in use)
8. D-sub25Pin Connector
B- B+ G L1 N L2 L1 N L2
(DC Input) (AC Output) (AC Input)
DC INPUT
GROUND
AC OUTPUT AC INPUT
B- B+ G L1 N L2 L1 N L2
216Vdc 120Vac 120Vac
208Vac or 240Vac
120Vac 120Vac
208Vac or 240Vac
Use for External Battery
To Next Page
