MITSUBI
SHI ELECT
RIC 7011
A SERIE
S UPS
MITS
UBISHI
ELECT
RIC
7011A
SERIES UP
S
OWNERS / TECHN
ICAL MANUAL
Page Num
b
er:
3-8

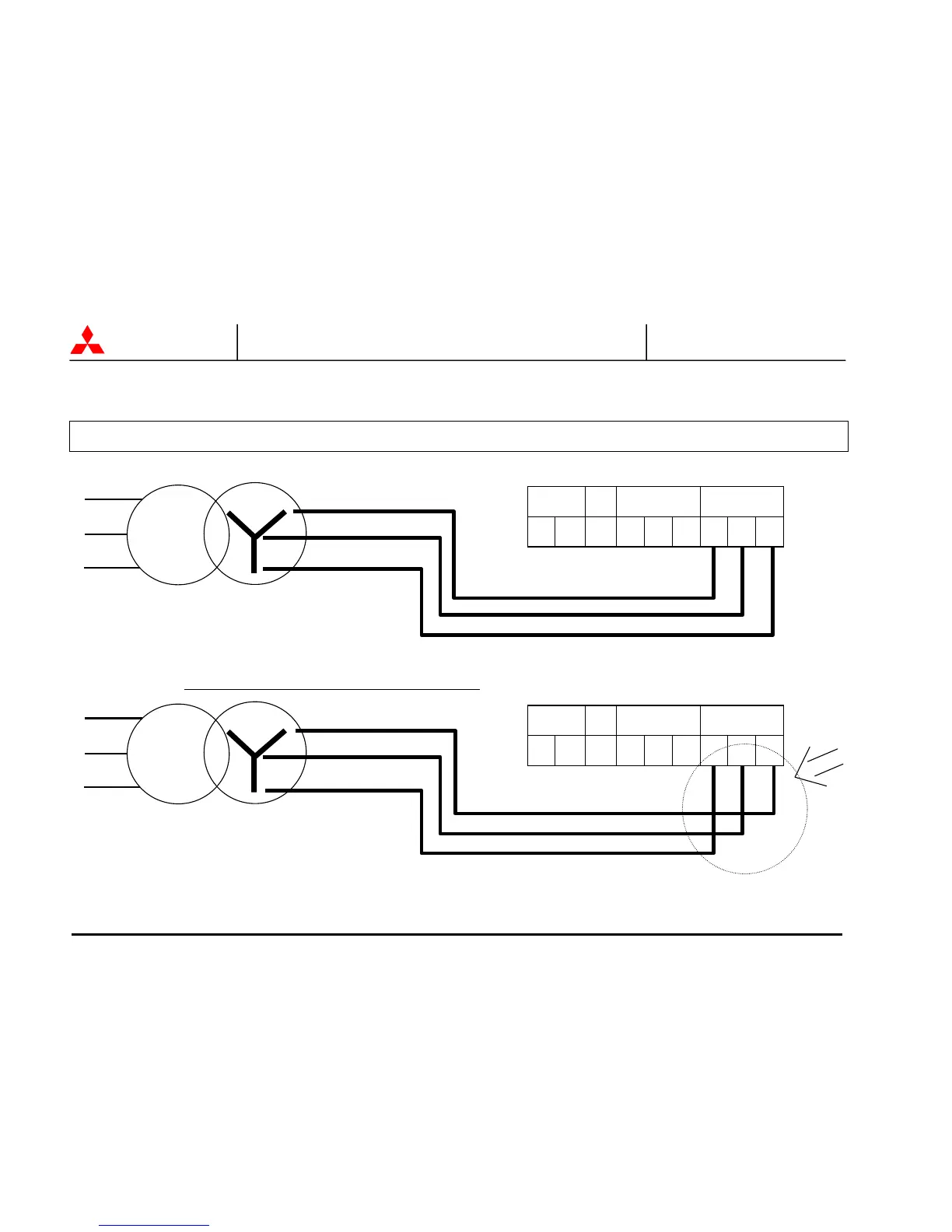

Wire Connect
ion (208V – 120
V W
YE, 2 pha
se, 3wire)
FIGURE 3
.6.1
Correct connecti
on
FIGURE 3
.6.2
Incorrect connecti
on
-> Code 803 Dis
played on L
CD when UPS powere
d up.
UPS Must have C
lockwise Phase R
otation if
Error code 803 o
ccurs, swa
p L1 and L2.
(see figure 3.6.1 and 3.6.2)
DC
INPUT
GROUN
D
AC OUT
PUT
AC INPUT
B-
B
+
G
L
1
N
L
2
L
1
N
L
2
DC
INPUT
GROUN
D
AC OUT
PUT
AC INPUT
B-
B
+
G
L
1
N
L
2
L
1
N
L
2
40
42
Table of Contents
Default Chapter
3
Table of Contents
3
List of Tables
4
How to Use this Manual
6
1 Introduction
10
General
12
Definitions
13
Overview
14
Figure 1.1 Single Line Diagram-Normal Operation
14
Figure 1.2 Single Line Diagram-Bypass Operation
15
Figure 1.3 Single Line Diagram-Battery Operation
16
Figure 1.4 Single Line Diagram - UPS on Maintenance Bypass Operation
16
FIGURE 1.5 UPS Parts Location(6Kva)
17
Figure 1.8 External I/F PCB RYER-A
19
Figure 1.7 UPS Parts Location (Rear View)
19
Specifications
21
Table 1.1 Power Specifications
21
Table 1.2 UPS Module Information
21
Table 1.4 Detail of Specifications
22
2 Operator Controls and Indicators
23
Figure 2.1 Operation / Display Panel
23
Status Indicators
24
Figure 2.2 LCD Display During Normal Operation
24
Lcd Display
26
Figure 2.3 Tree Diagram of LCD Display (Top Page)
26
Figure 2.4 Tree Diagram of LCD Display (Normal Mode)
27
Figure 2.5 Tree Diagram of LCD Display (User Setup Mode)
28
Figure 2.6 Tree Diagram of LCD Display (Start Mode)
28
Figure 2.7 Tree Diagram of LCD Display (Stop Mode)
28
RS232C CONNECTOR (External Communication Connector)
29
Figure 2.9 RS-232C Connectors
29
D-Sub 25 Pin Connector
30
Table 2.1 D-Sub 25 Pin Connector
30
Figure 2.10 D-Sub 25 Pin Connector
30
External Signal Terminal Block
31
Figure 2.11 External Signal Terminal Block (NEC Class2)
31
Figure 2.12 Control Wiring for External Contacts
32
Figure 2.13 Remote "Startup" Contact Connections
33
3 Installation and Operation
34
Transportation and Installation
34
Figure 3.1 Handling
34
Installation Procedure
35
Table 3.1 List of UPS Weights (Lb.)
35
Procedure for Cable Connection
36
Table 3.2 Recommended Cable Size and Torque Requirements
37
Table 3.3 Crimp Type Compression Lug
37
Installation Procedure for Battery
43
Table 3.4 Type and Number of Battery
43
Operating Procedures
46
Maintenance Bypass Set-Up Procedures
48
External Battery Set-Up Procedures
49
4 Response to Ups Failure
50
5 Parts Replacement
51
6 Fault Codes
52
Table 6.1 Failure Code List
53
7 Warranty & out of Warranty Service
55
