Mitsubishi CR760-Q User Manual

Appendix-59
(2) CR760 controller
Replace the fuse of the safety unit (R760SFT) in the controller.

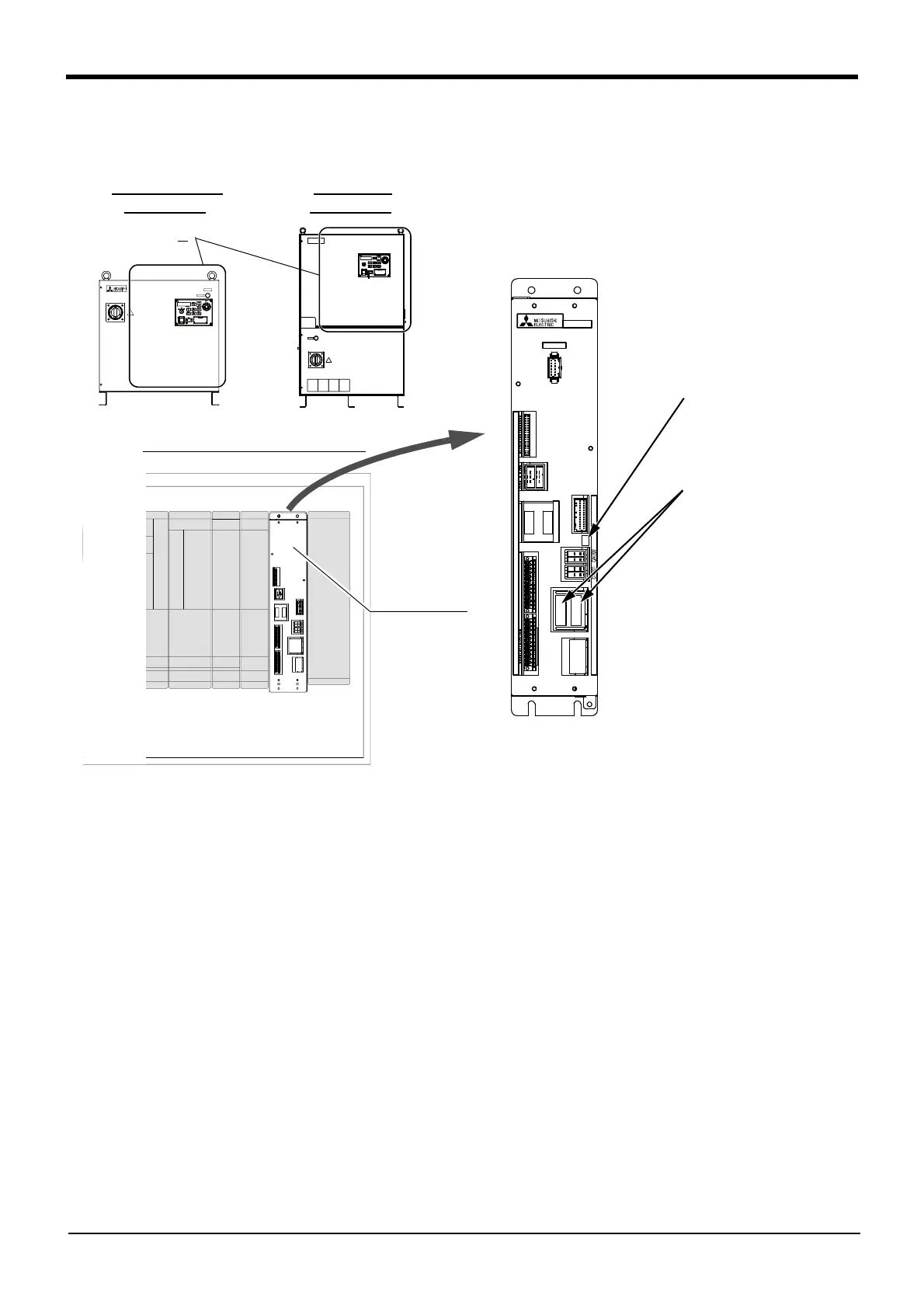

Fig.2-2 ： Pneumatic hand’s power fuse and brake fuse exchange place (CR760 controller)
R760SFT
MCOUT
EMG2 EMG1 CN8A MCPSMC CNMC
CNBRK
HAND/RIOF F
CN8B
Hand fuse (1 pc.)
Model: LM16
Brake fuse (2 pcs.)
Model: GP75
Safety unit (R760SFT)
POWER
CR760
!
Non-CE marking
specification
CE marking
specification
A
View A: Inside of CR760 controller
Safety unit
(R760 SFT)
