2.1.2 Place where fuse (F8) replacement is required.
Removes the top cover of the controller and replaces the fuse (F8) of the printed circuit board (YZ311).

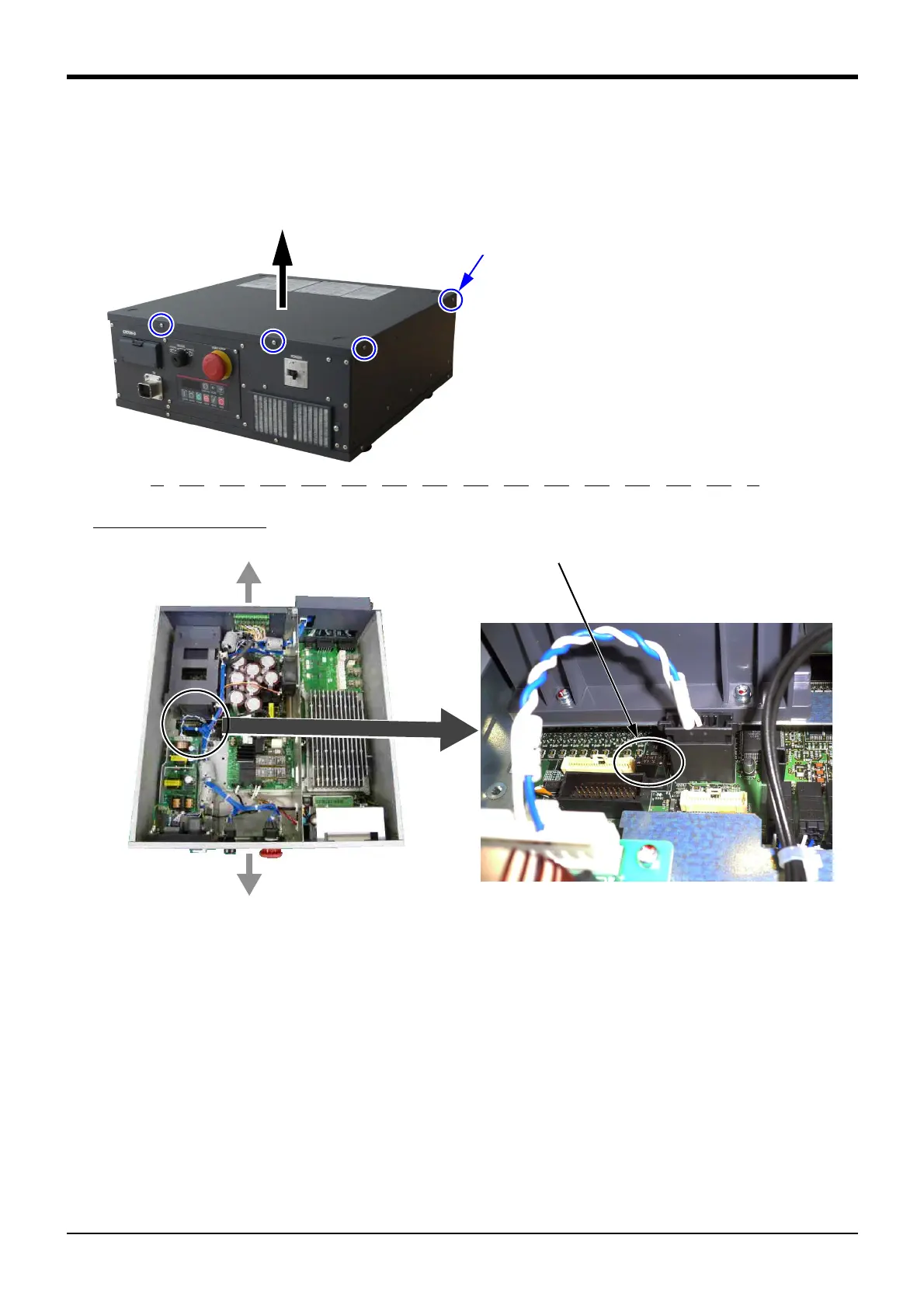

Fig.2-3 ： Fuse (F8) exchange place (CR750/CR751 controller)
Note) Although the figure is the CR750 controller, the fuse to
replace also by the CR751 controller is in the same
position.
Remove the six top cover fixing screws (M3 x 6), and
remove the top cover.
Top cover
Top cover fixing screws
・ CR751 controller: Two screws each at right and left and the rear.
・ CR750 controller: Two screws each at right and left and the front.
Top view inside the controller
CR750: controller front side
Fuse F8 (4A)
Model: LM40
Note) Display "large 4A" on surface of the fuse.
(is not "LM40")
CR751: controller front side
