Mitsubishi FX2N series User Manual

FX2N Series Programmable Controllers Wiring techniques 4
4-6

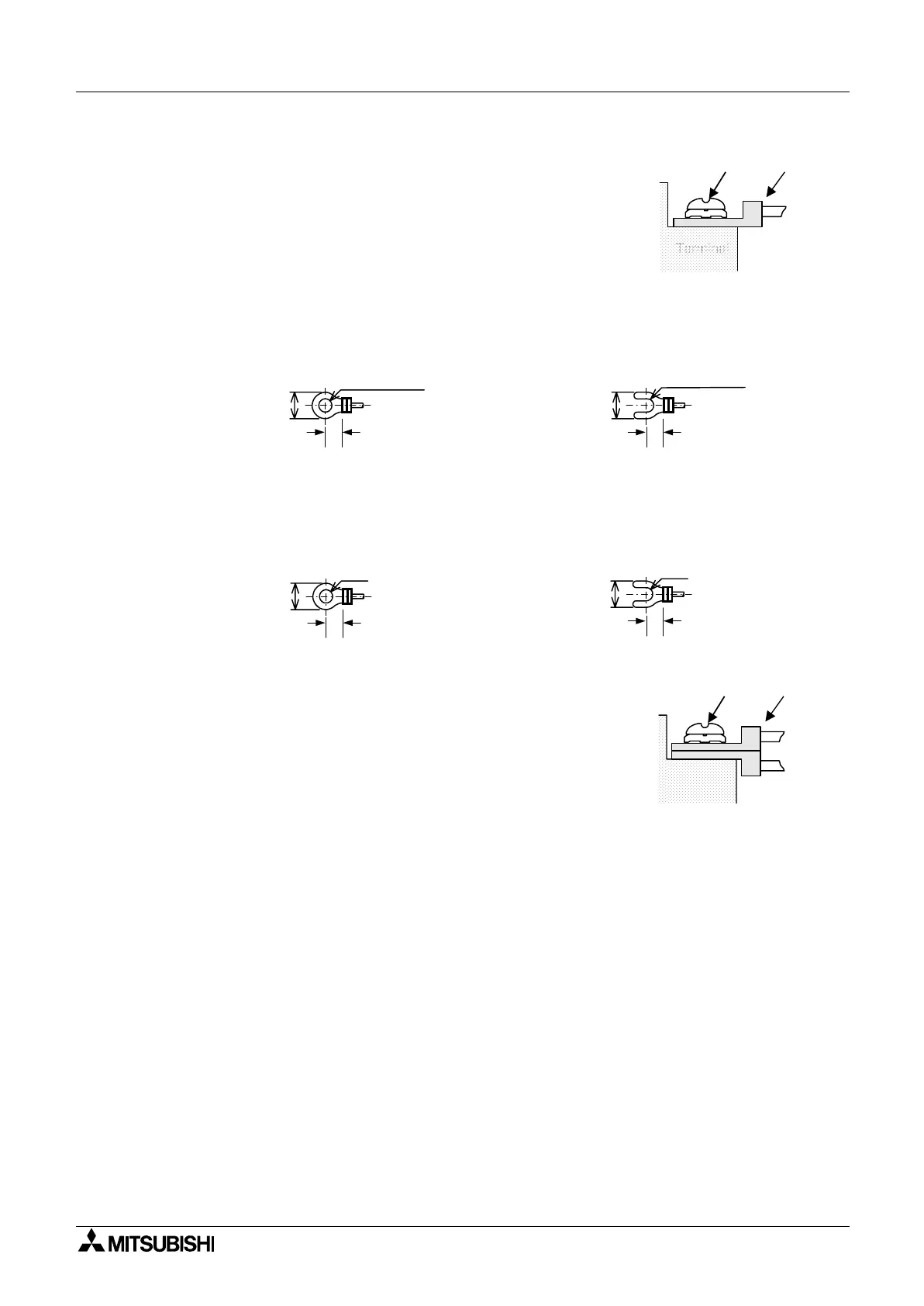

Figure 4.3: ENG
☞
Installing 1 wire per a Terminal
FRE
☞
Raccordement d'un fil sur une borne
GER
☞
Anschluss eines Drahtes an eine Klemme
ITL
☞
Collegamento di un filo ad un morsetto
ESP
☞
Conexión de un hilo en un borne
Figure 4.4: ENG
☞
Crimp Terminals for M3.5 Screws
FRE
☞
Cosse de câble avec raccordement serti pour vis M3,5
GER
☞
Kabelschuhe mit Quetschanschluss für M3,5-Schrauben
ITL
☞
Capocorda con collegamento a scatto per viti M3,5
ESP
☞
Manguitos de cable con conexión de apriete para tornillos M3,5
Figure 4.5: ENG
☞
Crimp Terminals for M3 Screws
FRE
☞
Cosse de câble avec raccordement serti pour vis M3
GER
☞
Kabelschuhe mit Quetschanschluss für M3-Schrauben
ITL
☞
Capocorda con collegamento a scatto per viti M3
ESP
☞
Manguitos de cable con conexión de apriete para tornillos M3
Figure 4.6: ENG
☞
Installing 2 wires per a terminal
FRE
☞
Raccordement de deux fils sur une borne
GER
☞
Anschluss zweier Drähte an eine Klemme
ITL
☞
Collegamento di due fili ad un morsetto
ESP
☞
Conexión de dos hilos en un borne
TerminalTerminal
Terminal
screw
Crimp
terminal
6.8 mm (0.27" )
or less
φ
3.7 (0.15")
6.8 mm (0.27")
or less
φ
3.7 (0.15")
6.0 (0.24") mm or more 6.0 (0.24") mm or more
6.2 mm (0.24" )
or less
φ
3.2 (0.13")
6.2 mm (0.24")
or less
φ
3.2 (0.13")
6.3 (0.25") mm or more
6.3 (0.25") mm or more
Terminal
screw
Crimp
terminal
Terminal

Mitsubishi FX2N series Specifications

General

Type	Programmable Logic Controller (PLC)
Manufacturer	Mitsubishi Electric
Series	FX2N
Power Supply	100-240VAC or 24VDC
Program Capacity	8, 000 steps
Expansion	Yes, via expansion modules
Operating Temperature	0 to 55°C
I/O Points	16 to 256 points
Communication	RS-422, RS-485
Programming Language	Ladder Logic
Instruction Execution Speed	0.08 µs/basic instruction
Mounting	DIN rail
Data Memory	8, 000 words
Expansion Modules	Analog, digital, communication
Humidity	5 to 95% RH (non-condensing)
