7
FX3U-64CCL User's Manual
Standards
Caution to conform with EC Directives
• Installation in Enclosure
Programmable logic controllers are open-type devices that must be installed and used within conductive
control cabinets. Please use the programmable logic controller while installed within a conductive shielded
control cabinet. Please secure the cabinet door to the control cabinet (for conduction).
Installation within a control cabinet greatly affects the safety of the system and aids in shielding noise from the
programmable logic controller.
• Control cabinet
- The control cabinet must be conductive.
- Ground the control cabinet with the thickest possible grounding cable.
- To ensure that there is electric contact between the control cabinet and its door, connect the cabinet and
its doors with thick wires.
- In order to suppress the leakage of radio waves, the control cabinet structure must have minimal
openings. Also, wrap the cable holes with a shielding cover or other shielding devices.
- The gap between the control cabinet and its door must be as small as possible by attaching EMI gaskets
between them.
*1. These wires are used to improve the conductivity between the door and control cabinet.

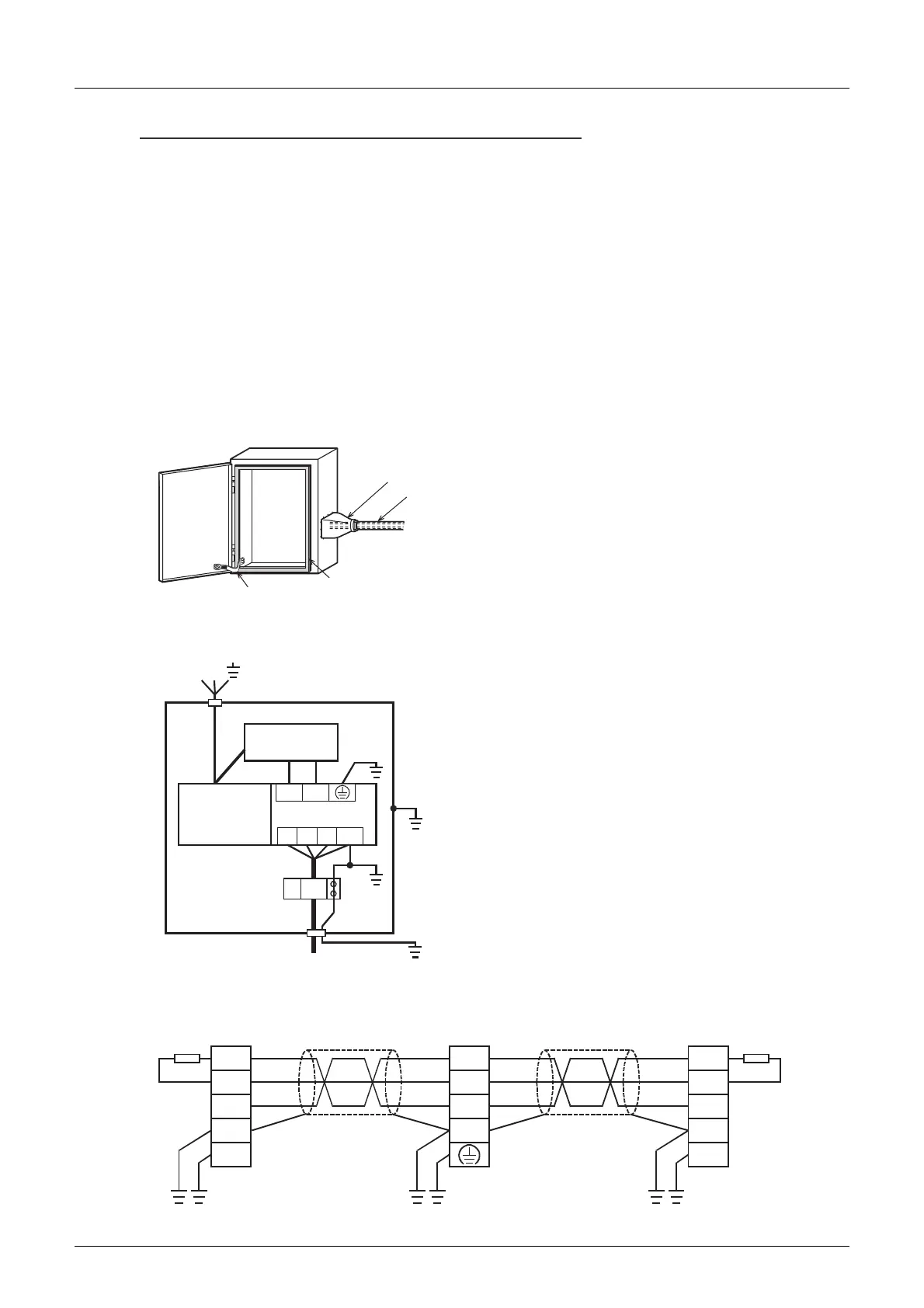

• Configuration example inside control cabinet
• Wiring simplified diagram
Shielding cover
Shielded cable
Wires*1
EMI gasket
Main unit FX3U-64CCL
24V DC power
supply
Power
cable
Ground
cable
Ground
cable
Cable clamp
Conductive control cabinet
CC-Link dedicated cable
24+ 24-
DA DB SLDDG
LN
(AD75CK,
MITSUBISHI)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
DA
DB
DG
SLD
FG
Master
unit
FX
3U
-64CCL
CC-Link
Dedicated
Cable
CC-Link
Dedicated
Cable
Other
station
Termi-
nating
resistor
Termi-
nating
resistor
To Next Page
