5.3 CC-Link wiring
5.3.1 CC-Link cabling
Use dedicated CC-Link cables in the CC-Link system.
If any other cable is used, the performance of the CC-Link system cannot be guaranteed.
For the specifications of CC-Link dedicated cables, please refer to the CC-Link catalog published by the
CC-Link Partner Association or the following website:
CC-Link Partner Association website: http://www.cc-link.org/
5.3.2 Wiring with CC-Link cabling
Wire the 64CCL to the CC-Link with CC-Link network dedicated cables as follows.

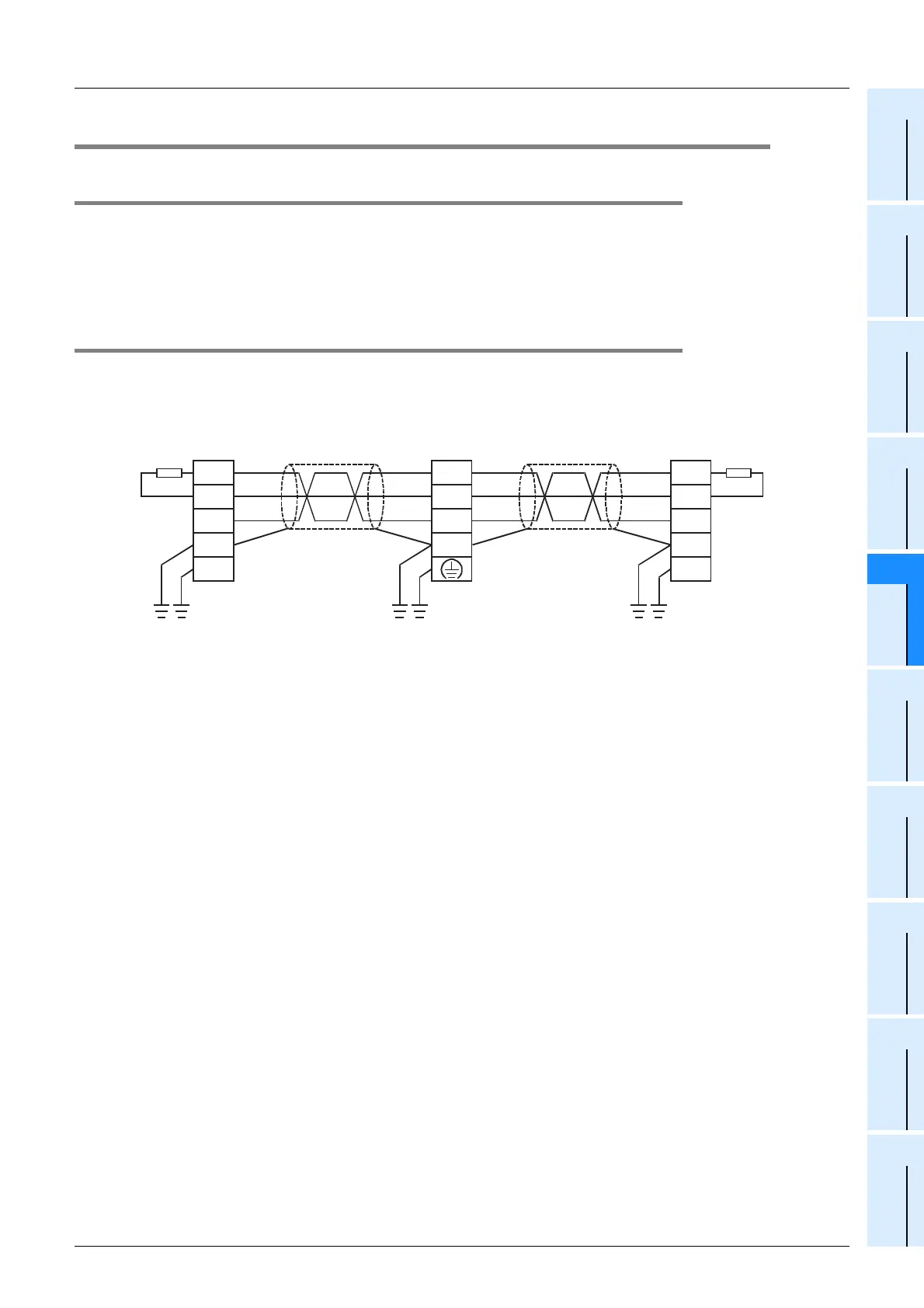

• Wiring example
- Connect the [DA] and [DA] terminals, [DB] and [DB] terminals and [DG] and [DG] terminals of each
station respectively with CC-Link dedicated cables.
- Connect the [SLD] terminal of each station to the shielded area of the CC-Link dedicated cables.
- Execute Class D grounding to the [FG] terminal of each station.
- Each station can be wired without regard to the station number sequence.
- Connect a terminating resistor between the [DA] and [DB] terminals of the terminal station. The
terminating resistor is packed together with the master unit.
- The maximum transmission distance and distance among stations for the CC-Link system varies
depending on the specified transmission rate. For details, follow the specifications described in the
manual of the CC-Link master unit.
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
DA
DB
DG
SLD
FG
Master
unit
FX
3U -64CCL
CC-Link
Dedicated
Cable
CC-Link
Dedicated
Cable
Other
station
Termi-
nating
resistor
Termi-
nating
resistor
