Mitsubishi LANCER 2012 User Manual

6-8
For emergencies
6
Jack
N00832700255

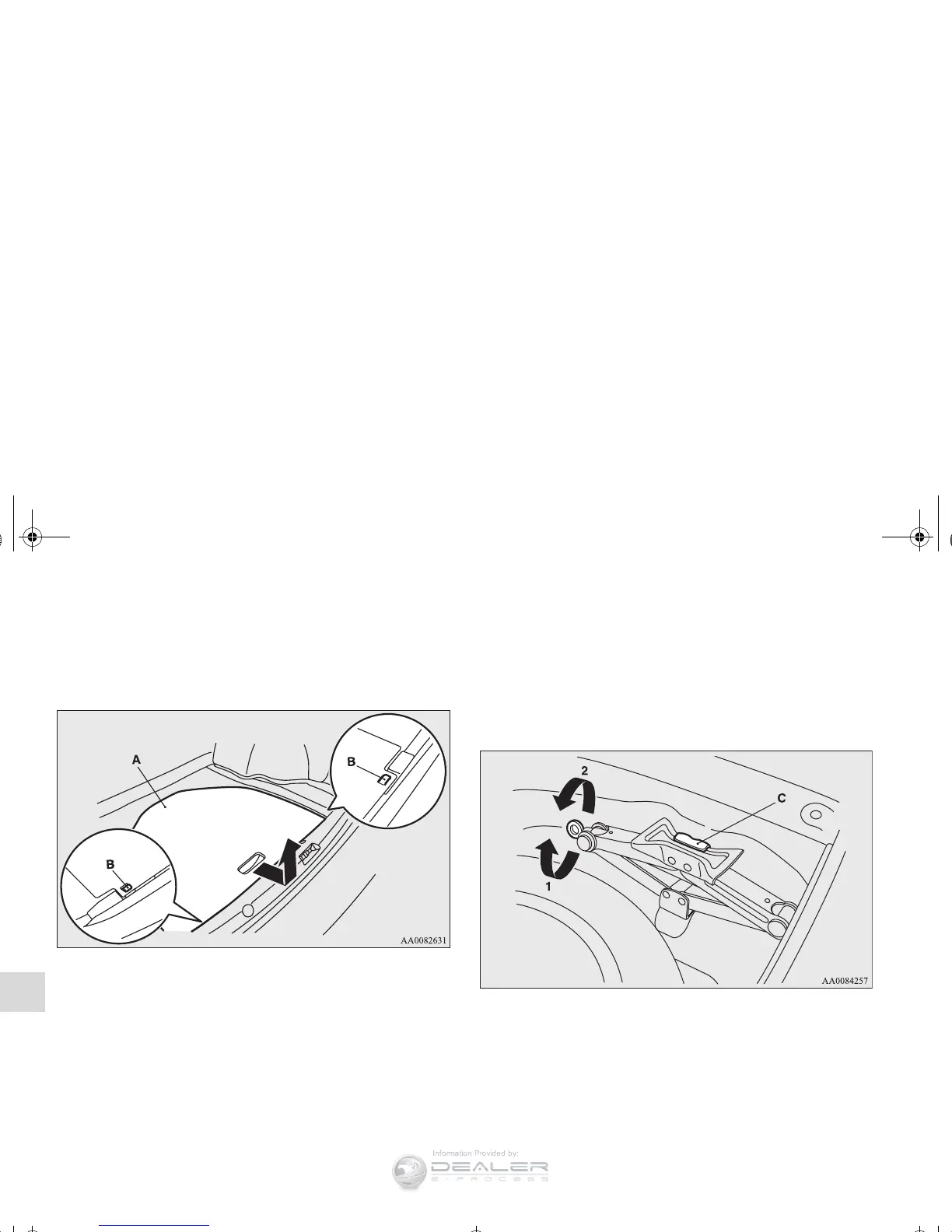

Before removing the jack, lift up the luggage floor board.
For front-wheel drive vehicles, pull the luggage floor board (A)
rearward to release the hooks (B), and then lift it up.
To r emov e
Turn the shaft end (1) so that the jack contracts, then remove it
from the storage bracket (C).
To s tore
Turn the shaft end (2) by hand to expand the jack until it is held
firmly in position.
BK0138600US.book 8 ページ ２０１１年７月１７日 日曜日 午後２時３２分
