7-82

Vehicle care and maintenance

Tail lights and back-up lights

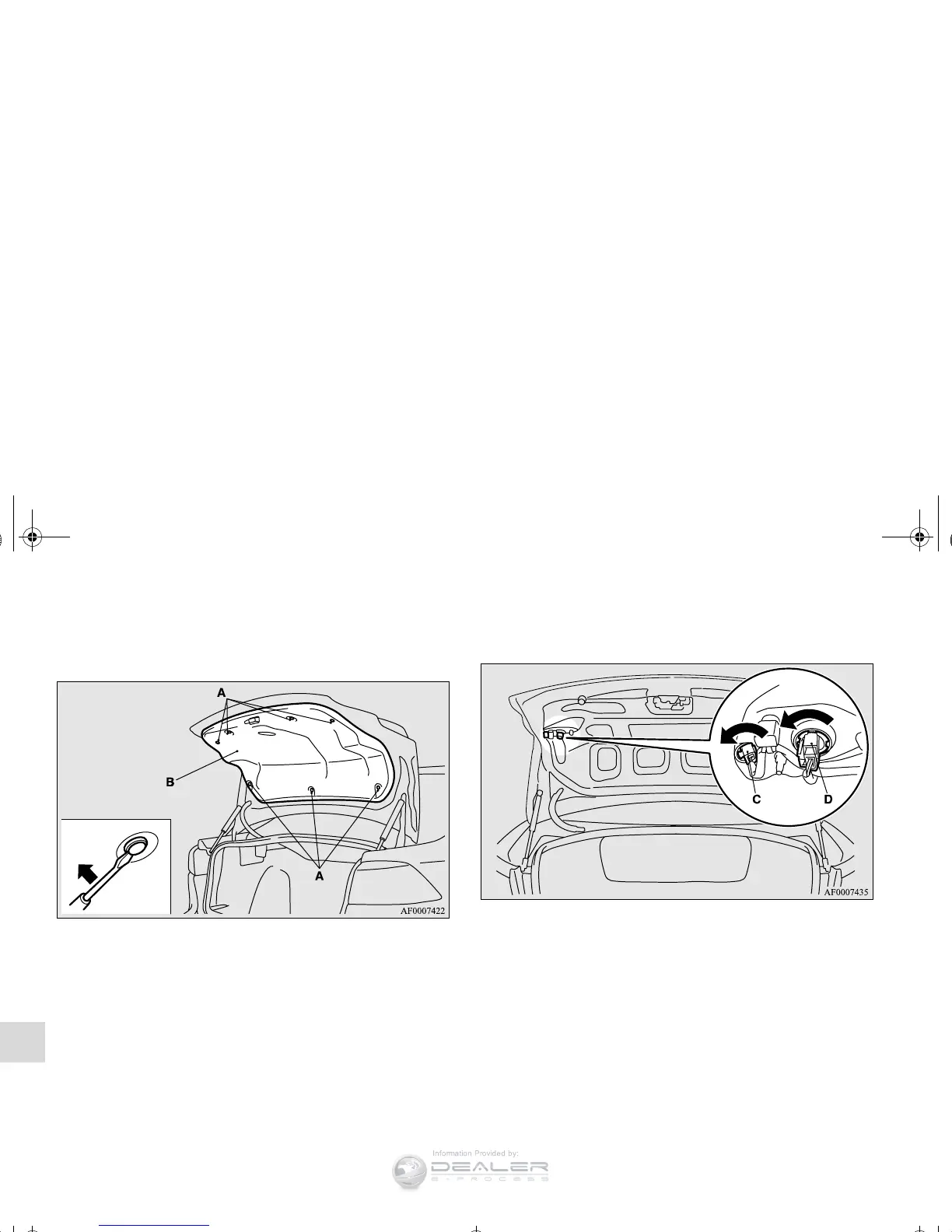

1. Open the trunk lid.

Remove the clips (A) and remove the cover (B).

2. Remove the socket and bulb assemblies by turning them

counterclockwise.

C- Tail light

D- Back-up light

BK0138600US.book 82 ページ２０１１年７月１７日　日曜日　午後２時３２分
