7-66
Vehicle care and maintenance
7
Parking and side-marker lights (except for vehi-
cles with high intensity discharge headlights)
N00917300512

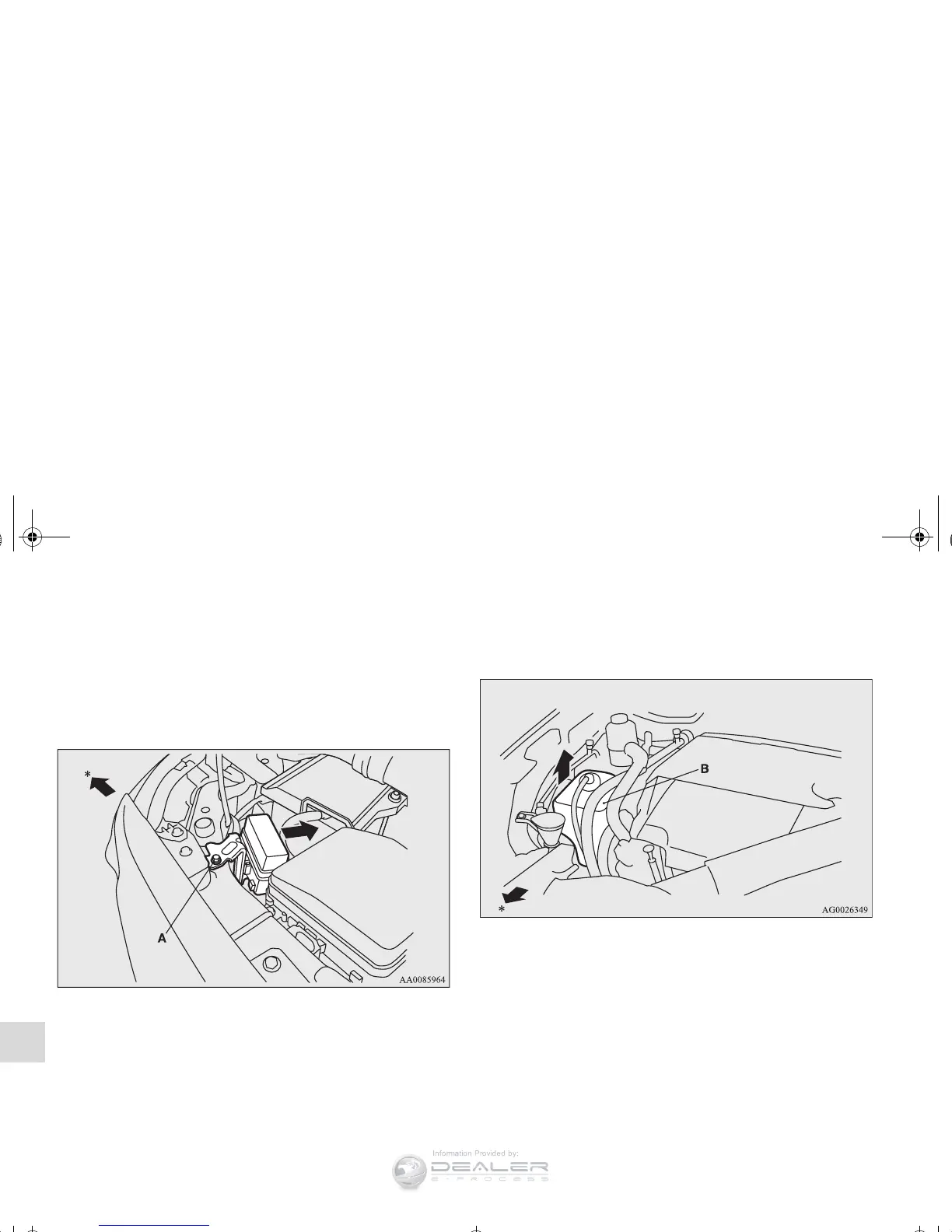

1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.
2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).
*- Front of the vehicle
*- Front of the vehicle
BK0138600US.book 66 ページ ２０１１年７月１７日 日曜日 午後２時３２分
