Vehicle care and maintenance

7-7

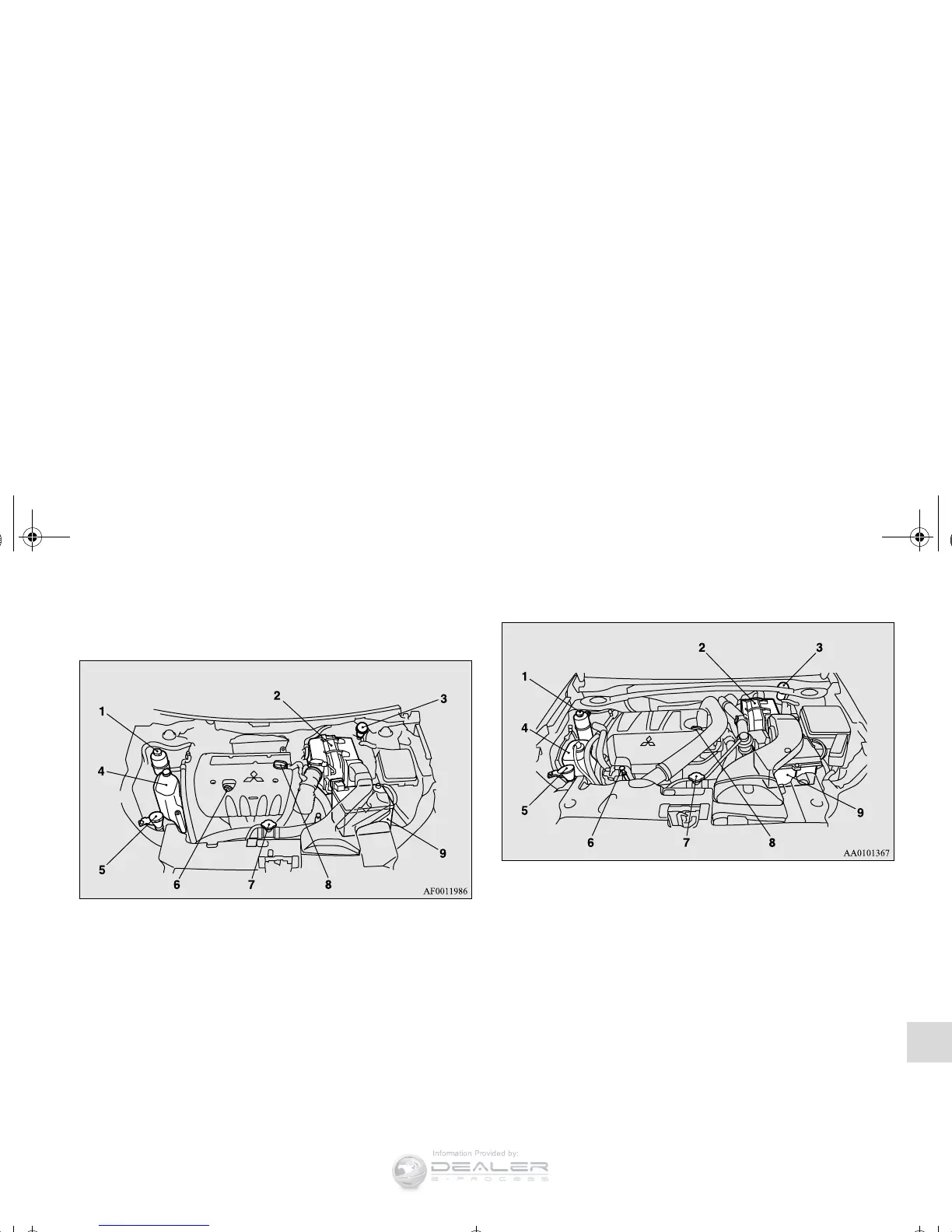

View of the engine compartment

N00937600667

Except for vehicles with turbocharger

1- Power steering fluid reservoir (if so equipped)

2- Air cleaner filter

3- Brake fluid/Clutch fluid reservoir (if so equipped)

4- Engine coolant reservoir

5- Windshield washer fluid reservoir

6- Engine oil level dipstick

7- Radiator cap

8- Engine oil filler cap

9- Battery

Vehicles with turbocharger

BK0138600US.book 7 ページ２０１１年７月１７日　日曜日　午後２時３２分
