3-158

Features and controls

3

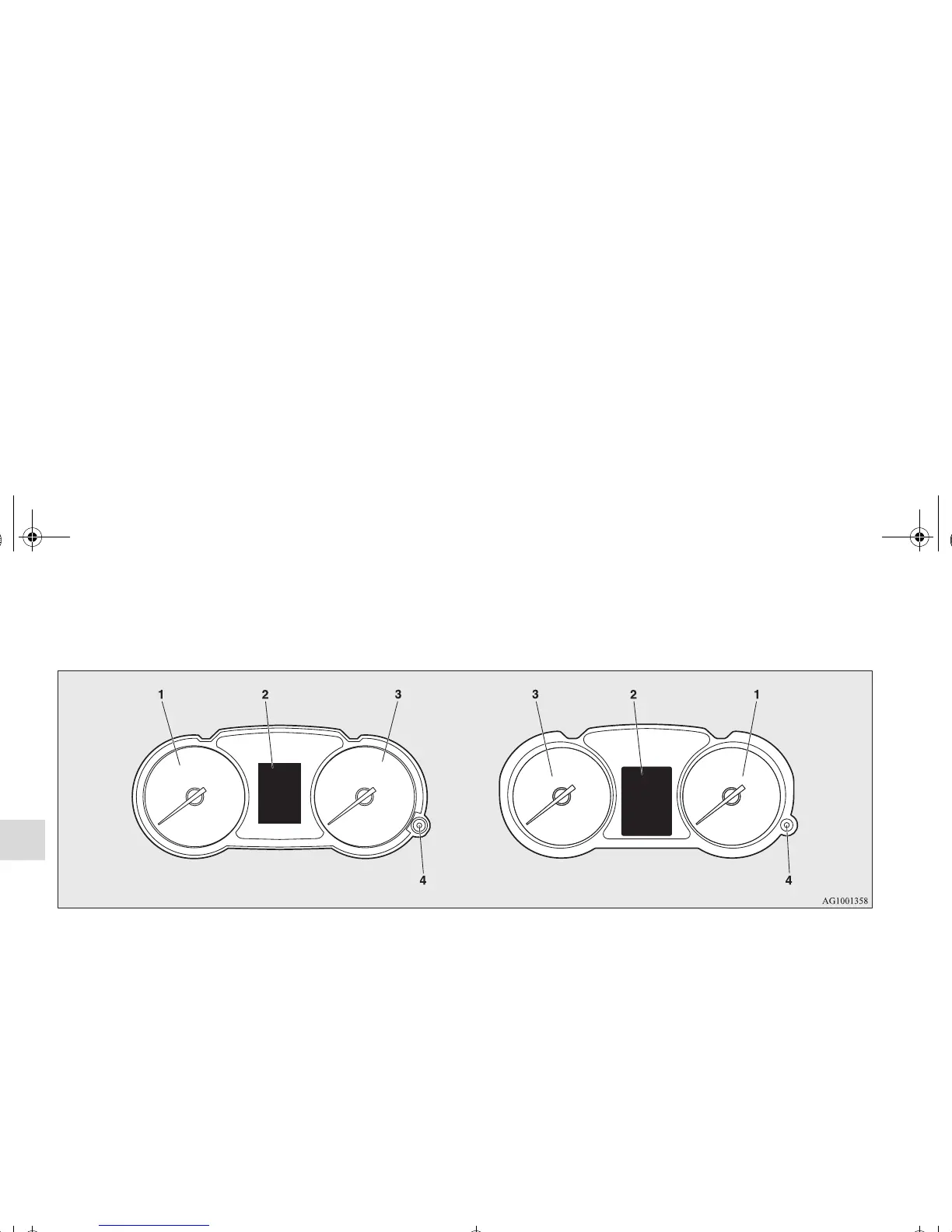

Instrument cluster

N00519000274

Type 1 Type 2

1- Speedometer → P.3-159

2- Multi-information display → P.3-162

Information screen display list → P.3-199

3- Tachometer → P.3-160

4- Rheostat meter illumination button → P.3-161
