5-12

Comfort controls

Manual air conditioning with MAX A/C

mode

(if so equipped)

N00730300256

The air conditioning can only be used while the engine is run-

ning.

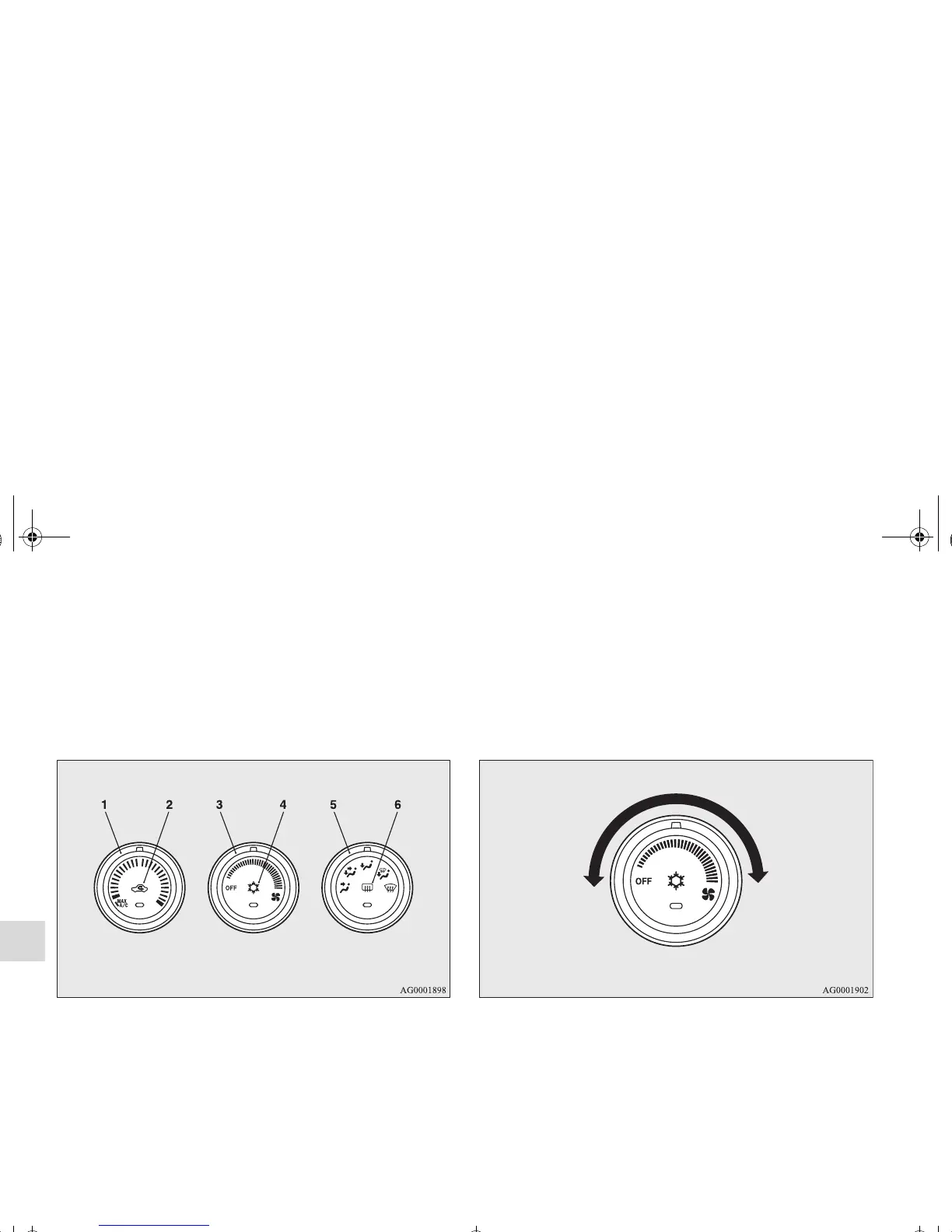

Control panel

N00730500216

Blower speed selection dial

N00736500146

When the ignition switch is in the “ON” position, select the

blower speed by turning the blower speed selection dial.

Turning the dial clockwise will increase the blower speed;

turning the dial counterclockwise will decrease it. When the

dial is set to the “OFF” position, all fan-driven airflow will

stop.

1- Temperature control dial

2- Air selection switch

3- Blower speed selection dial

4- Air conditioning switch

5- Mode selection dial

6- Electric rear window defogger switch → P.3-235
