Features and controls

3-195

Changing the momentary fuel consumption display

(Type 2)

N00563600013

It is possible to change the bar graph setting of the momentary

fuel consumption display.

1. Press and hold the multi-information meter switch for

about 2 seconds or more to switch from the setting mode

screen to the menu screen.

Refer to “Changing the function settings (With ignition

switch in the “ON” position)” on page 3-184.

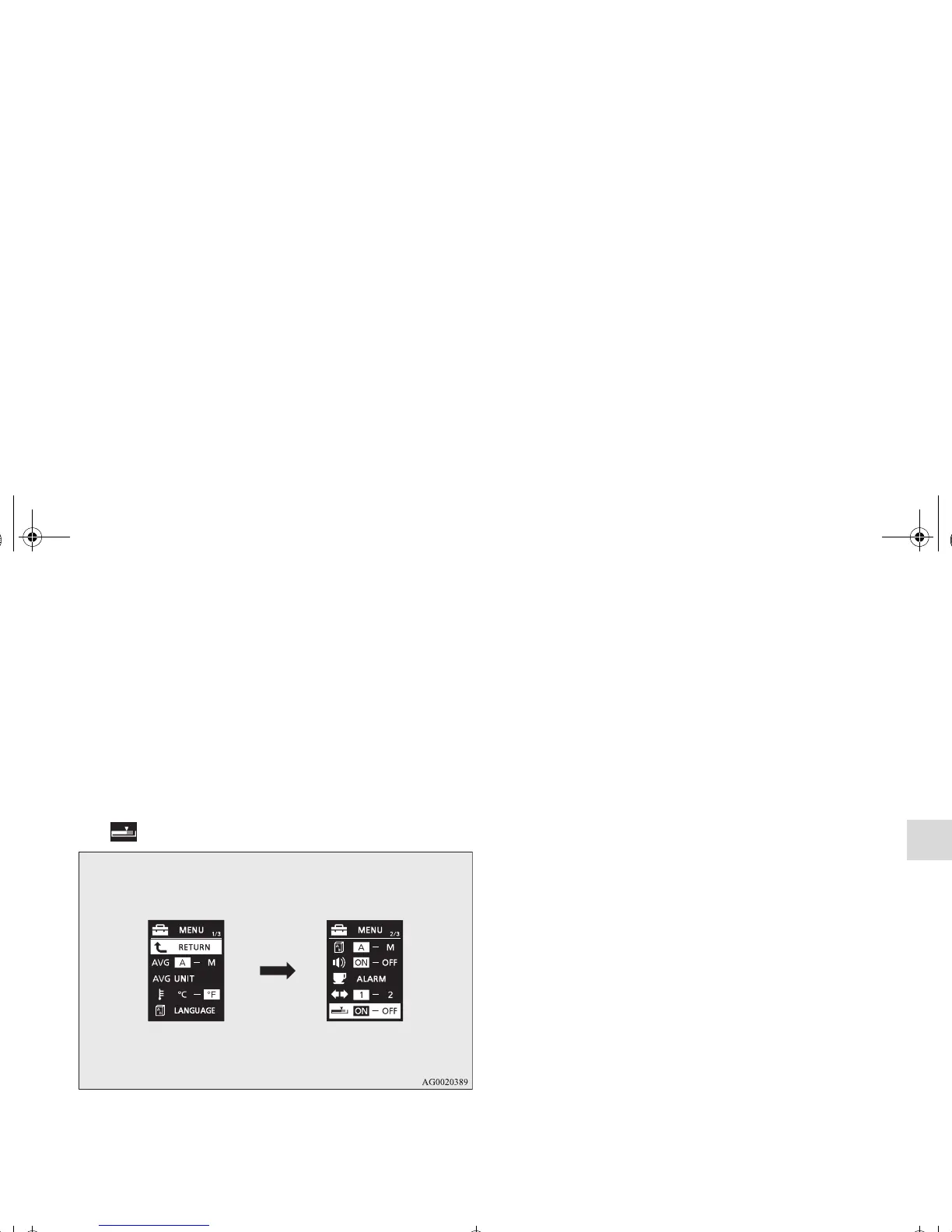

2. Lightly press the multi-information meter switch to select

. (changing the momentary fuel consumption display)

3. Press and hold the multi-information meter switch for

about 2 seconds or more to switch in sequence from ON

(with the green bar graph) → OFF (without the green bar

graph) → ON (with the green bar graph).

The setting changes to the selected bar graph setting.
