6. HO.W - . .* T.0 , _* USE EACH FUNCTION r
.BIIE:LsECA 1

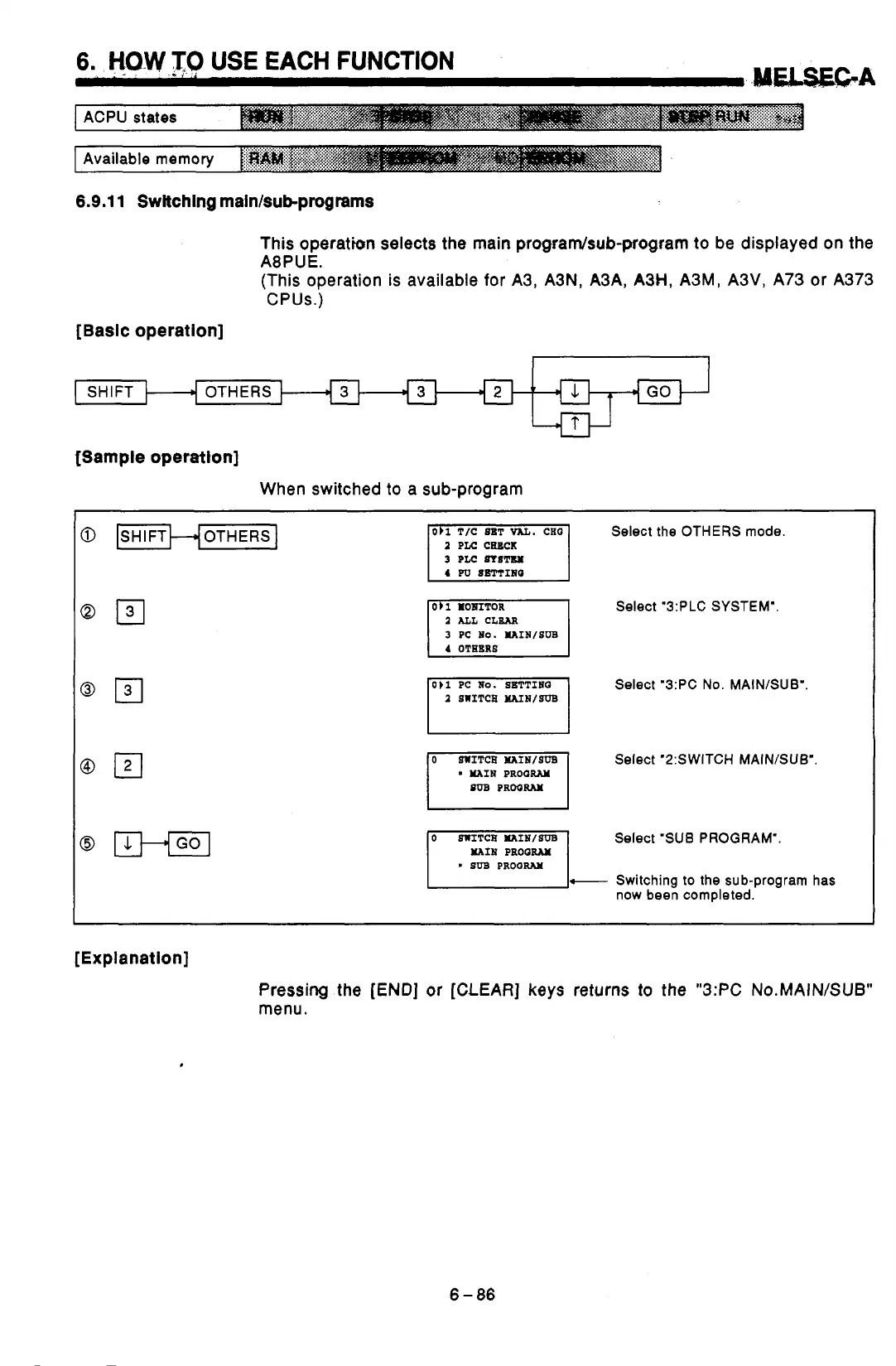

6.9.1 1 Switching main/subprograms
y
This operation selects the main progrardsub-program to be displayed on the r
A8PUE.
(This operation
is available for A3, A3N, A3A, A3H, A3M, A3V, A73 or A373
CPUS.)
[Basic operation]
fSampie operation]
When switched
to a sub-program
0 [SHIFTHOTHERS I
Select the OTHERS mode.
1 PLC CBBCX
3 PLC BISTEY
Select "3:PLC SYSTEM".
2 ALL CLEAR
3 PC NO. MAIN/SUB
Select '3:PC No. MAINISUB".
1 SWITCE MAIN/SUB
Select '2:SWITCH MAIN/SUB'.
* MAIN PROGRAM
SUB PROORAM
Select "SUB PROGRAM'.
MAIN PROORAT
* SUB PROORAM
- Switching to the sub-program has
now been completed.
[Explanation]
Pressing the [END]
or [CLEAR] keys returns to the "3:PC No.MAIN/SUB"
menu.
!
?
Y
i
1
6-86
