6. ~ HOW . .. TO USE EACH FUNCTION
AlCELSEC-A

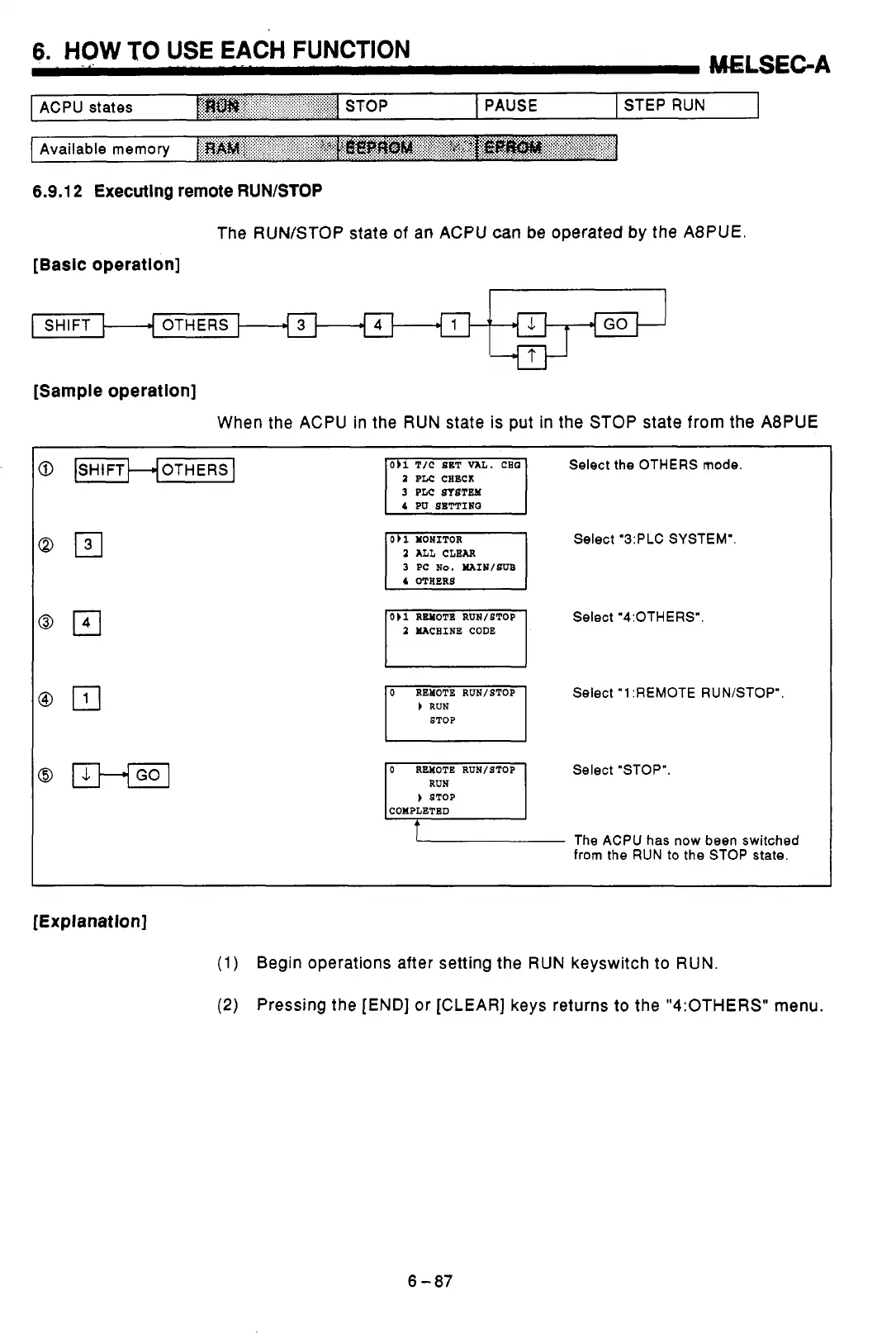

6.9.1 2 Executing remote RUN/STOP
The RUNETOP state of an ACPU can be operated by the A8PUE.
[Basic operation]
SHIFT OTHERS
GO
[Sample operation]
When the ACPU in the RUN state is put in the STOP state from the A8PUE
o [SHIFTHOTHERS 1
Select the OTHERS mode.
3 PLC SYSTEM
2 PLC
CHECK
Select '3:PLC SYSTEM'.
2 ALL CLEAR
3 PC No. MAINISW
Select "4:OTHERS".
2 MACHINE CODE
REMOTE RUN/STOP Select "1:REMOTE RUN/STOP"
Select "STOP".
1 STOP
The ACPU has now been switched
from the RUN to the STOP state.
[Explanation]
(1) Begin operations after setting the RUN keyswitch to RUN.
(2) Pressing the [END] or [CLEAR] keys returns to the "4:OTHERS" menu.
6 -87
