5 - 47 5 - 47
MELSEC-Q/QnA
5 SEQUENCE INSTRUCTIONS
A FEND instruction is executed during an interrupt program, and before the execution of an
IRET instruction. (Error code: 4221)
A FEND instruction is executed between the CHKCIR and CHKEND instructions.
(Error code: 4230)
A FEND instruction is executed between the IX and IXEND instructions. (Error code: 4231)
[Program Example]

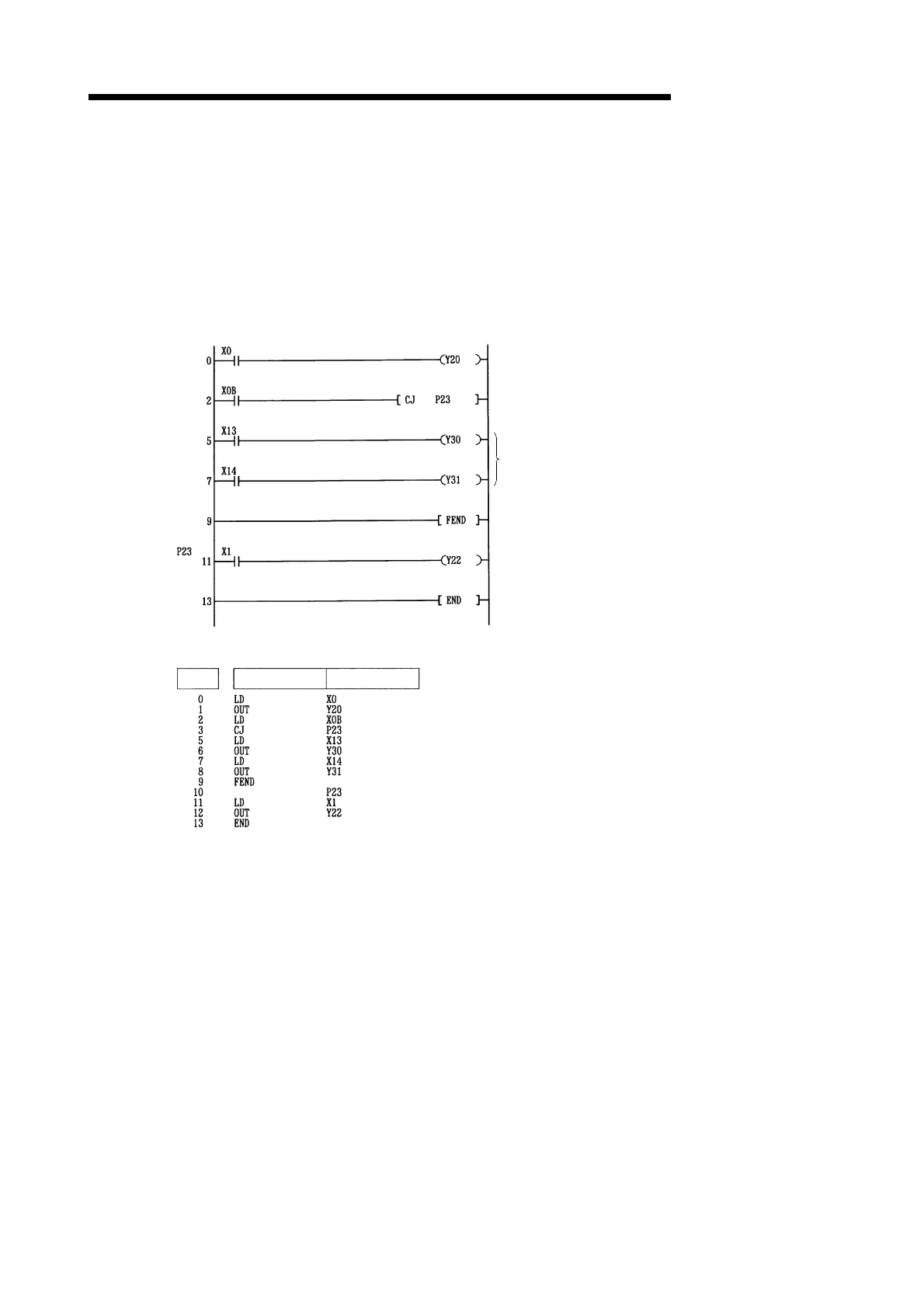

(1) The following program uses the CJ instruction.
[Ladder Mode]
When XB is ON, jumps to label P23; from
P23, executes the next step
Executed when XB is OFF
Indicates the termination of the sequence
program when XB is OFF
[List Mode]
Steps Instruction
Device
