MELSEC-Q/QnA
2 INSTRUCTION TABLES
2.3.5 Master control instructions

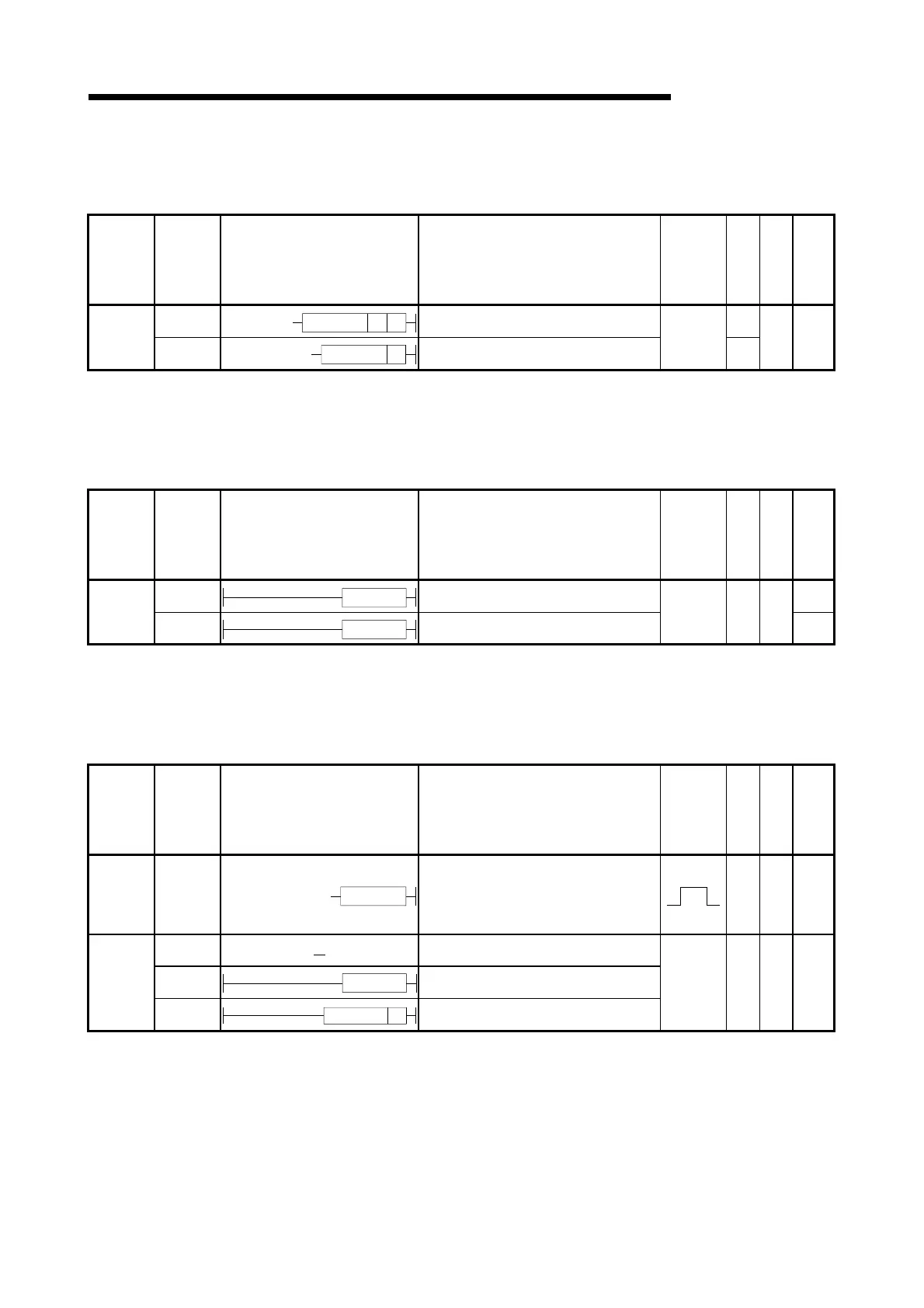

Table 2.7 Master Control Instructions
Category
Instruction
Symbols
Symbol Processing Details
Execution
Condition
Number of
Basic Steps
Subset
See for
Description
MC
MC n D
• Starts master control 2
Master
control
MCR
MCR n
• Resets master control 1
5-42
2.3.6 Termination instruction
Table 2.8 Termination Instructions
Category
Instruction
Symbols
Symbol Processing Details
Execution
Condition
Number of
Basic Steps
Subset
See for
Description
FEND
FEND
• Termination of main program 5-46
Program
end
END
END
• Termination of sequence program
1
5-48
2.3.7 Other instructions
Table 2.9 Other Instructions
Category
Instruction
Symbols
Symbol Processing Details
Execution
Condition
Number of
Basic Steps
Subset
See for
Description
Stop STOP
STOP
• Terminates sequence operation after input
condition has been met
• Sequence program is executed by placing
the RUN/STOP key switch back in the
RUN position
15-50
NOP • Ignored (For program deletion or space)
NOPLF
NOPLF
• Ignored (To change pages during
printouts)
Ignored
PAGE
PAGE n
• Ignored (Subsequent programs will be
controlled from step 0 of page n)
15-52
