MELSEC-Q/QnA
6 BASIC INSTRUCTIONS
[Operation Errors]
(1) In the following cases an operation error occurs, the error flag (SM0) turns ON, and an error
code is stored at SD0.
• Data at
S
when GBIN instruction was issued is outside the 0 to 32767 range.
• Data at
S
when DGBIN instruction was issued is outside the 0 to 2147483647 range.

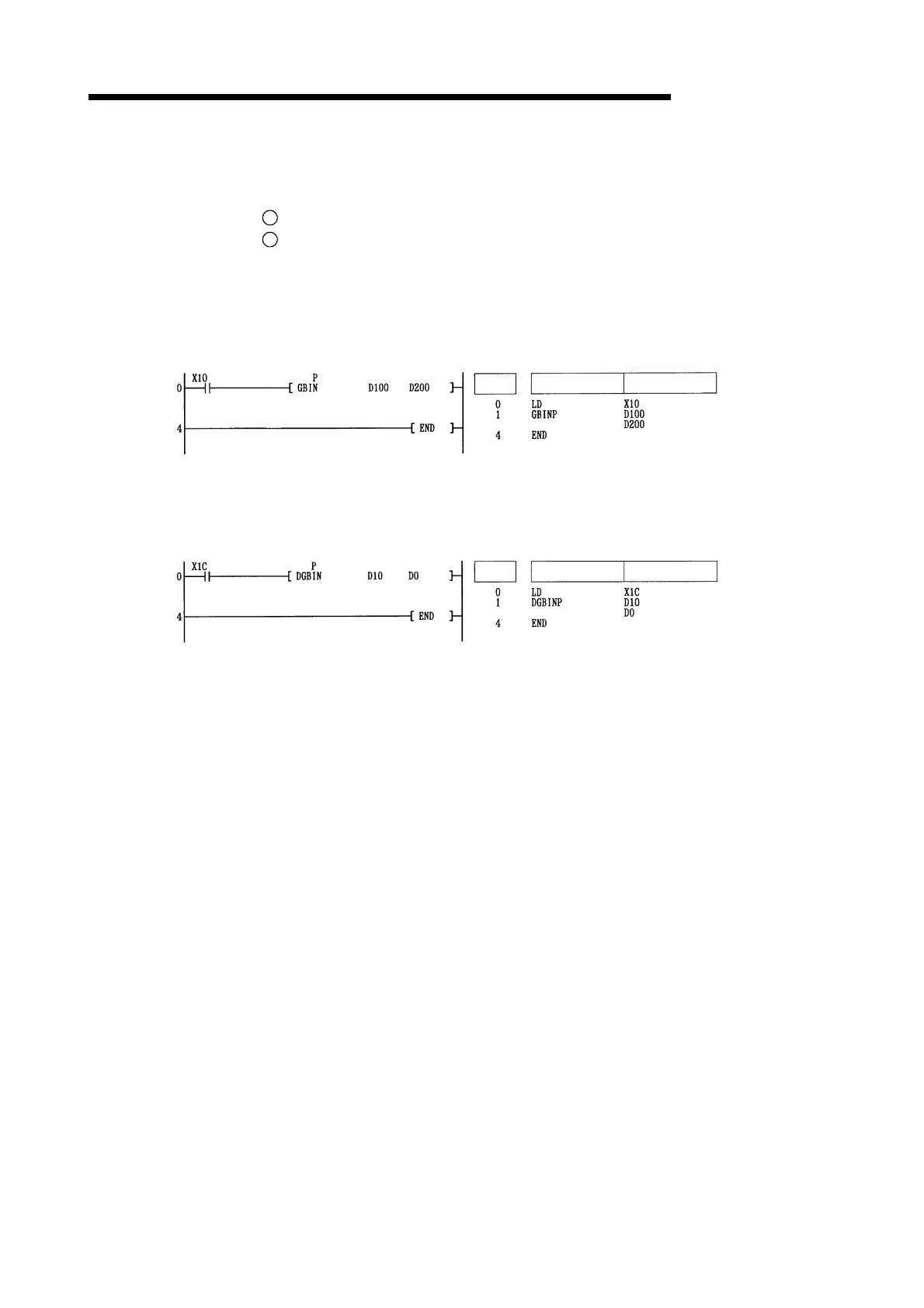

[Program Example]
(1) The following program converts the Gray code data at D100 when X10 is ON to BIN data, and
stores the result at D200.
[Ladder Mode] [List Mode]
Instruction
Steps
Device
(2) The following program converts the Gray code data at D10 and D11 to BIN data when X1C is
ON, and stores the result at D0 and D1.
[Ladder Mode] [List Mode]
InstructionSteps
Device
