Mitsubishi MELSEC QCPU User Manual

6 - 79 6 - 79
MELSEC-Q/QnA
6 BASIC INSTRUCTIONS
[Operation Errors]
(1) There are no operation errors associated with the MOV(P) or DMOV(P) instructions.
[Program Example]

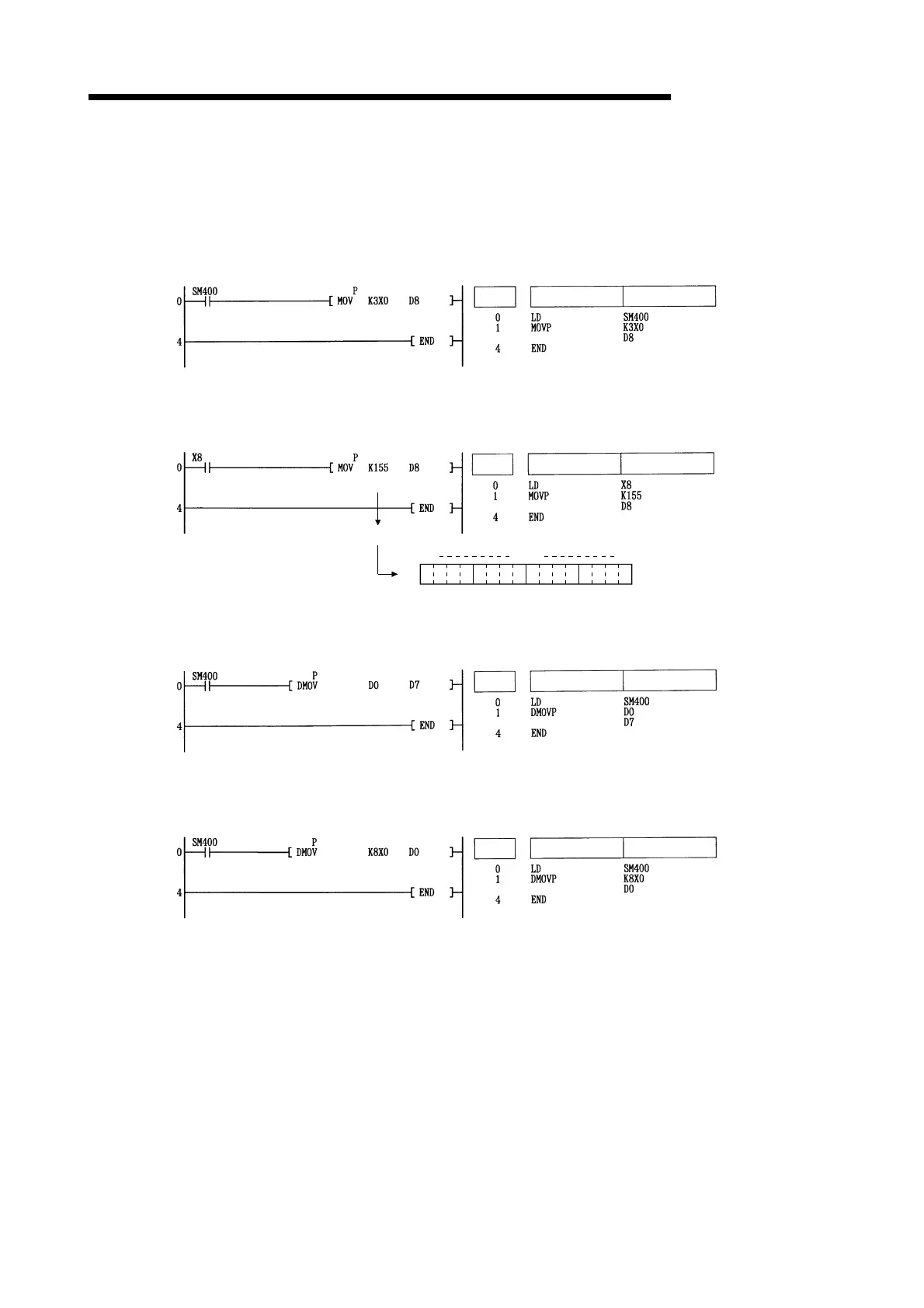

(1) The following program stores input data from X0 to XB at D8.
[Ladder Mode] [List Mode]
Device
Instruction
Steps
(2) The following program stores the constant K155 at D8 when X8 goes ON.
[Ladder Mode] [List Mode]
D8
1
00
1
00000000
1
0
11
b15 b8b7 b0
009B
H
Steps
Instruction
Device
(3) The following program stores the data from D0 and D1 at D7 and D8.
[Ladder Mode] [List Mode]
Device
Instruction
Steps
(4) The following program stores the data from X0 to X1F at D0 and D1.
[Ladder Mode] [List Mode]
Steps
Instruction
Device
