[Program Example]

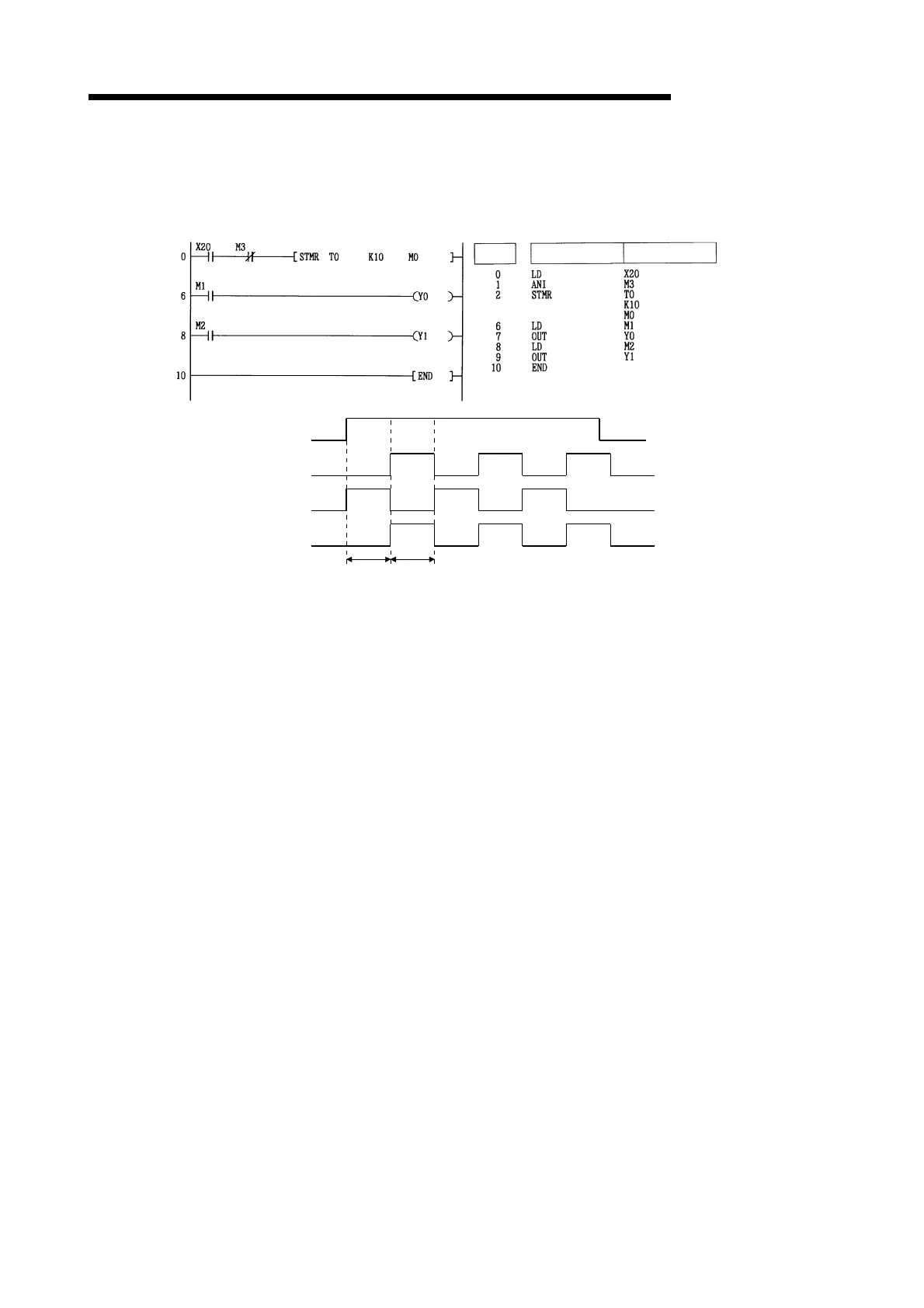

(1) The following program turns Y0 and Y1 ON and OFF once each second (flicker) when X20 is
ON. (Uses the 100ms timer)
[Ladder Mode] [List Mode]
Steps
Instruction
Device
M1,Y0
X
20
M2,Y1
M3
1 s 1 s
