MELSEC-Q/QnA
3 CONFIGURATION OF INSTRUCTIONS
(c) Other
1) Bit data
Device numbers can be index modified when performing digit designation.
However, index modification is not possible by digit designation.

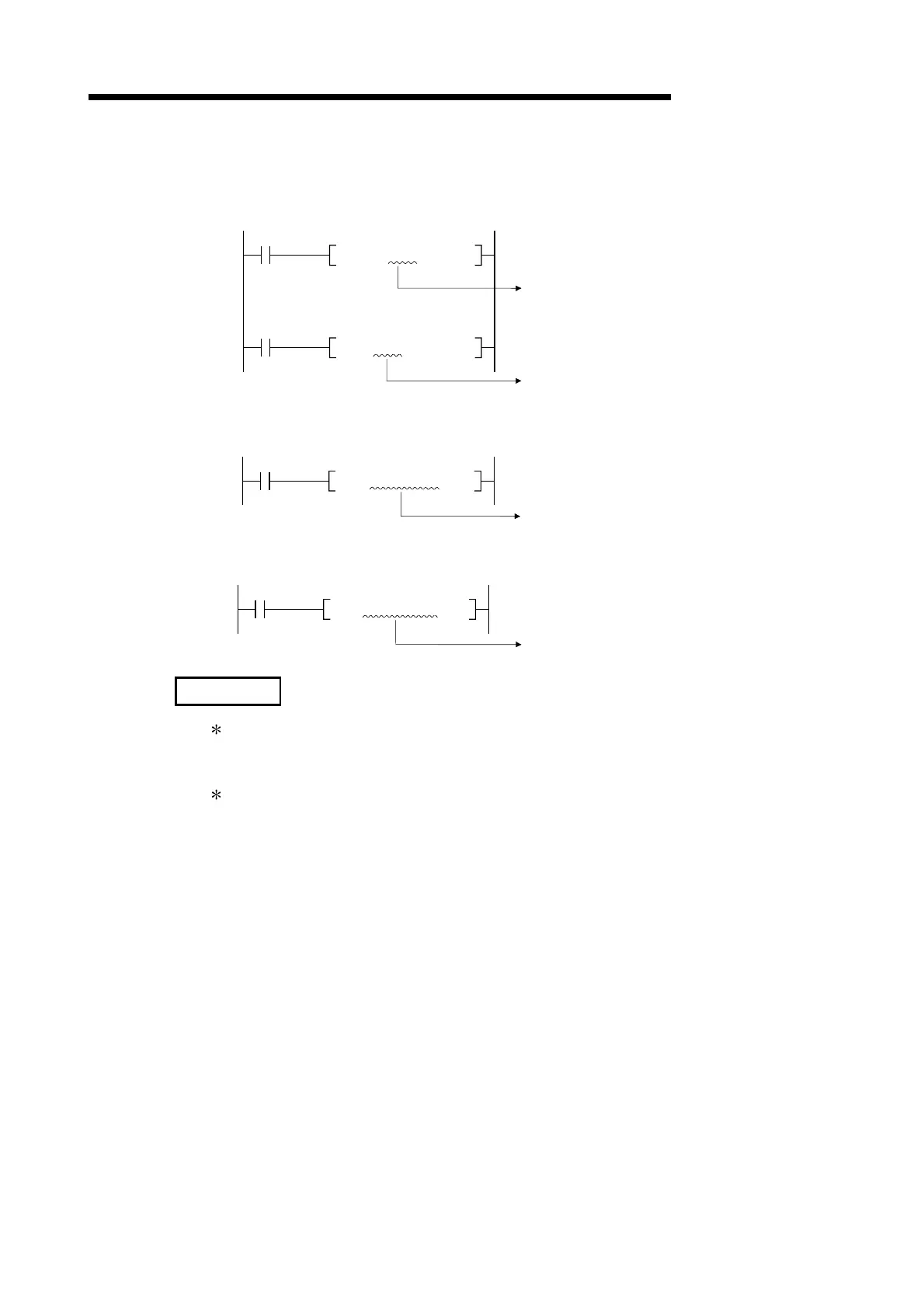

BIN K4Z3X0 D0
Setting that cannot enable
digit designation index
modification
BIN K4X0Z2 D0
Setting that enables device
number index modification
If Z2 = 3, then X (0+3) = X3.
2) Both I/O numbers and buffer memories can be index modified with special function
module devices.
MOV U10Z1\G0Z2 D0
If Z1 = 2 and Z2 = 8, then
U (10+2)\G (0+8) = U12\G8.
3) Both network numbers and device numbers can be index modified with link direct
devices.
MOV J1Z1\K4X0Z2 D0
If Z1 = 2 and Z2 = 8, then
J (1+2)\K4X (0+8) = J3\K4X8.
REMARKS
1) 1: Refer to the User's Manual (Functions Explanation, Programming Fundamentals) of the
used CPU module or QnACPU Programming Manual (Fundamentals) for special
function module device.
2)
2: Refer to the User's Manual (Functions Explanation, Programming Fundamentals) of the
used CPU module or QnACPU Programming Manual (Fundamentals) for link direct
devices.
