8-102
STARTING SYSTEM-Starter
Motor
lEL116
lEL66
Brush holder

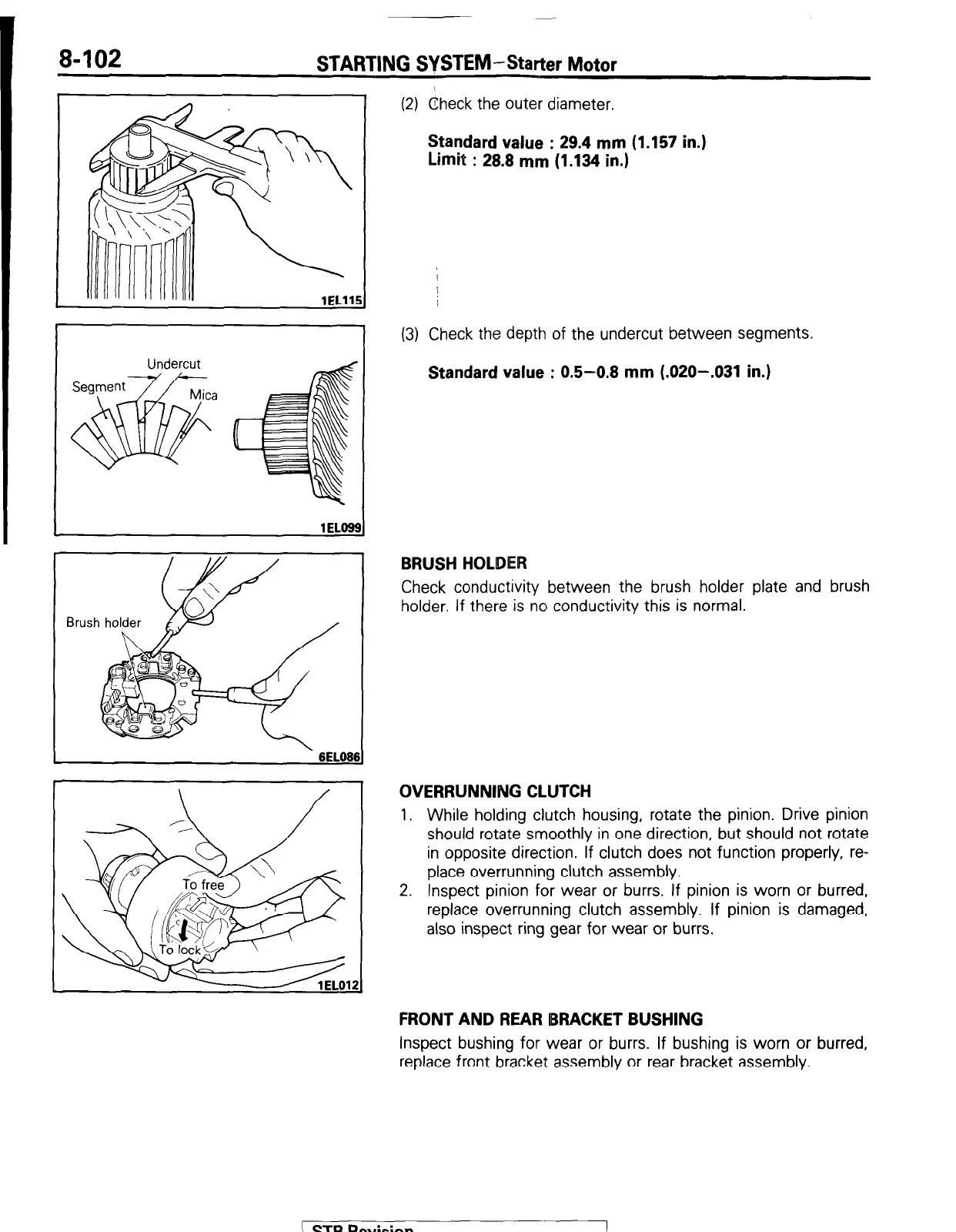

(2) Check the outer diameter.
Standard value : 29.4 mm (1.157 in.)
Limit : 28.8 mm (1.134 in.)
(3) Check the depth of the undercut between segments.
Standard value : 0.5-0.8 mm (.020-.031 in.)
BRUSH HOLDER
Check conductivity between the brush holder plate and brush
holder. If there is no conductivity this is normal.
OVERRUNNING CLUTCH
1. While holding clutch housing, rotate the pinion. Drive pinion
should rotate smoothly in one direction, but should not rotate
in opposite direction. If clutch does not function properly, re-
place overrunning clutch assembly.
2. Inspect pinion for wear or burrs. If pinion is worn or burred,
replace overrunning clutch assembly. If pinion is damaged,
also inspect ring gear for wear or burrs.
FRONT AND REAR IBRACKET BUSHING
Inspect bushing for wear or burrs. If bushing is worn or burred,
replace front bracket assembly or rear bracket assembly.
1 STB Revision
