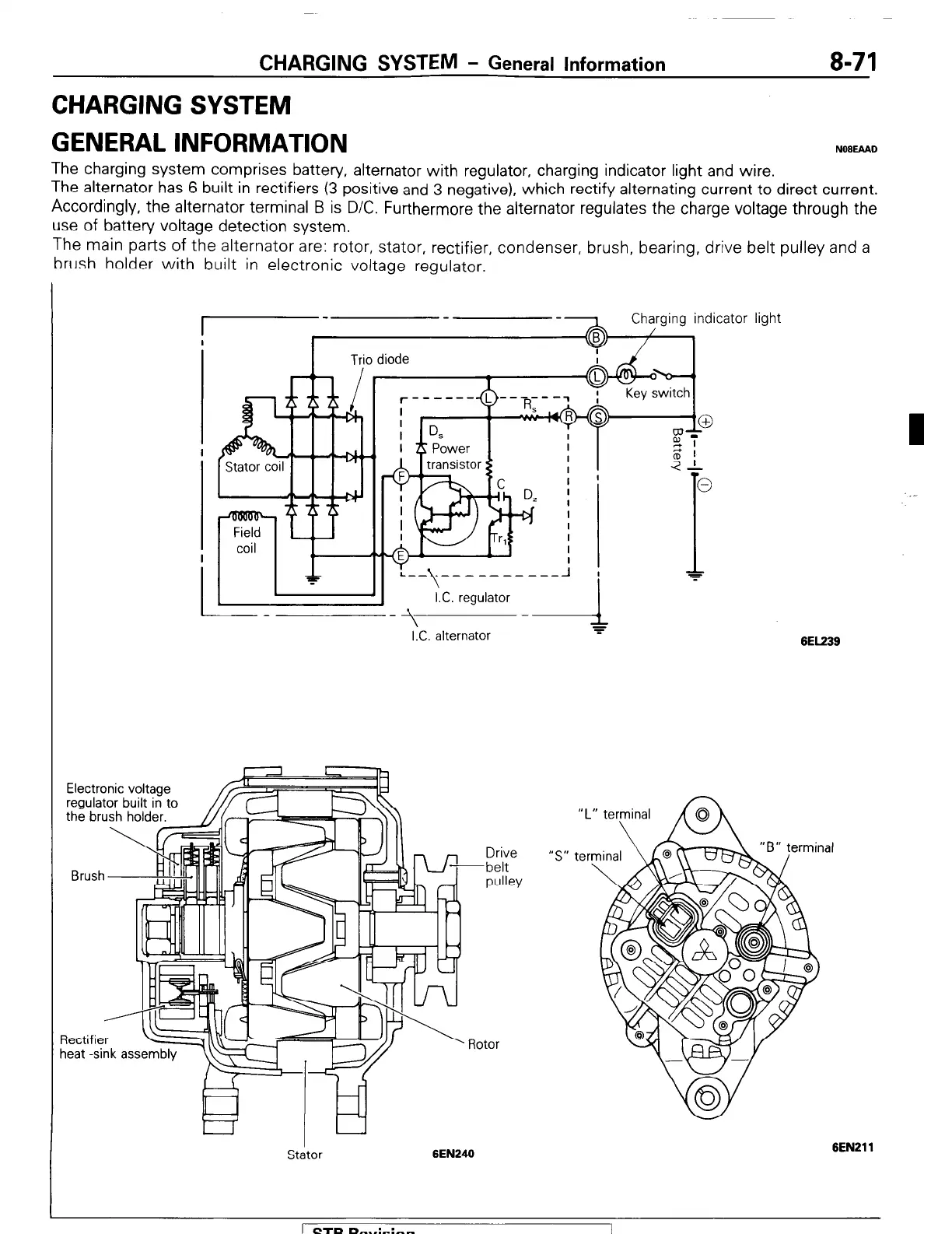

CHARGING SYSTEM
- General Information
8-71
CHARGING SYSTEM
GENERAL INFORMATION
NOBEMD
The charging system comprises battery, alternator with regulator, charging indicator light and wire.
The alternator has 6 built in rectifiers (3 positive and 3 negative), which rectify alternating current to direct current.
Accordingly, the alternator terminal B is D/C. Furthermore the alternator regulates the charge voltage through the
use of battery voltage detection system.
The main parts of the alternator are: rotor, stator, rectifier, condenser, brush, bearing, drive belt pulley and a
brush holder with built in electronic voltage regulator.
:--\;-----------I ;
I.C.
regulator
I
-A
I.C.
alternator
-y
Brush
heat -sink assembly
Drive
-belt
pulley
Rotor
light
6EL239
Stator
6EN246
6EN211
