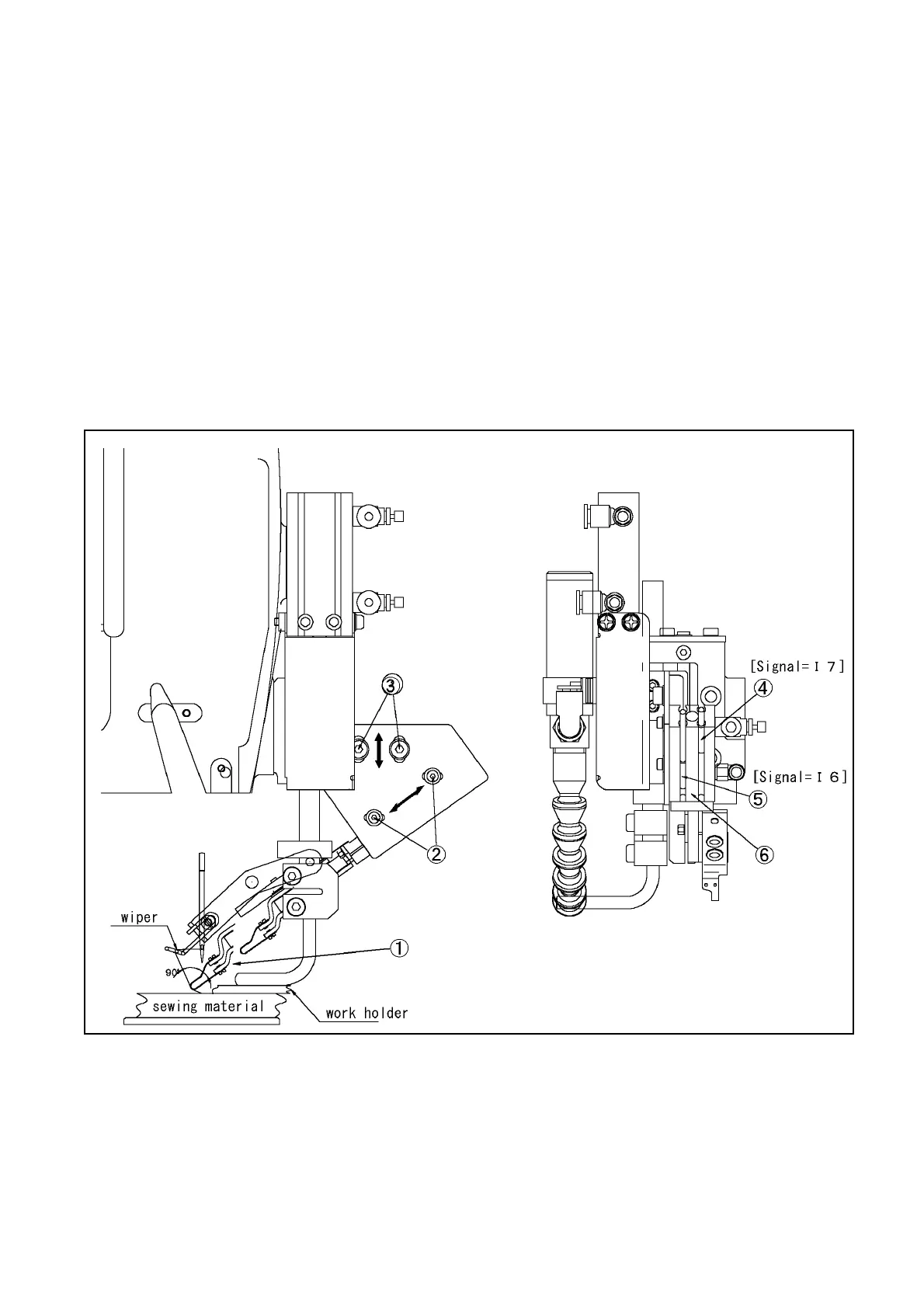

7-9-4 Adjustment of the upper thread heater
The upper heater must be an angle of approx. 90°to the thread positioned by the thread
wiper.
The fully extended heater must have a clearance of approx. 1 mm to the clamped material.
The fully extended heater must touch on the thread positioned by the thread wiper with a
slight pressure.
To adjust the position of the upper thread heater
(1) Extend the heater (NO.) manually.
(2) Loosen the screws (NO.) and the screws (NO.).
(3) Adjust the heater vertically and horizontally.
(4) tighten the screws (NO.and )and the screws.
(5) After this adjustment, check the sensor I7(NO.) of the heater cylinder (NO.) should be
ON and the sensor I6(NO.) should be OFF at the normal position.
33
