7-17 Adjustment of the X-Y timing belt tension
[NOTE] The proper condition of the X-Y timing belt tension is standing that they will not
be got any yield even it is slightly pushed by hand.

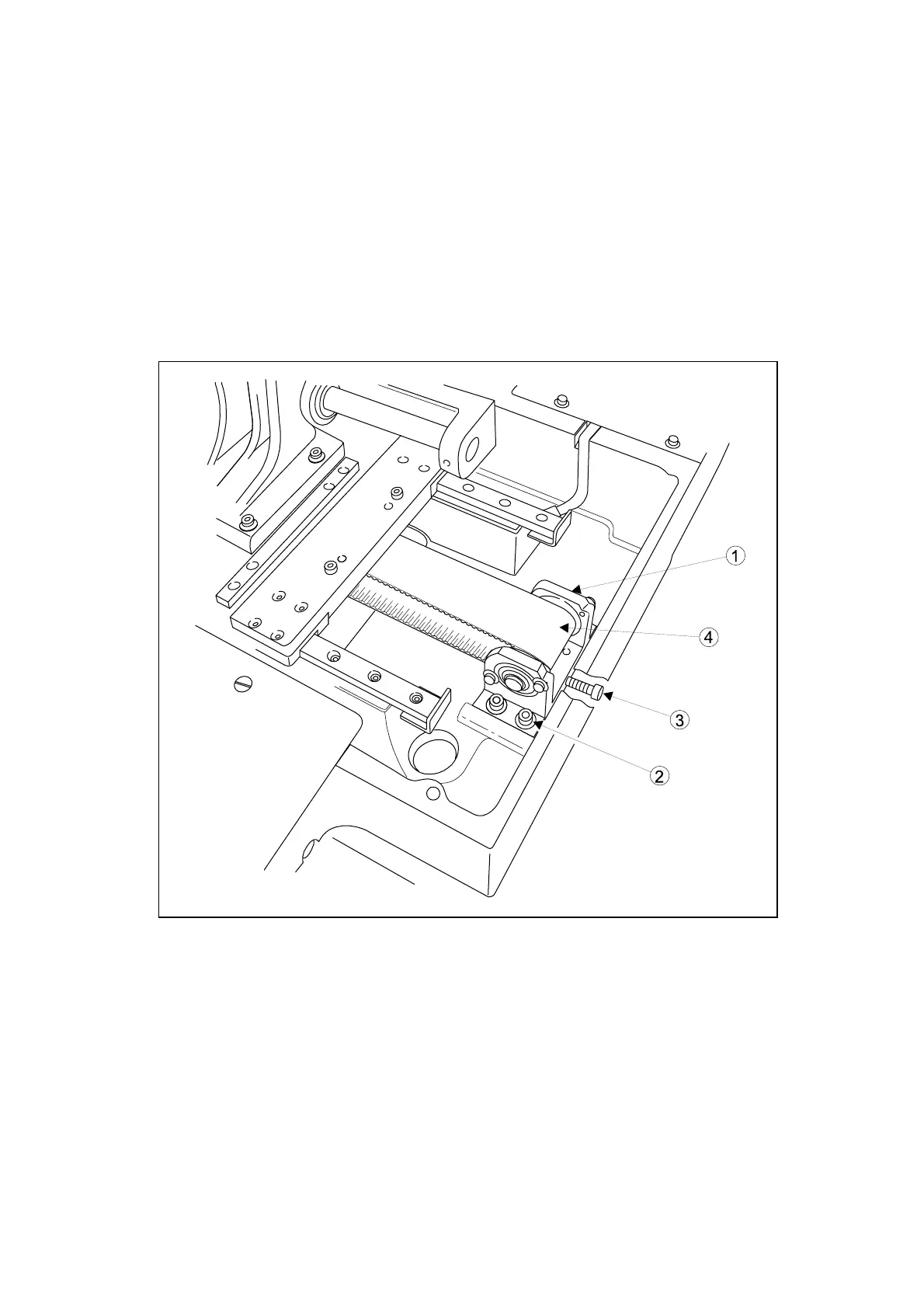

7-17-1 Adjustment of the X timing belt tension
(1) Remove the X-bellow (left) and X-Y cover.
(2) Loosen the set screws (NO.)(4 pieces) of the bracket (NO.).
(3) If tighten the tension adjust screw (NO.), the X timing belt (NO.) tension will be
increased.
(4) After the adjustment, securely tighten the set screw (NO.) of the bracket (NO.) and put
the X-Y cover and X-bellows on the original locations.
42
