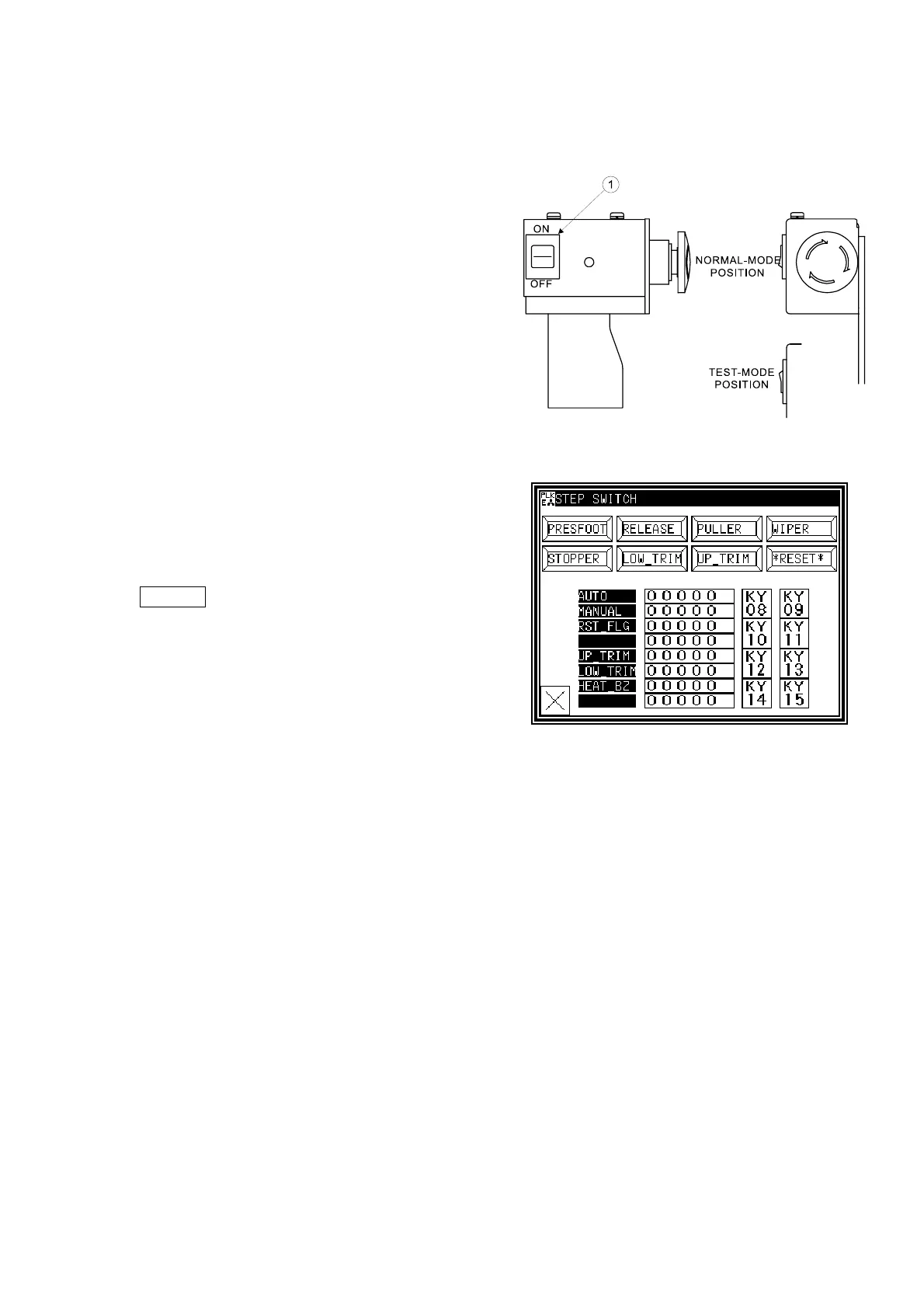

7-6 Test mode operation
7-6-1. Entrance for the test mode operation
The test mode operation is used for
adjustment of mechanical position (height or
stroke) for the thermal thread trimmer
equipment and also for check the position of
the sensors of the cylinders. For entrance this
mode,
(1) Turn the power switch ON.
(2)
Set the changeover switch (
NO.
) to
Manual (test mode).
(3)
The operation panel screen will
change to the Manual (test mode)
screen.
Even when the changeover switch (
NO.
) is already set to Manual (test mode)
when the power switch is turned ON, the Manual (test mode) screen will open.
NOTE
Out / In signal can be checked by
checking mode in the operation
panel. Please refer to IN/OUT Setting
Mode in the technical manual
[OPERATION PANEL]
26
To Next Page
